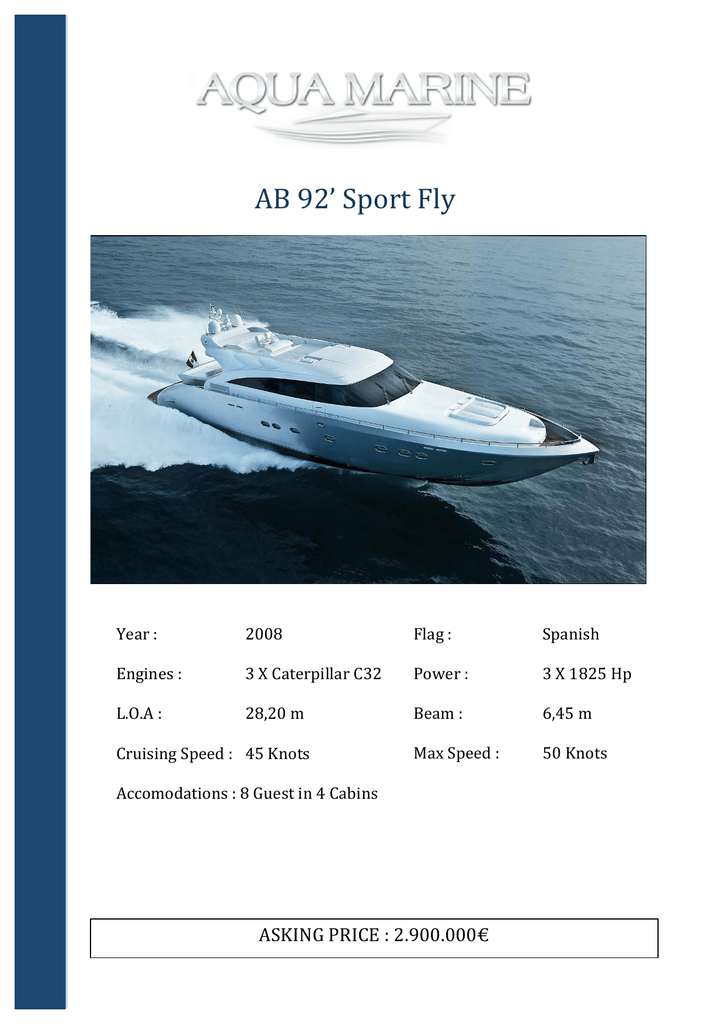

AB 92` Sport Fly

AB 92’ Sport Fly Year : 2008 Engines : 3 X Caterpillar C32 L.O.A : 28,20 m Cruising Speed : 45 Knots Accomodations : 8 Guest in 4 Cabins Flag : Power : Beam : Max Speed : ASKING PRICE : 2.900.000€ Spanish 3 X 1825 Hp 6,45 m 50 Knots MAIN CHARACTERISTICS
Builder
Length Overall
Beam
Draft
Cruising Speed
Maximum Speed
Consumption
Range
Full Displacement
Fuel capacity
Water capacity
AB YACHTS (FIPA GROUP)
28.20 meters (92ft.6in.)
6.45 meters (21ft.2in.)
1.20 meters (3ft.11in.)
45 knots
50 knots
600 liters per hour at economical speed of 35 knots
600+ NM at speeds between 35 and 40 knots (2000-2100 RPM)
64 tonnes (141 000 lbs)
11 000 liters (2906 US gallons)
1500 liters (396 US gallons)
CONSTRUCTION
Hull
Superstructure
Homologation Class
GRP with Kevlar reinforcements and Divinycell coring, vacuum
bagged and laminated with Vinylester-Epoxy resins
GRP with Kevlar and Carbon reinforcements and Divinycell
coring, vacuum bagged and laminated with Vinylester-Epoxy
resins
CE “A” category, class certificate 100-A-1.1-Y Malta Cross
ACCOMMODATION
Master Cabin
VIP Cabin
Guest cabins
Crew Quarters
Wood and finishing
Fabrics
1 double cabin with en-suite bathroom and walk-in closet located
amidships
1 double cabin with en-suite bathroom located forward
2 twin cabins (port and starboard) with en-suite bathroom each
2 bunk bed cabins for 4 crew located at the bow and sharing one
bathroom. Laundry area, small crew mess and separate exit to
outside deck
Natural Oak and Wengé
Leather and Ultraleather
MACHINERY
Engines
Gearboxes
Propulsion
Generators
Bow Thruster
Stern Thruster
3rd Control Position
Engine hours
Generator Hours
Air Conditioning
3 x CATERPILLAR C32 ACERT @ 1825hp. each
3 x ZF MARINE 3050
2 x MJP 450 CSU + 1 x MJP 450 fixed central booster
2 x ONAN @ 22.5 kW each
Hydraulic 25hp.
No (joystick control for manoeuvring)
Yacht Controller portable docking station
815 (November 2013)
1200 (November 2013)
CONDARIA reverse cycle with 3 units (140 000 BTU)
Saint-­‐Jean Cap ferrat Beaulieu-­‐sur-­‐Mer Moscow Jensen Beach (FL) W arszaw Benjamin Bensahel [email protected] +33.6.48.76.37.23 Watermaker
Trim System
IDROMAR MC3J 180 liters/hour (138 hours)
HUMPHREE Interceptors
NAVIGATION EQUIPMENT
Display
Autopilot
GPS
Echo Sounder
Antenna SAT TV
VHF
Radar
Radar
Weather Station
Navtex
Satcom
5 x HATTELAND 20” screens
SIMRAD AP50 with QS50 quick stick control and JS10 tiller
SIMRAD GPS GS10 + backup
SIMRAD B117
SEATEL C24
SAILOR DSC VHF RT5022 + SIMRAD RS87 VHF
SIMRAD 6kW
SIMRAD 2kW
AIRMAR PB 100
FURUNO NX-300
SAILOR TT3000E Inmarsat with TT-3606E messaging board
ENTERTAINMENT EQUIPMENT
Saloon
Master Cabin
VIP Cabin
Twin Guest Cabins
Crew Cabins
Additional
42” PANASONIC Viera TV with up/down mechanism
SEATEL satellite antenna control panel
8 x BOSE surround sound speakers + woofer
DENON iPod docking station
32” SHARP Aquous TV
MVISION digital satellite decoder
NAD L54 CD/DVD player
2 x BOSE speakers
iPod docking station
21” SHARP Aquous TV
MVISION digital satellite decoder
SONY MEX-DV1000 CD/DVD player
2 x SONY speakers
19” SHARP Aquous TV
MVISION digital satellite decoder
SONY MEX-DV1000 CD/DVD player
2 x SONY speakers
11” PHILIPS TV
MVISION digital satellite decoder
SONY MEX-DV1000 CD/DVD player
2 x SONY speakers
21” SHARP Aquous TV in galley/crew mess
FUSION MS-IP600 iPod dock and music manager
SONY speakers on aft deck, foredeck and flybridge
Saint-­‐Jean Cap ferrat Beaulieu-­‐sur-­‐Mer Moscow Jensen Beach (FL) W arszaw Benjamin Bensahel [email protected] +33.6.48.76.37.23 GALLEY EQUIPMENT
Cooktop
Refrigerator
Dishwasher
Owen
Microwave
Fan extractor
Sink
Icemaker
Washer/Dryer
Additional
MIELE vitro-ceramic with 4 burners
GAGGENAU US-style with freezer and icemaker
MIELE Optima SC
MIELE
MIELE
MIELE
Double stainless steel
U-LINE located in saloon
HOOVER HNWS 6125 combined with 5kg capacity
2 x stainless refrigerated compartments in saloon
1 x stainless refrigerated compartment on flybridge
Additional refrigerator in crew quarters
VITRIFRIGO 38-liter refrigerator in master cabin
DECK EQUIPMENT
Anchor
Anchor Winch
Mooring Capstans
Cockpit
Bathing Platform
Gangway
Bathing Ladder
80kg Bruce anchor with 100m of galvanized chain
1 x LOFRANS Vertical Ercole 2000W
2 x LOFRANS 1500W
Teak
Teak
PINCRAFT hydraulic
Hydraulic
SAFETY + SECURITY EQUIPMENT
EPIRB
SART
Portable VHF
Liferafts
CCTV System
SIMRAD
SIMRAD SA50
SIMRAD HT50 GMDSS unit + TC50 rapid charger
2 x ZODIAC (ZMEC6 TO EXTREM) SOLAS 6-person each
Yes, aft deck + engineroom
OTHER
Touch-screen domotic system with terminals on main helm, crew mess and engineroom
2 x FLOS Tribe lamps in saloon
2 x ARTEMIDE Tolomeo Micro bedside lamps in master and VIP cabins
2 x ARTEMIDE Tolomeo overhead lamps in twin guest cabins
Intercom system with BANG & OLUFSEN handsets throughout
Safe box in master cabin
3 x OPACMARE electrically adjustable leather helm seats
