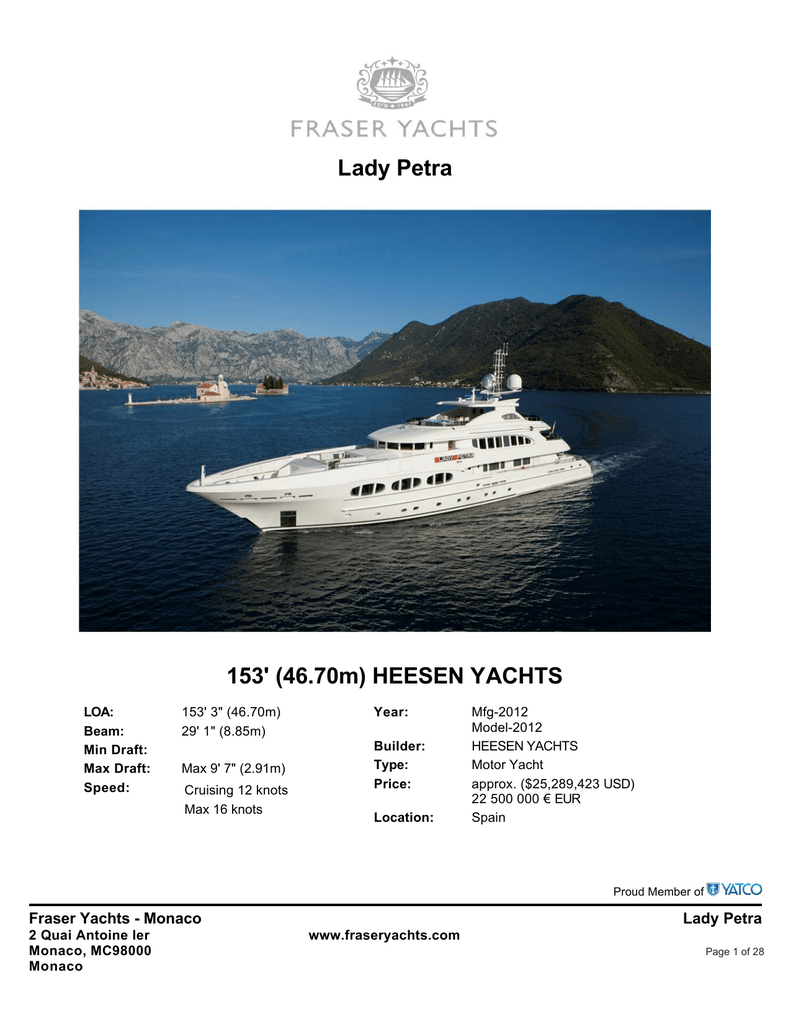

Lady Petra 153` HEESEN YACHTS

Lady Petra
153' (46.70m) HEESEN YACHTS
LOA:
Beam:
Min Draft:
Max Draft:
Speed:
153' 3" (46.70m)
29' 1" (8.85m)
Max 9' 7" (2.91m)
Cruising 12 knots
Max 16 knots
Year:
Builder:
Type:
Price:
Location:
Mfg-2012
Model-2012
HEESEN YACHTS
Motor Yacht
approx. ($25,289,423 USD)
22 500 000 € EUR
Spain
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 1 of 28
Additional Specifications For Lady Petra:
LOA:
Beam:
Min Draft:
Max Draft:
Hull Material:
Hull Config:
Hull Designer:
Deck Material:
Tonnage:
Range:
Int Designer:
153' 3" (46.70m)
29' 1" (8.85m)
Year:
Builder:
Model:
Type:
Top:
Speed:
9' 7" (2.91m)
Steel
Engines:
491
4,200 Miles
Bannenberg and Rowell
Design
Ext Designer:
Omega Architects
Fuel Capacity: 64,745 l (17,104 g)
Water Capacity: 20,974 l (5,541 g)
Holding Tank:
Flag:
Malta
Location:
Calvia, Spain
Price:
approx. ($25,289,423 USD)
22 500 000 € EUR
Mfg-2012 Model-2012
HEESEN YACHTS
Motor Yacht
Cruising 12 knots
Max 16 knots
1555 HP, Twin, Diesel, M70, MTU
2877hrs
Staterooms: 6
Sleeps:
12
Heads:
Crew
Quarters:
Crew Berths: 5
Captain Cabin: No
Classifications:Lloyd's
MCA: Yes
ISM: None
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 2 of 28
Detailed Specifications
MAIN CHARACTERISTICS
TYPE:
BUILDER:
NAVAL ARCHITECT:
DESIGNER:
INTERIOR DESIGNER:
YEAR:
FLAG:
CLASSIFICATION:
VAT:
LOA:
BEAM:
DRAFT:
HULL MATERIAL:
S / STRUCTURE:
ENGINES:
SPEED:
CONSUMPTION:
RANGE:
ACCOMMODATIONS:
Twin propeller, round bilge, displacement
Heesen
Heesen
Omega architects
Bannenberg and Rowell design
2012
Malta
Lloyds 100A1 SSC YACHT LMC
Large Commercial Yacht Code LY2 / MCA
Paid
46,70m / 153ft 2in
8,83m / 29ft
2,85m / 9ft 4in
Steel
Aluminium
2 x MTU 8V 4000 M70 (Diesel)
14.5 knots cruising
15.8 knots maximum @ 50% load
10 knots
160 lt/h
12 knots
220 lt/h
14 knots
400 lt/h
15 knots
900 lt/h
10 knots
4,200 nm
12 guests
6 staterooms
9 crew
5 cabins
YOUTUBE LINK:
DESCRIPTION
M/Y Lady Petra is an eye catching motor yacht of today’s generation. She is indeed a thoroughbred of
the full-displacement era, built by the famous Heesen Shipyard and widely regarded as a rare
challenge not only for architects but designers intent upon creating elegance, comfort and quality, by
bringing the epitome of the Heesen Yacht to life for the founder.
Featuring a bulbous bow and an optimized hull profile, she effortlessly glides through the water,
requiring less power and subsequently a lower fuel consumption to reach a cruising speed of 14
knots, thus offering a transatlantic range of 4,200 nautical miles at 10 knots. Furthermore, she boasts
one of the largest deck and interior volumes, comprising of some 240sqm over three decks, while
remaining under 500 Gross Tons.
Designed by Omega Architects for varied family use and entertainment, she features various
interchangeable deck configurations, alfresco dining areas, together with a giant Jacuzzi and wet
granite bar plus multiple all-weather sofas under awnings on the sun deck.
The interior was designed and styled by Bannenberg & Rowell whereby using full-height holepunched stainless steel plates, curved wedge and inlaid stainless steel panels together with brushed
spruce and bleached elm panelling line it creates a modern yet contemporary feel throughout. All
surfaces match up precisely with thin ribbons of tan and white leather that move across the interior at
sharp but perfectly parallel angles creating space and warmth.
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 3 of 28
The guest accommodates comprises of six well-appointed guest suites located throughout the TriDeck design, all benefiting from the creativeness of a soft and sumptuous décor and natural light.
With a V.I.P suite on the main deck, plus two double staterooms and two twin staterooms with
additional Pullmans berths and a vast owners suite, M/Y Lady Petra is capable of accommodating the
largest of families with ease. Alternatively there is a formidable cinema and media room, plus a main
salon and expansive dining room suitable for up to 10 guests.
Panoramic views can be enjoyed from the vast luxurious master suite or adjoining private terrace
which occupies a majority of the aft bridge deck and benefits from various sumptuous seating
arrangements. Aside from a king size bed facing aft, the stateroom benefits from an oversized walk-in
wardrobe, his & hers marble bathroom, steam shower featuring opaque back lighting, plus a secluded
and elegant breakfast room.
Integrated into the exterior superstructure is a custom built fully-automatic lift, enabling guests with
disabilities to gain access outside from the aft main deck to the sun deck. Alternatively an electric stair
climbing chair is featured internally (from aft bridge deck to main deck) and all corridors and door
frames are extra wide, making her wheelchair friendly.
The tender garage accommodates a 6.50 meter Custom Line Novurania (featuring a folding console
due to the height restriction of 140 centimetres) plus a three person Yamaha jet ski, all of which can
be launched within three minutes. Also located in the garage is an assortment of inflatable toys and
dive compressor featuring a full complement of dive equipment. Once cleared the tender garage and
transom door can be transformed into a beach club for the family or a safe bathing platform for
children of all ages to play within.
CAPACITIES
Fuel:
Day Tank:
Lube Oil:
Waste Oil:
Sludge:
Water:
Black Water:
Grey Water:
Water Maker:
Gross Tonnage:
Net Tonnage:
Displacement (50% Load):
64.745 litres
1,805 litres
532 litres
1023 litres
299 litres
20.974 litres
1.902 litres
3.179 litres
12.000 litres/day
491 tons
147 tons
400 tons
17.103 US gallons
476.83 US gallons
140.54 US gallons
270.24 US gallons
78.98 US gallons
5.540 US gallons
0.502 US gallons
0.839 US gallons
3.170 US gallons/day
PROPULSION DETAILS
Generators:
Stabilisers:
Max Power:
Gearbox:
Engine Control:
Propellers:
Bow Thruster:
Steering System:
Stabilisers:
2 x Kilo-Pak (99 Kw)
Port: 8,870 hrs (August 2016)
Starboard: 8,701 hrs (August 2016)
VT Naiad, type 621
2 x 1.160kW
2 x ZF 4661
MTU Blue Vision
Schaffran five blade fixed pitch Ø 1.600 mm
HRP / 1001TT (90kW) hydraulic output
Sperry Marine Systems
Naiad Dynamics, type 621
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 4 of 28
CONSTRUCTION
Hull:
Superstructure:
Bottom Forward:
Bottom Aft:
Shell:
Chine:
Steel
Aluminium
7mm
8 and 10mm
6mm
10mm
Outer Bulwark:
Inner Bulwark:
Transom:
Deck plate inside superstructure:
Deck plate outside superstructure:
Center Line Girder:
Docking Keel:
5mm
4mm
6 & 7mm
4mm
5mm
6mm
7 & 12mm
MECHANICAL EQUIPMENT
Main Engines:
Engine Hours:
Gearboxes:
Shafts:
Propellers:
Flexible Mountings:
Elastic Coupling:
Exhaust Lines:
Control Mains Engines:
Engine Monitoring System:
Engine Room Ventilation:
2 x MTU 8V 4000 M70 2 x 1.160 kW/1555hp
Port: 2,790 (August 2016)
Stbd: 2,793 (August 2016)
ZF-model 4661 Ratio 3 .074:1
Stainless Steel AISI 1.4057 (Diameter
145mm)
SCHAFFRAN-5 Fixed Blade (Diameter 1,600mm)
Main Engine-Gearboxes - Generators (all pumps)
Auxiliary machinery & rotating machinery
Between engine & gearbox
Water cooled exhaust pipes (Stainless Steel pipes,
Composite, Rubber compensators) bypass through
transom
Bridge - (2) wing stations (Blue Vision screen in
engine room)
MTU BLUE VISION
(2) Fans SAILOR HU80 (Each 25.000m3/hour)
reversible & variable speed
OTHER MACHINERY
Stabilisers:
Bow Thruster:
Steering System:
Steering Control Stations:
Backup Emergency Steering:
Fuel Tanks:
Fuel Separator:
Fuel Transfer Pump:
NAIAD DYNAMICS Model 720, stabilisation at anchor
HRP Tunnel Thruster 1001TTALU (90Kw) Hydraulic
Motor
REXROTH
NORTHROP GRUMMAN / SPERRY MARINE
(1) Bridge & (2) Wing Stations
Garage located including rudder indicator & intercom
(5) Double bottom tanks
WESTFALIA -Type OTC 2-02-137 (400 Volt, 3 phase)
1,150lt/hr
STERLING/SIHI 24 Volt DC electric pump 6,500lt/hr
STERLING/SIHI ­400 Volt – 3 phases Fuel
lines Electric fuel counter
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 5 of 28
Fuel Filters:
Bilge Water Separator:
Bilge Floating System:
Sewage Treatment System:
Fresh Water System:
Water Makers:
Fresh Water Softener:
UV Sterilizer:
Jacuzzi:
Deck Wash Pump:
(4) RACOR filters per engine
(2) RACOR filters per generators
Drip trays under filters and pumps
Electric level indicators with read out through
ships LAN
(1) RWO capacity 500lt/hr - 400VAC (50Hz)
(17) Kubler
(1) HAMANN-MINIFRAME sewage treatment system
Capacity 5,400ltr/day (IMO approved)
(2) JETS pump vacuum system servicing (13) toilet
bowls
(6) showers & wash basins to grey water system
(1) Electric hydrophore – LOWARA
(3) Pumps – LOWARA HYDROVAR
(2) Electric boilers (200 L) NIBE ELK 213
(2) WILO Z25 50W hot & cold water circulation pump
(2) IDROMAR ML55/1600 (3371 & 3370 Hrs August
2016) reverse osmosis desalination systems Type
modular version (capacity 12,000lt/day
(8 membranes)
IDROMAR IDROFAST 9100
IDROMAR SH 8000 UV - IDROMAR Silverion Dosing
Sterilizer
Capacity 2,000lt (filling pump 100lt/min) heats in
25min
One dedicated pump (various hose connections
around decks)
FIRE FIGHTING SYSTEM & ALARMS
Bilge and Fire Fighting System:
Hydrants Outlets:
Engine Room:
Dry Pipe Sprinkler:
Co2 Bottle & Nozzle:
Extinguishers:
Compressed Air System:
Air Conditioning:
(1) STERLING/SIHI self-priming bilge pump 400V
Capacity 15,000lt/hr
(1) STERLING/SIHI Electric self-priming firefighting
pump 400V Capacity 15,000lt/hrs @ 30m head
(1) YANMAR diesel driven self-priming bilge/firefight
pump
(1) Engine Room
(1) Garage & Fixed Spray Nozzle System
(1) Foredeck
(3) Main Deck
(2) Bridge Deck
(1) Sun Deck
NOVEC 1230 gas nozzle spayed
(1) Garage tender & (1) Bosons locker
(1) Extracting Ducting & (1) Galley Hood
(45) including galley, engine room & tender garage
(4) Firemen outfit with breathing apparatus
ATLAS COPCO Compressor LE 22-10 150lt/min
(max pressure 6.9 bar - 1.5Kw)
HEINEN & HOPMAN - HH SALOR (Chilled Water
System)
Child water unit
Chilled water pumps
Seawater pumps
(39) Fan coil units Cooling capacity 672K BTU
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 6 of 28
Fridge/Freezer Compressors:
Fresh Air System:
(4) Fridge & (5) Freezer
SALOR T2 ROI­225 – 65kW (25m3/hour per person)
HYDRAULIC SYSTEMS
All hydraulics apart from the davit on the bow run on hydraulic oil supplied from a central closed loop
reservoir in the engine room, this reservoir has an integrated oil cooling system.
There are two Rotor 22Kw electric motors that supply oil to the stabilisers.
There is one Rotor 7.5Kw electric motor that supplies oil to the Hydraulic auxiliaries, stern door, side
boarding ladder, aft boarding ladder, & hydraulic winches.
There are two PTO’s One off each main engine gearbox they run the 90Kw bow thruster.
The davit on the bow is for the emergency tender (ZODIAC) and is completely stand alone, running off
220V supplied from the boat or 24V Battery.
ELECTRICAL SYSTEMS
Generators:
Type:
Generators Engine:
Generator:
Generators Hours:
Generators Paralleling:
Outgoing Circuits:
Frequency Converter:
Battery Charger:
Starting Batteries:
Service Battery Set:
Emergency Batteries:
(2) KILOPAK MARINE 99 kW
60685FM75-(50Hz) 3 phase 230/400 Volts (1500
rpm)
Consumption 300L/day
John Deer Turbocharged
(4 Stroke - 6 cylinders)
Heavy duty air intake
1500 rpm (50Hz) 3 phase volt + 1.5% 99Kw (0.8
Power
Factor/400Volts)
Port: 8870 hrs (August 2016)
Starboard: 8701 hrs (August 2016)
(1) DEIFF automatic synchronization & load
sharing system.
Circuit Breakers MERLIN GERIN
MARPOWER SPC-II 120 Interface Module IM2H
EXENDIS - PCM30 - kW (4) (Input) 2 phase
170-520 volt (3 phase) 40-70Hz
(1) Mastervolt ­ Type 24/75A – capacity 24VDC­75A
(1) Mastervolt ­ Type 24/25A – capacity 24 VDC­25A
(1) Mastervolt ­ Type 24/50A – capacity 24VDC­50A
(1) Mastervolt ­ Type 24/15A – capacity 24VDC­15A
(2) OPTIMA 24V-100Ah, Type 850S gel Total
(8) Batteries 12VDC-50Ah (in the engine room)
(1) SONNESCHEIN 24V-600Ah (GEL)
Navigation Lights
& 24VDC lighting
(6) Batteries of 12VDC-200Ah (located in the engine
room)
(1) SONNESCHEIN 24V-400Ah (GEL) radio/emergency
service
(4) Batteries of 12 VDC-200Ah (located under
foredeck
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 7 of 28
sun pad)
GMDSS Battery Set:
(1) SONNESCHEIN 24V-55Ah (GEL) -Total 2 batteries
of
12VDC-55Ah (located in Bridge)
(1) Shore antenna connection – MARINCO
TV97
(2) Shore telephone connection – MARINCO
PH6595
(1) Shore fax connection – MARINCO
PH6595
(2) 3­Phase shore connection 180 –
540V/50/60Hz
100A –MARINCO
(2) 150 Amp shore cable 40mt (male &
female plug) –
MARINCO
(2) Shore receiver connecting cable – Telephone –
30mt
(1) Shore receiver connecting cable ­ TV – 30mt
(1) RAL 9010 (control room)
Shore Connection/Supply:
Shore Receiver:
Switch Board:
NAVIGATION AND COMMUNICATION EQUIPMENT
COMMUNICATION
Antenna System:
PABX Intercom System:
Telephones:
IMMARSAT:
VSAT:
SATCOM-F33:
VHF:
VHF:
(1) Antenna for FM/AMTV – NAVAL – Type
Mark 22CA
(1) PANASONIC central unit KXTDA-30 (24 station &
2 outside lines)
(1) PANASONIC touch phone – KXT 7633 SPB
(Bridge)
(1) PANASONIC single line – LCD­HF black – (control
room)
(1) Headset Bluetooth (engine room)
(1) Patch panel for 24 jacks
(26) Telephone connection boxes – TICINO
(1) Flashlight – Type Xenon 5W red – (engine room)
(2) Outer lines – Shore telephone
(1) Outer line – Sat.Com.
(2) Outer lines – V­SAT VOIP
(1) Outer line – V­SAT fax over IP
(1) Outer line – shore fax
(1) Outer line – cellular phone
(9) Siemens wireless phone
(1) IMMARSAT- C Fleet broadband Thrane &
Thrane/SAILOR
(1) SEATEL 4006 COBHAM internet satellite solution
(1) IMMARSAT-F Terminal - Thrane &
Thrane (Type F-33)
(2) ICON portable VHF M71
(1) ICON GMDSS 651 & (1) ICON M411
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 8 of 28
NAVIGATION
Display Screens:
MPA Monitoring System:
Vessel Software Management:
Radar:
AIS:
GPS:
Gyrocompass:
Compass:
Autopilot:
Navtex:
Depth/Log/Wind/temp Pack:
Speed Log:
Video Sounder:
Chart Software:
Computer:
Search Lights:
Horn:
(5) HATTELAND interfaced flat touch screen
TIJSSEN Elektro
TRITON
(2) FURUNO RCV-014 96Nm range
(1) SAAB R4
(2) SAAB R4 Dual
(1) SPERRY MARINE
(1) C.PLATH
(1) SPERRY MARINE Navipilot 4000
(1) FURUNO – Type receiver NX­700 24 VDC
(1) GARMIN GM1 10
(1) FURUNO DS-80 Doppler
(1) FURUNO FE 700
(1) TRANSAS electronic
NS-3000/ PENTIUM 300 MHz, 64 Mb RAM, 2Mb
VRAM hard disk minimal 1.2 GB, Windows NT v.4 SP 3
(1) ACR SERACHLIGHT
(1) KAHLENBERG M-511 C/D
GALLEY & LAUNDRY EQUIPMENT
Galley Appliances:
Combined Galley/Pantry:
Owner’s Breakfast Room:
Laundry:
Upper Pantry:
Exterior sun deck:
Tender Garage:
(1) MIELE steam oven DG 4064
(1) MIELE microwave MW 6005
(2) GAGGENAU induction cooktop (4 zones)
(1) GAGGENAU induction cooktop (2 zones)
(1) GAGGENAU oven
(1) GAGGENAU deep fat fryer
(1) MIELE dishwasher G7856
(2) FOSTER Gastro refrigerator 600 litres
(compressor in engine room)
(2) FOSTER Gastro freezer 600 litres
(compressor in engine room)
(2) MIELE Plate warmer, sliding EGW 406029
(1) Double sink with (1) ISE in-sinkerator
(1) EUROCAVE Wine cooler, 167 bottles, S 259
(1) MIELE dishwasher G7856
(1) FRIGONAUTICA Refrigerator FRS 80 RC
(1) FRIGONAUTICA refrigerator FRS 80 RC
(2) MIELE washer PW 6065 plus
(2) MIELE dryer PT 7136 plus
(1) MIELE iron machine B890
(1) FRIGONAUTICA refrigerator FRS 80 RC
(1) HOSHIZAKI icemaker IM 30CLE25
(1) Small Sink
(1) FRIGONAUTICA refrigerator FRS 80 RC
(1) HOSHIZAKI icemaker IM 30 WLE 25
(1) GAGGENAU Teppanyaki/BBQ VP 421111
(1) Small Sink
(1) LIEBHERR Freezer GG 4360
(2) FOSTER Fridge/Freezer
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 9 of 28
Crew Mess:
Garbage Store:
(1) EUROCAVE Wine cooler, 167 bottles, S 259
(2) FOSTER refrigerator HR 150
(1) FOSTER Gastro Freezer
(1) MIELE Microwave M 8261
(1) MIELE Dishwasher HG-04
(1) Large Sink
(1) FOSTER Garbage Freezer (tender garage) 600
litres Garbage
AUDIO AND VISUAL EQUIPMENT
Entertainment system developed by van Berge Henegouwen, the audio-visual is centralized with
KALEIDESCAPE music and video on demand (400 movies & music albums). The CRESTON
controlled system is integrated with I-Pods with controls and I-Pods docking station in every
staterooms and all exterior decks. Surround sound system throughout.
Antenna & Receivers:
Lower Deck Guest Staterooms:
Crew Mess:
Laundry:
Crew Cabins:
Main Deck Main Salon:
Dining Area:
Aft Main Deck:
(1) SEATEL 4004 Satellite TV reception
(1) SEATEL 4004 TV Antenna
(2) Central satellite reception & audio/video &
communication rack
(10) Digital satellite receivers (Dutch T.V )
(2) SKY boxes (crew only)
(4) 32” LCD TV screen
(3) I-Pod docking station
(4) Kaleidescape
(4) DVD player
(4) Creston control
(4) DENON Receiver AVR 3310
(4) PHONIC Amplifier
(20) Built in speaker
(4) Subwoofer
(1) I-Pod docking station
(1) 32" LCD TV
(1) DVD player
(1) Programmable Remote control
(1) Audio receiver
(2) Built in speaker
(1) Radio/CD player
(2) Built in speaker
(4) 15" LCD TV-combined DVD player
(1) 60"plasma (pop-up TV)
(1) I-Pod docking station
(1) Kaleidescape
(1) DVD player
(1) Creston control
(1) DENON Receiver AVR 3310
(1) PHONIC Amplifier
(5) Built in speaker
(1) Subwoofer
(1) Amplifier connected to salon
(2) Built in speaker
(1) I-Pod docking station
(1) Creston control
(1) Amplifier
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 10 of 28
(2) Built in speaker
Main Galley:
Owner's Stateroom:
Owner's Bathroom:
Owner's Breakfast Room:
Cinema/Media Room:
Bridge Aft Deck:
Captain’s Cabin:
Bridge:
Sundeck:
(1) Radio/CD player
(2) Built in speaker
(1) 43"LCD TV (pull-out & swivel)
(1) Creston control
(1) I-Pod docking station
(1) DENON Receiver AVR 3310
(1) PHONIC Amplifier
(1) Kaleidescape
(5) Built in speaker
(1) Subwoofer
(1) Amplifier connected to owner’s stateroom
(2) Kef built in speaker type Ci 130 Qr
(1) Amplifier connected to owner’s stateroom
(3) Built in speaker
(1) 65" LCD TV
(1) Kaleidescape
(1) I-Pod docking station
(1) DENON Receiver AVR 3310
(1) PHONIC Amplifier
(5) Built in speaker
(1) Subwoofer
(1) Amplifier
(2) Built in speaker
(1) Kaleidescape
(1) I-Pod docking station
(1) 22" LCD TV
(1) DVD player
(1) Kaleidoscope
(1) I-Pod docking station
(1) Receiver
(5) Built in speaker
(1) Radio/CD player
(1) Built in speaker
(1) I-Pod docking station
(6) Built in speaker
DECK & SAFETY EQUIPMENT
Windlass System:
Anchors:
Chains:
Aft Deck Capstans:
Crane:
Rescue Tender:
EPRIB & SART:
Life Rafts:
CCTV Cameras:
CCTV Monitors:
(2) STAALART CAS 23-19 ED Electric
(2) DANFORTH
(2) 5 x shackles (27.5m) – diam 19mm
(2) STAALART CAS 23-19 ED
(1) HYDROMAR 550 kg (independent battery
bank)
3.8mt ZODIAC - 25hp 2-stroke
(1) EPRIB & (2) SART
(4) ZODIAC ZMEC XTREM 12 pax SOLAS
Life Jackets
(27) SOLAS Inflatable + 4 child
(5) Gangway, Aft + Port/Starboard & Engine
room
Interfaced A/V system Crew Mess, Bridge &
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 11 of 28
Underwater Lights:
Side Boarding Ladders:
Swimming Ladder:
Main Deck Gangway:
Deck Awnings:
Wind Shade:
Engine room
(6) Sea Vision Metal Halide white under water
effect
(1) HYDROMAR Starboard (recessed in side
bulwark)
(1) MARQUIPT manual
Electric flush stow ladder (stainless & teak
ladder)
(1) HYDROMAR telescopic
(1) Aft Main Deck
(1) Aft Bridge Deck
(2) Forward Sun Deck
(2) Aft Sun Deck
(2) Port/Starboard side aft bridge deck
TENDERS AND TOYS
Main Tender:
Jet Ski:
Diving Equipment:
(1) 6.5mt Novurania RIB – Yanmar (inboard) ­
150HP – stern drive
(1) Yamaha Wave Runner FX-Cruiser SHO - 1450
cc
(1) BAUER Dive compressor (9.6Kw 400V –
10hp) + B.A Conversion
REFIT
WINTER 2013
Exterior
Replacement of Aft Bridge Deck Marble - Warranty
Haul out 13th-24th March at Other Angle - Toulon
Antifouling & Anodes
Lloyds Class Intermediate Surveys
Replacement of mains & generator bypass exhausts (Warranty)
Halyard replace BOS and connecting pipe works (Warranty)
Fresh Water Tank Inspection & Paint Touch-up Works (Warranty)
Flag (Malta) Inspection/Survey
Hull re-antifouled including all exhaust, inlet and outlet through-holes and main sea-chest
Props, shafts and bow thruster coated with Prop-Speed
Dry Docking Survey – completed by Lloyds
Interior
Carpet & single port side blind due for replacement in dining area (owners decision)
WINTER 2014-2015
Engineering projects
Renew the antifouling on the hull.
Repainting of freshwater tanks (3 tanks need spot repairs).
Opening up of the Hamman holding tank and remove rust build up.
Annual clean of grey and black water tanks
Preventive inspection of 1 fuel tank
Replace some piping on the generator exhaust
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 12 of 28
Inspection of all freezers and fridges
Main engines planned maintenance for 2000 hrs.
1 Generator will have the valves replaced and a new HP fuel pump installed.
The deck wheelchair will be serviced and adjusted for correct operation
The AC plant needs a frequency drive repair/replacement.
Deck projects:
Replacement of floor lights on the exterior
Repainting of several grills on deck
Various Safety Equipment annual inspections
Annual Radio survey and Gyro compass service
A small paint repair of the bow section
REMARKS
LY2 Commercial Certificate Malta approved (option to switch to Commercial Status if/when required
subject to appropriate safe manning certificate).
LADY PETRA is fully wheelchair friendly (ThyssenKrupp - Stair Lift Technical Data, more details
available under request):
General
Permissible weight 125 kg, 275 lbs
Driving speed (nominal) 0,1 m/s, 20 ft/min
Disclaimer
Any yachts offered are subject to still being available. Their particulars are believed correct, but their contents are not
guaranteed, neither may they be used for contractual purposes. All business is conducted in accordance with our Terms of
Business; copy available on request.
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 13 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 14 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 15 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 16 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 17 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 18 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 19 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 20 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 21 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 22 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 23 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 24 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 25 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 26 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 27 of 28
Proud Member of
Fraser Yachts - Monaco
2 Quai Antoine Ier
Monaco, MC98000
Monaco
Lady Petra
www.fraseryachts.com
Page 28 of 28
