STANOK AG, Postfach 3532, 6303 Zug, Schweiz
№1.
LA-042
1 St.
€

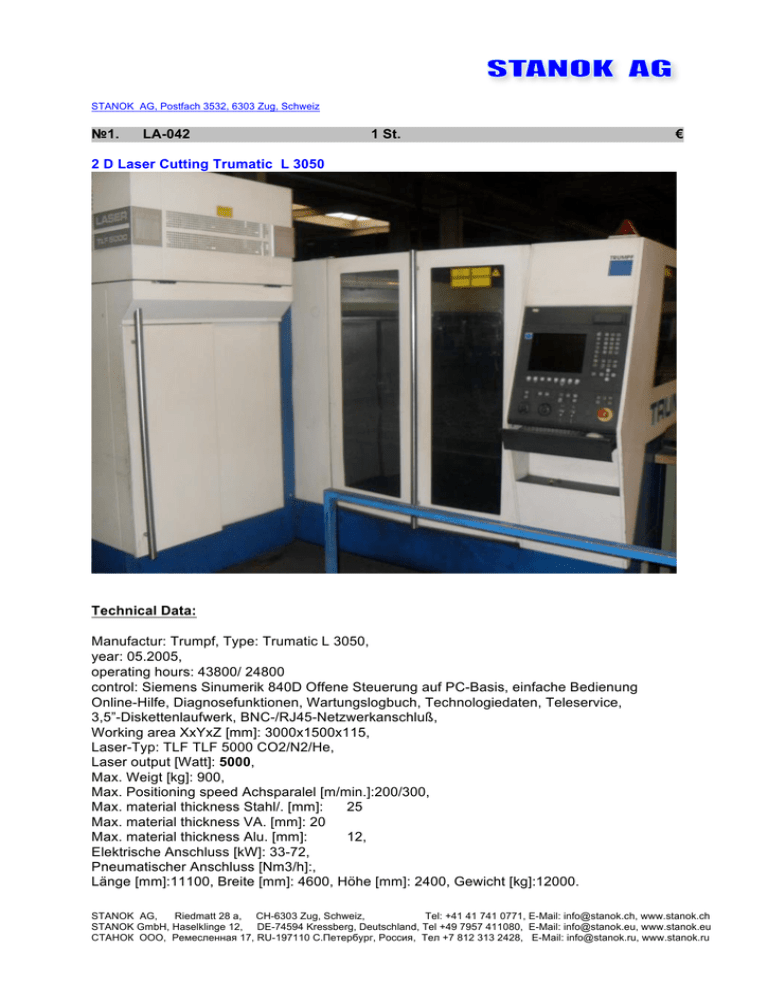

2 D Laser Cutting Trumatic L 3050
Technical Data:
Manufactur: Trumpf, Type: Trumatic L 3050,
year: 05.2005,
operating hours: 43800/ 24800
control: Siemens Sinumerik 840D Offene Steuerung auf PC-Basis, einfache Bedienung
Online-Hilfe, Diagnosefunktionen, Wartungslogbuch, Technologiedaten, Teleservice,
3,5”-Diskettenlaufwerk, BNC-/RJ45-Netzwerkanschluß,
Working area XxYxZ [mm]: 3000x1500x115,
Laser-Typ: TLF TLF 5000 CO2/N2/He,
Laser output [Watt]: 5000,
Max. Weigt [kg]: 900,
Max. Positioning speed Achsparalel [m/min.]:200/300,
Max. material thickness Stahl/. [mm]:
25
Max. material thickness VA. [mm]: 20
Max. material thickness Alu. [mm]:
12,
Elektrische Anschluss [kW]: 33-72,
Pneumatischer Anschluss [Nm3/h]:,
Länge [mm]:11100, Breite [mm]: 4600, Höhe [mm]: 2400, Gewicht [kg]:12000.
STANOK AG,
Riedmatt 28 a, CH-6303 Zug, Schweiz,
Tel: +41 41 741 0771, E-Mail: [email protected], www.stanok.ch
STANOK GmbH, Haselklinge 12, DE-74594 Kressberg, Deutschland, Tel +49 7957 411080, E-Mail: [email protected], www.stanok.eu
СТАНОК ООО, Ремесленная 17, RU-197110 С.Петербург, Россия, Тел +7 812 313 2428, E-Mail: [email protected], www.stanok.ru
STANOK AG, Postfach 3532, 6303 Zug, Schweiz
Standard equipment
- Closed machine frame with integrated laser unit
- CO2 lasers TLF5000, Radio-frequency excitation, cooler, Logbook function laser
- Automatic pallet changer
- Conveyor belt for small parts / slug
- Gantry drive in combination with direct linear drives
- Laser power control
- HI-LAS
- PMS (Plasma monitoring system)
- SprintLas
- ContourLas
- Programmable Power Cycles
- Microweld
- Progr. Cutting gas selection
- Laser cutting head with 5" lens and laser cutting head with 7,5" lens
- Cutting head quick-change device
- Autom. sheet position sensing system
- APC height regulation and process control
- PCS Process Control System
- Positioning laser diode
- AutoLas Plus
- Spray device
- Automatic shut-down device
- Work area lighting
- Control Sinumerik 840D: Online-Help,
Diagnostic functions, maintenance
logbook, Technology data, Teleservice
- Workshop programming ToPs 100 lite
- Safety: Light barriers, Monitoring system, Multi chamber exhaust system, Compact dust
extractor, Safety cabin
- RJ45 network connection incl. Installation
- 3,5'' disc-drive
- TFT colour screen
Extended equipment
- Laser cutting head with 3,75" lens for high speed cutting
Automation
LiftMaster (R-package) - installation symmetrical loading left or right
- incl. loading station and unloading podest,
- peeling device, measuring device for thick sheets,
- exchangeable prongs, third position
Lieferzeit:
Lieferung:
06.2013
EXW, Germany
