№ 1.
LA-043
1 шт.
€

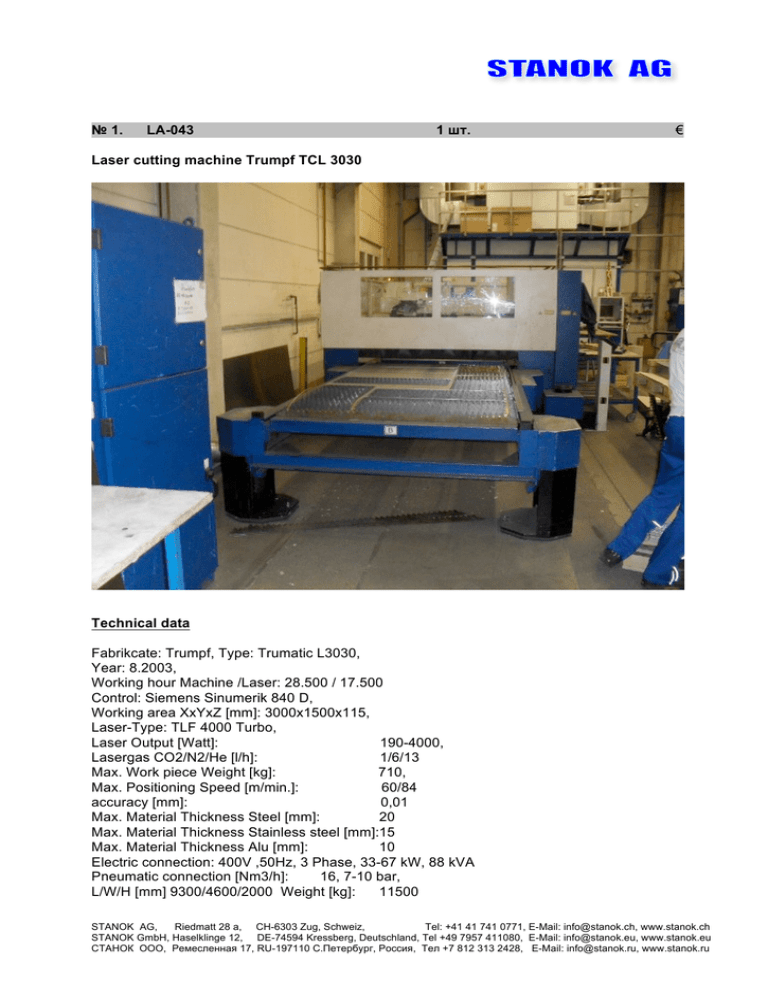

Laser cutting machine Trumpf TCL 3030
Technical data
Fabrikcate: Trumpf, Type: Trumatic L3030,
Year: 8.2003,
Working hour Machine /Laser: 28.500 / 17.500
Control: Siemens Sinumerik 840 D,
Working area XxYxZ [mm]: 3000x1500x115,
Laser-Type: TLF 4000 Turbo,
Laser Output [Watt]:
190-4000,
Lasergas CO2/N2/He [l/h]:
1/6/13
Max. Work piece Weight [kg]:
710,
Max. Positioning Speed [m/min.]:
60/84
accuracy [mm]:
0,01
Max. Material Thickness Steel [mm]:
20
Max. Material Thickness Stainless steel [mm]:15
Max. Material Thickness Alu [mm]:
10
Electric connection: 400V ,50Hz, 3 Phase, 33-67 kW, 88 kVA
Pneumatic connection [Nm3/h]:
16, 7-10 bar,
L/W/H [mm] 9300/4600/2000 Weight [kg]:
11500
STANOK AG,
Riedmatt 28 a, CH-6303 Zug, Schweiz,
Tel: +41 41 741 0771, E-Mail: [email protected], www.stanok.ch
STANOK GmbH, Haselklinge 12, DE-74594 Kressberg, Deutschland, Tel +49 7957 411080, E-Mail: [email protected], www.stanok.eu
СТАНОК ООО, Ремесленная 17, RU-197110 С.Петербург, Россия, Тел +7 812 313 2428, E-Mail: [email protected], www.stanok.ru
Standard equipment:
- Laser TLF 4000 incl. HI-LAS Plus, beam tube ventilation with N2 and LensLine
- Closed machine frame with integrated laser unit
- CO2 laser TruFlow 3200 , Radio-frequency excitation, cooling device, Logbook function laser
- Automatic pallet changer - Conveyor belt for small parts / slug
- Quickchange device for cutting head (UTI)
- Laser cutting head with 5"-lens - Laser cutting head with 7,5"-lens
- Programmable cutting gas pressure
- DIAS
- AutoLas Plus
- Positioning laser diode
- HI-LAS
- SprintLas
- ContourLas
- PlasmaLine
- ControlLine
- Laser power control
- Microweld
- Spray device
- Automatic shut-down device
- Work area lighting
- Control Sinumerik 840D: Online-Help,Diagnostic functions, Technology data is integrated,
Teleservice, RJ45 network connection
- Workshop programming
- Safety: Light barriers, Monitoring system, Multichamber exhaust system, Compact
dustextractor.
Extended equipment
- 2 clamps
Automation
- None
Delivery time:
Terms of delivery:
03.2012
EXW, Tchechien
