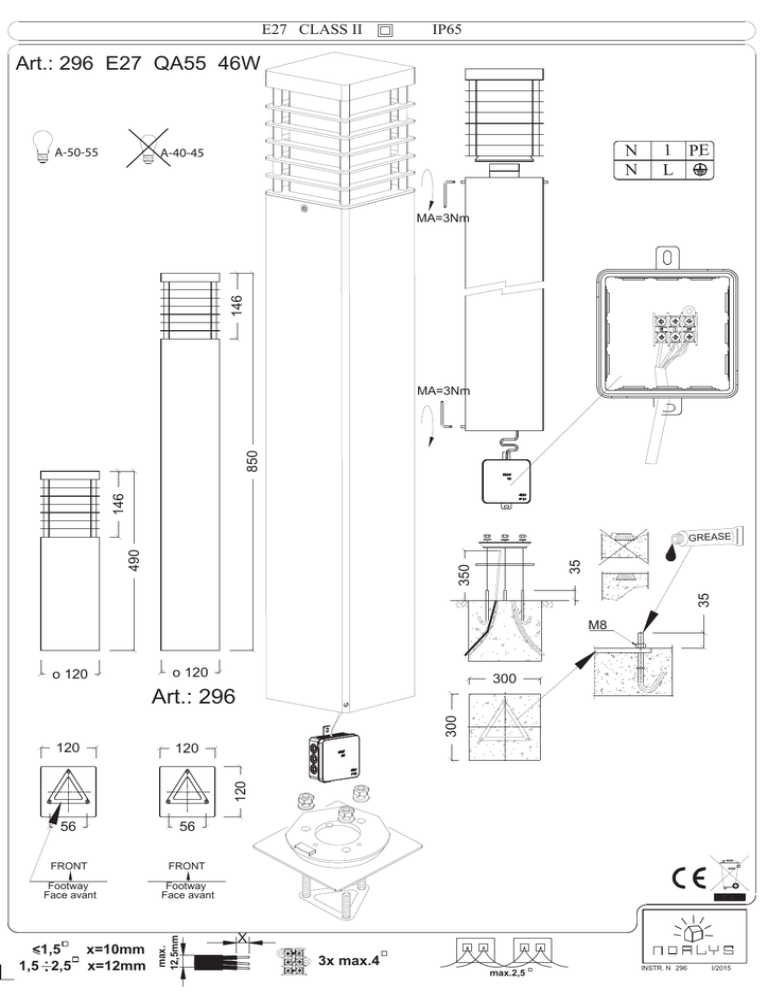

Halmstad 85

E27 CLASS II
IP65
Art.: 296 E27 QA55 46W
A-50-55
N
N
A-40-45
1 PE
L
146
MA=3Nm
146
850
MA=3Nm
35
35
350
490
GREASE
M8
o 120
o 120
300
300
Art.: 296
120
56
56
FRONT
FRONT
Footway
Face avant
Footway
Face avant
<1,5
.
1,5 2,5
x=10mm
x=12mm
max.
12,5mm
120
120
X
3x max.4
max.2,5
INSTR. N 296
I/2015
E27 CLASS II
Art.: 1480
13W TC-D; G24q-1, HF
Art.: 1481
18W TC-D; G24q-2, HF
MA=3Nm
MA=3Nm
GREASE
Art.: 1480
Art.: 1481
FRONT
FRONT
Footway
Face avant
Footway
Face avant
INSTR. N 1480/1481; 1485/1486
III-2012
~220...240V 50...60Hz
Class I
IP65
HALMSTAD
Art.1482 LED NIVISS 7W/350mA 1305003 CREE XP-G2 3000K
Art.1487 LED NIVISS 14,7W/700mA 1305003 CREE XP-G2 3000K
N
N
1 PE
L
136
MA=3Nm
490
136
850
MA=3Nm
35
350
35
GREASE
M8
o 120
o 120
Art.: 1482
Art.: 1487
56
56
FRONT
FRONT
Footway
Face avant
Footway
Face avant
300
120
<1,5
.
1,5 4
x=10mm
x=12mm
max.
12,5mm
120
120
300
X
3x max.4
max.2,5
INSTR. N 1482-1487
II/2014
