LS6000 Brochure
R

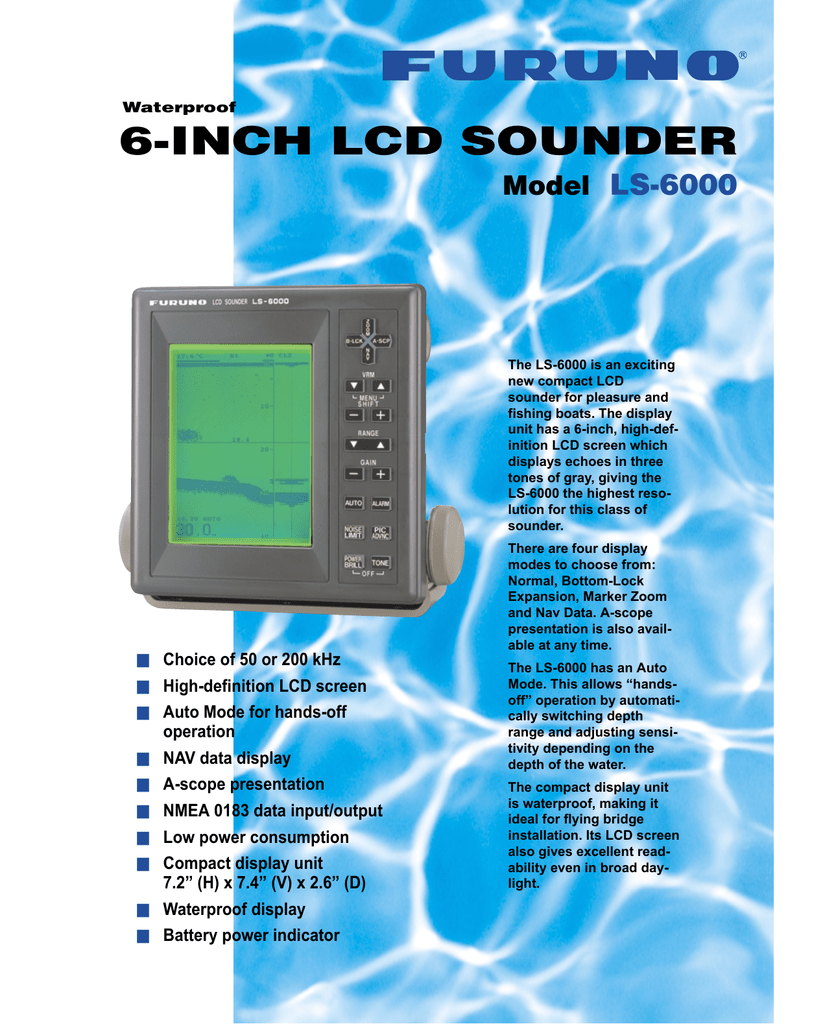

Waterproof
6-INCH LCD SOUNDER
Model LS-6000
The LS-6000 is an exciting
new compact LCD
sounder for pleasure and
fishing boats. The display
unit has a 6-inch, high-definition LCD screen which
displays echoes in three
tones of gray, giving the
LS-6000 the highest resolution for this class of
sounder.
■ Choice of 50 or 200 kHz
■ High-definition LCD screen
■ Auto Mode for hands-off
operation
■ NAV data display
■ A-scope presentation
■ NMEA 0183 data input/output
■ Low power consumption
■ Compact display unit
7.2” (H) x 7.4” (V) x 2.6” (D)
■ Waterproof display
■ Battery power indicator
There are four display
modes to choose from:
Normal, Bottom-Lock
Expansion, Marker Zoom
and Nav Data. A-scope
presentation is also available at any time.
The LS-6000 has an Auto
Mode. This allows “handsoff” operation by automatically switching depth
range and adjusting sensitivity depending on the
depth of the water.
The compact display unit
is waterproof, making it
ideal for flying bridge
installation. Its LCD screen
also gives excellent readability even in broad daylight.
SPECIFICATIONS OF LS-6000
1.
Display
6-inch monochrome LCD, 3 gray tones,
240 (H) x 320 (V) dots
POWER SUPPLY
11 to 16 VDC, 10 W approx.
110/220 VAC with optional rectifier
2.
Display Modes
Normal, Bottom-Lock Expansion, Marker Zoom, NAV, and
A-scope
ENVIRONMENT (Display unit)
Temperature:
-15°C to +55 °C (IEC 945)
Waterproofing:
IPX5 (IEC 529), CFR-46 (USCG standard)
3.
Frequency
50 or 200 kHz (specify when ordering)
4.
Basic Range (ft, fa, p/b can be selected in menu)
2.5, 5, 10, 20, 40, 80, 160 m
5.
Range Phasing
Up to 320 m max.
6.
Bottom-lock Range
5m or 10m selectable in menu
EQUIPMENT LIST
Standard
1. Display Unit
2. Installation materials and standard spare parts
Optional
1. Nav data cable
2. Transducer extension cable
3. Rectifier PR-62 for 110/220 VAC
7.
Zoom Scale
x2 or x4 selectable in menu
(Specify when ordering)
8.
Picture Advance
Freeze, 1/4, 1/2, 1, 2/1
9.
Pulselength and Pulse Repetition Rates
0.2 ms (2.5 - 80 m), 0.4 ms (160 m)
Transducer
520-5PSD (Plastic, Thru-hull type)
520-5PWD (Plastic, Transom type)
520-5MSD (Bronze, Thru-hull type)
(with speed/temperature sensor)
520ST-PWD (Plastic, Transom type)
524ST-MSD (Bronze, Thru-hull type)
10. Data Interface (NMEA 0183)
Input:
RMA, RMB, RMC, GLL, VTG, VHW, MTW
(Ver. 1.5/2.0) XTE, BWC
Output:
Water depth ($SDDBT),
Speed* ($VWVHW)
Water temperature* (YCMTW)
Interconnection diagram
GPS
Loran
Video Plotter
22S0021-3
* When connected with a transducer with
speed and temperature sensor
11. Alarm
For bottom or fish selectable in menu
Rectifier
PR-62
12. Output Power
300 W rms
13. Transducer (at -3 dB)
Beamwidth: 46° (50 kHz), 10° (200 kHz)
option
110/220 VAC
Display Unit 2.4 kg 5.3 lb
Transducer
Transducers
68 2.7"
52.5 2.1"
66 2.6"
55 2.2"
30 1.2"
188 7.4"
198 7.8"
(32 1.3")
FURUNO
4- 6
24 0.9"
130 5.1"
128 5.0"
22 0.9"
520-5MSD
(Bronze, Thru-hull)
33 1.3"
10
0.4"
120 4.7"
65 2.6"
520-5PWD
(Plastic, Transom)
28 1.1"
520-5PSD
(Plastic, Thru-hull)
212 8.3"
182 7.2"
(140 5.5")
11-16 VDC
68 2.7"
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Catalogue No. E-364d
