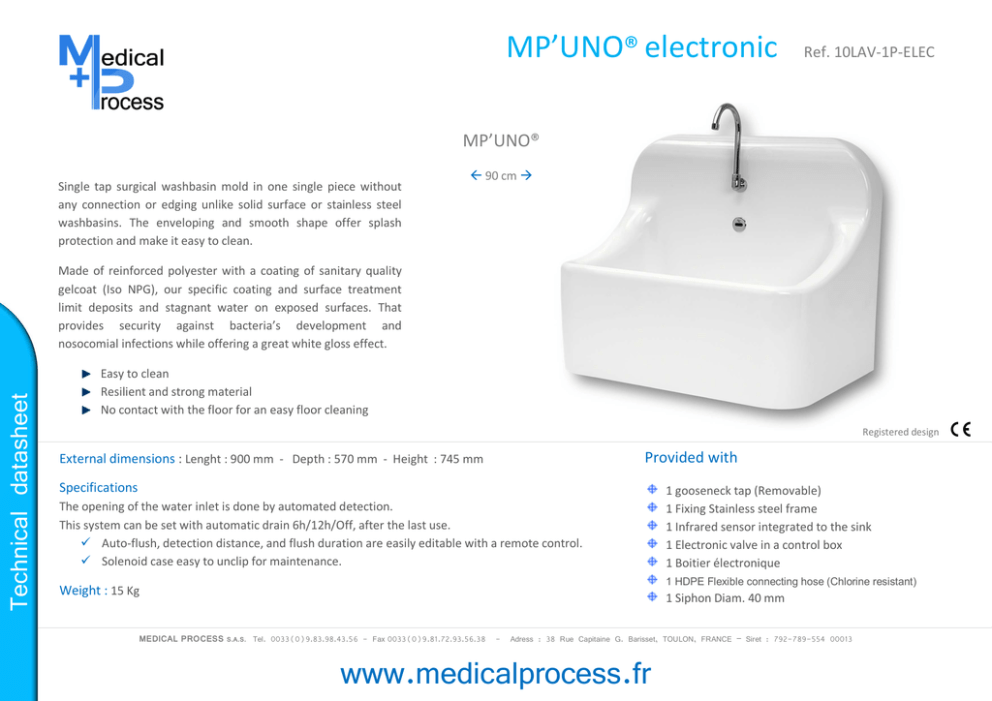

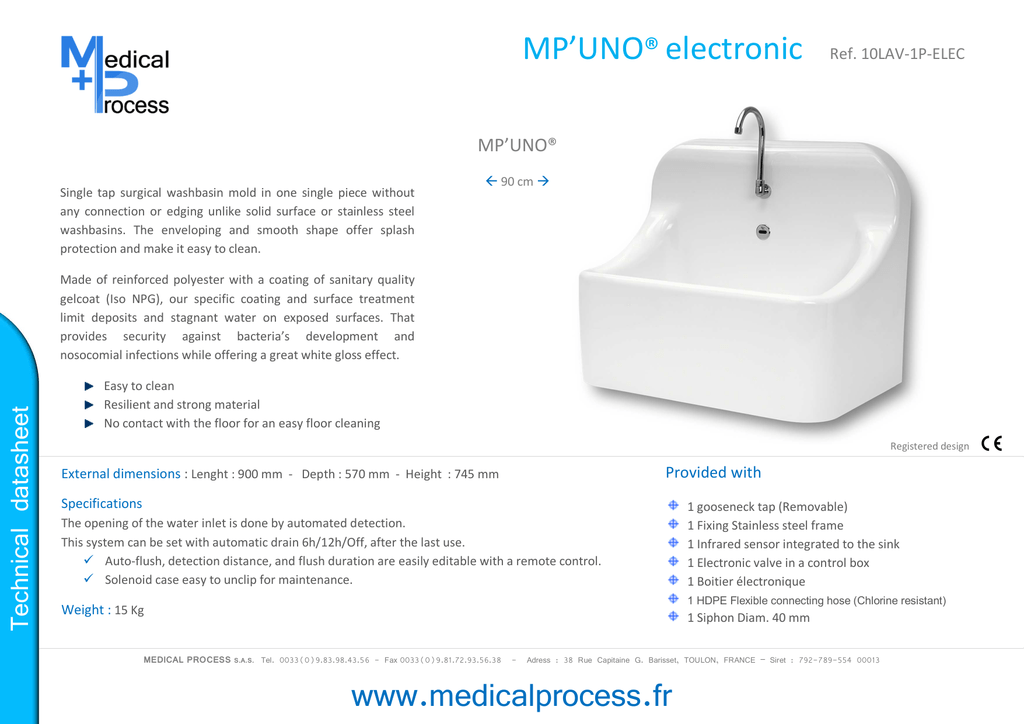

Technical datasheet MP`UNO

MP’UNO® electronic
Ref. 10LAV-1P-ELEC
MP’UNO®
Single tap surgical washbasin mold in one single piece without
any connection or edging unlike solid surface or stainless steel
washbasins. The enveloping and smooth shape offer splash
protection and make it easy to clean.
90 cm
Technical datasheet
Made of reinforced polyester with a coating of sanitary quality
gelcoat (Iso NPG), our specific coating and surface treatment
limit deposits and stagnant water on exposed surfaces. That
provides security against bacteria’s development and
nosocomial infections while offering a great white gloss effect.
Easy to clean
Resilient and strong material
No contact with the floor for an easy floor cleaning
Registered design
Provided with
External dimensions : Lenght : 900 mm - Depth : 570 mm - Height : 745 mm
Specifications
The opening of the water inlet is done by automated detection.
This system can be set with automatic drain 6h/12h/Off, after the last use.
Auto-flush, detection distance, and flush duration are easily editable with a remote control.
Solenoid case easy to unclip for maintenance.
1 HDPE Flexible connecting hose (Chlorine resistant)
Weight : 15 Kg
MEDICAL PROCESS
1 gooseneck tap (Removable)
1 Fixing Stainless steel frame
1 Infrared sensor integrated to the sink
1 Electronic valve in a control box
1 Boitier électronique
1 Siphon Diam. 40 mm
S.A.S. Tel. 0033(0)9.83.98.43.56 - Fax 0033(0)9.81.72.93.56.38
-
Adress : 38 Rue Capitaine G. Barisset, TOULON, FRANCE – Siret : 792-789-554 00013
www.medicalprocess.fr
MP’UNO® Knee control
Ref. 10LAV-1P-FEMO
MP’UNO®
90 cm
Single tap surgical washbasin mold in one single piece without
any connection or edging unlike solid surface or stainless steel
washbasins. The enveloping and smooth shape offer splash
protection and make it easy to clean.
Technical datasheet
Made of reinforced polyester with a coating of sanitary quality
gelcoat (Iso NPG), our specific coating and surface treatment
limit deposits and stagnant water on exposed surfaces. That
provides security against bacteria’s development and
nosocomial infections while offering a great white gloss effect.
Easy to clean
Resilient and strong material
No contact with the floor for an easy floor cleaning
Registered design
Provided with
External dimensions : Lenght : 1500 mm - Depth : 570 mm - Height : 745 mm
Specifications
The opening of the water inlet is done by knee control sticks.
1 gooseneck tap (Removable)
1 Fixing Stainless steel frame
1 knee control stick
1 HDPE Flexible connecting hose (Chlorine resistant)
1 Siphon Diam. 40 mm
Weight : 15 Kg
MEDICAL PROCESS
S.A.S. Tel. 0033(0)9.83.98.43.56 - Fax 0033(0)9.81.72.93.56.38
-
Adresse : 38 Rue Capitaine G. Barisset, 83200 TOULON, FRANCE
www.medicalprocess.fr
-
SIRET 792-789-554 00013
MP’UNO® Elbow control
Ref. 10LAV-1P-COUDE
MP’UNO®
90 cm
Single tap surgical washbasin mold in one single piece without
any connection or edging unlike solid surface or stainless steel
washbasins. The enveloping and smooth shape offer splash
protection and make it easy to clean.
Technical datasheet
Made of reinforced polyester with a coating of sanitary quality
gelcoat (Iso NPG), our specific coating and surface treatment
limit deposits and stagnant water on exposed surfaces. That
provides security against bacteria’s development and
nosocomial infections while offering a great white gloss effect.
Easy to clean
Resilient and strong material
No contact with the floor for an easy floor cleaning
Registered design
Provided with
External dimensions : Lenght : 1500 mm - Depth : 570 mm - Height : 745 mm
Specifications
1 Elbow control tap
1 Fixing Stainless steel frame
1 HDPE Flexible connecting hose (Chlorine resistant)
The opening of the water inlet is done by elbow control faucet.
1 Siphon Diam. 40 mm
Weight : 15 Kg
MEDICAL PROCESS
S.A.S. Tel. 0033(0)9.83.98.43.56 - Fax 0033(0)9.81.72.93.56.38
-
Adresse : 38 Rue Capitaine G. Barisset, 83200 TOULON, FRANCE
www.medicalprocess.fr
-
SIRET 792-789-554 00013
