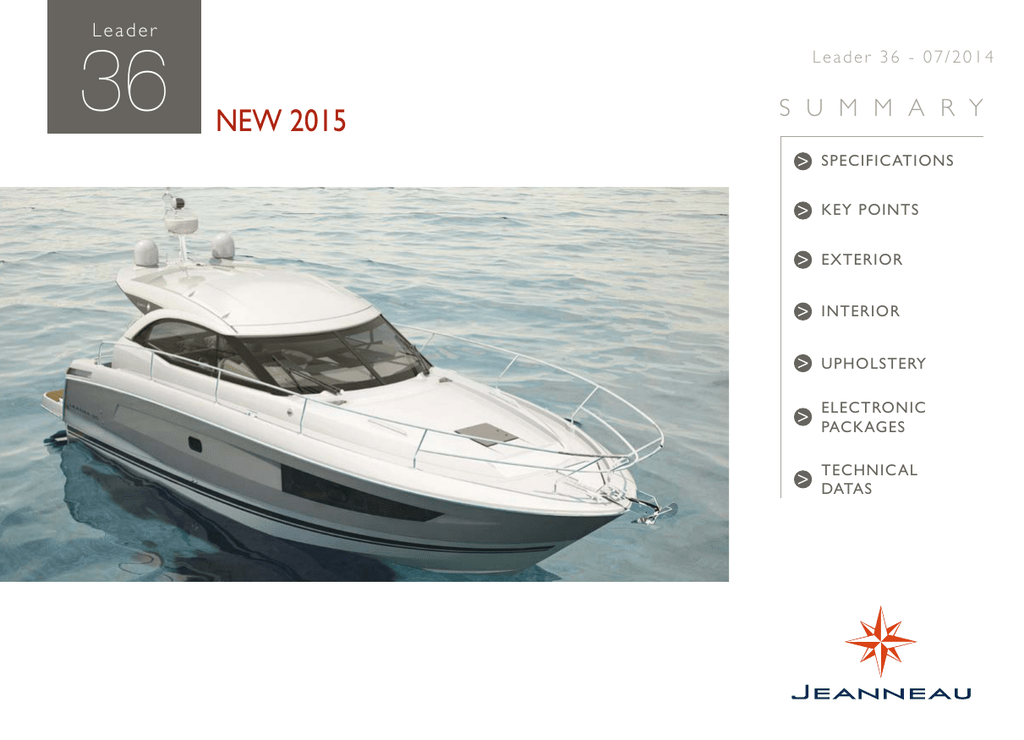

NEW 2015 - Sea Ventures

Leader
36
Leader 36 - 07/2014
NEW 2015
S U M M A R Y
SPECIFICATIONS
KEY POINTS
EXTERIOR
INTERIOR
UPHOLSTERY
ELECTRONIC
PACKAGES
TECHNICAL
DATAS
Leader 36 - 07/2014
SPECIFICATIONS
NEW 2015
OPEN VERSION
SPORTOP VERSION
main specific ations (PROVISIONAL)
Overall length............................................11,47 m / 37’7’’
Hull length.................................................... 9,84 m / 32’3’’
Overall beam..............................................3,62 m / 11’10’’
Max draft........................................................ 0,75 m / 2’5’’
Light displacement....................... 6 847 Kg / 15 164 Lbs
Fuel capacity..........................................560 L / 147 US gal
Water capacity............................. 160 L + 100 L (option)
Holding tank capacity....................................................80 L
Fridge capacity.................................................. 80 L + 40 L
Cabins.................................................................................... 2
Berths.................................................................................... 5
Engine ......................................................................................
Gas............. Mercruiser 2 x 5.7 350 MAG (2x 300CV)*
Diesel.............................. Volvo 2 x D4-260 (2x 260CV)*
......................................... Volvo 2 x D4-300 (2x 300CV)*
...........................................................*avec ou sans joystick
Requested EC category...........................B-9 (in progress)
Architects / Designers...........................Garroni Design /
.....Mickael Peters Yacht Design / Jeanneau Engineering
02
> Summary
Leader 36 - 07/2014
KEY POINTS
NEW 2015
EXTERIOR
INTERIOR
Developed as a family day cruiser, the Leader 36 is available in two versions,
Sport Top or Open with radar arch, and her silhouette is graced with an
attractive aft swim platform.
An innovative layout offers “2½ volumes” and a private aft cabin that can
sleep three.
This 36-foot model features optimal comfort in the head compartment, with
a separate shower compartment and plexiglass door.
As on the Leader 40, the cockpit on the standard model of the new Leader
36 features a sofa and co-pilot seating, the same layout in the saloon, galley
furniture, and a large storage compartment housed beneath the aft seating.
Particular attention was paid to the interior volume and the number of
storage compartments on board (hanging lockers, drawers, cabinets).
Forward, an adjustable sundeck enhances comfort onboard.
A fully equipped galley is standard, with the additional option of a microwave.
03
> Summary
Leader 36 - 07/2014
EXTERIOR
NEW 2015
Same layouts as on
LEADER 40
Sofa + co-pilot seat
Front sundeck with lifting back rests
Aft storage
locker (may
contain
a dinghy)
Aft seat of the cockpit saloon
• Sundeck (tilting backrest)
can be used while keeping
a cockpit saloon
Cockpit
storage locker
Cockpit galley
(fridge and grill
as options)
Liferaft
storage
04
> Summary
Leader 36 - 07/2014
EXTERIOR
NEW 2015
05
> Summary
Leader 36 - 07/2014
inTERIOR
NEW 2015
Double berth
Length: 1,60 m or 2 m
(Sliding system) Width: 1,60 m
Bar
Sliding door
Separated shower
compartment
TV
location
3 berths:
Double berth: L: 2 m x l: 1,60 m env.
Sofa/berth: L: 1,90 m x l: 0,70 m env.
Sofa
06
> Summary
Leader 36 - 07/2014
inTERIOR
NEW 2015
07
> Summary
07/2014
UPHOLSTERY
INTERIOR • INTÉRIEUR
RANGE • GAMMES
Saloon
Carré
CAP CAMARAT WA / DC
LEADER 8
LEADER 36 / 40
Aft cabin
Cabine arrière
CC 8.5CC :
ORION WHITE
CAP CAMARAT CC
MERRY FISHER
Front cabin
Cabine avant
EXTERIOR • EXTERIEURS
Covers
Protections
CUDDY MASTIC /
VOGUE STONE
Outer Curtains
Rideaux
Extérieurs
• Sunbrella Silver (o)
VIBRANT
LOOM SHARK
• Loom Shark (o)
MEDITERRANEO OLD WHITE
• Urus beige (o)
• Divine grey (o)
• Devon leather (o)*
MARLIN PURE WHITE
• Urus beige (o)
• Loom shark (o)
• Devon leather (o)*
CUDDY OTONNE • Sunbrella Heather Beige (o)
URUS BEIGE
LEADER 36 :
VIBRANT
LEADER 40 :
PREMIUM
NC
MEDITERRANEO OLD WHITE
• Vibrant (o)
• Accent (o)
• Devon leather (o)*
PREMIUM
VELASCO
MEDITERRANEO OLD WHITE
• Vibrant (o)
• Accent (o)
• Devon leather (o)*
PREMIUM
(O) : OPTION
Outer Seatings
Selleries
Extérieures
VIBRANT
CUDDY
OTONNE
• Silvertex Ice /
Vogue Eucalyptus (o)
• Sunbrella Taupe (o)
• Sunbrella Dark Smoke (o)
PVC White (o)
• Sunbrella Taupe (o)
• Sunbrella Dark Smoke (o)
• Sunworker Charcoal (o)
CUDDY OTONNE
• Sunbrella Heather Beige (o)
• Sunbrella Taupe (o)
• Sunbrella Heather Beige (o)
• Sunbrella Taupe (o)
• Sunworker Charcoal (o)
*Leather / Cuir Devon selection :
White 010 - Beige 805 - Mastic 807 - Cognac 0828 - Marron 0830 - Chocolat 203 - Orange 0837 - Anthracite 0501
08
> Summary
07/2014
UPHOLSTERY
Fabrics / Tissus
INTERIOR / INTÉRIEUR
LOOM
SHARK
VIBRANT
URUS
BEIGE
MARLIN PURE
WHITE (PVC)
PREMIUM
MÉDITERRANEO
OLD WHITE
(PVC)
ACCENT
09
ORION
WHITE
DIVINE GREY
> Summary
07/2014
UPHOLSTERY
Leather / Cuir
BLANC
010
INTERIOR / INTÉRIEUR
BEIGE
805
MASTIC
807
COGNAC
0828
MARRON
0830
CHOCOLAT
203
ORANGE
0837
ANTHRACITE
0501
SUNBRELLA
DARK SMOKE
SUNBRELLA
SILVER
SUNWORKER
CHARCOAL
EXTERIOR / EXTÉRIEUR
CUDY
OTONNE
CUDDY MASTIC
& VOGUE STONE
SILVERTEX ICE
& VOGUE
EUCALYPTUS
SUNBRELLA
HEATHER
BEIGE
SUNBRELLA
TAUPE
10
> Summary
07/2014
ELECTRONIC PACKAGES
11
> Summary
07/2014
ELECTRONIC PACKAGES
12
> Summary
07/2014
TECHNICAL DATAS
Régimes - vitesses - consommation / RPM - SPEED - CONSUMPTION
Bateaux / Boats
Leader 8
Leader 36
Leader 40
Moteur / Engine
Hélice /
Propeller(s)
Charge /
Loading
Régime
maxi
(T/mn) /
Max Rpm
Vitesse
maxi
(Nœuds) /
Max speed
(knots)
Conso*
(L/h) /
Conso*
(L/h)
Régime
croisière
(T/mn) /
Cruising Rpm
Vitesse
croisière
(Nœuds) /
Cruising speed
(Knots)
Conso*
(L/h) /
Conso*
(L/h)
Volvo D4.260 DP - 260 cv / hp
G4 VOLVO
4 051 kg
3 600
31,95
53,00
3 000
24,45
32,50
Volvo 5,7 L GXI DPS - 320 cv / hp
DPS F3 INOX
3 688 kg
4 950
33,50
92,00
4 000
25,90
63,00
Volvo 2 x D4.260 DP - 2x260 cv / hp
ND
ND
ND
ND
ND
ND
ND
ND
ND
Volvo 2 x D4.300 DP - 2x300 cv / hp
ND
ND
ND
ND
ND
ND
ND
Mercruiser 2 x 5.7l 350 MAG DTS - 2x300 cv / hp
ND
ND
ND
ND
ND
ND
ND
ND
Volvo 2 x D4. 300 DP - 2x300 cv / hp
DPH G4
10 187 Kg
3 560
32,35
116,00
2 800
23,15
72,00
Volvo 2 x D6. 370 DP - 2x370 cv / hp
DPH G5
11 080 Kg
3 520
36,90
156,00
2 600
24,75
78,60
Mercruiser 2 x 8.2l 377 MAG - 2x380 cv / hp
21 BRAVO3 XR
10 418 Kg
4 850
37,00
ND
3 000
24,00
114,00
Essai dans les conditions optimum (carène propre, sans antifouling, bateau-lège…) / Trials in the optimum conditions (clean hull - no antifouling - light displacement)
* Consommation totale du bateau / Total consumption of the boat • ND = Non Disponible / No Data.
Ces informations sont données à titre indicatif et peuvent varier selon les conditions d’utilisation, de charge etc... / These average datas are given for guidance and may vary according to sailing conditions, loading etc...
13
> Summary
07/2014
TECHNICAL DATAS
CERTIFICATION CE / EC REGUL ATION
Modèles / Models
Leader 8
Leader 36
Leader 40
NC 9
Certification N°
/ Regulation N°
Longueur
coque*
/ Hull length*
Largeur
coque*
/ Hull beam*
Charge max
/ Max load
Catégorie
/ Cathegory
Personnes
/ Persons
AA SPB 09033 MM
7,95 m
2,99 m
1 810 Kg
B-C
7-9
ND
ND
ND
ND
ND
ND
B SPB 13013 MM
10,98 m
3,80 m
3 710 Kg
B-C
10-12
Moteur(s)
/ Engine(s)
Version
Kw
Cv / Hp
1 x Volvo 5.7 GXI DPS
239
325
1 x Volvo D4-260 DP
191
260
ND
ND
ND
2 x Volvo D4-300 DP
2 x 214
2 x 291
2 x Volvo D6-370 DP
2 x 261
2 x 365
2 x Mercruiser 8.2
2 x 280
2 x 380
260
B SPB 11008 MM
9,12 m
3,15 m
1 880 Kg
B-C
8 - 10
1 x Volvo D4-260 DP
191
AA SPB 10008 MM - EAA 11004
10,55 m
3,71 m
1 800 Kg
B-C
8 - 10
1 x Volvo D6-330 DP
243
330
AA SPB 10008 MM
10,55 m
3,71 m
2 540 Kg
B-C
10 - 10
2 x Volvo D3-200 DPS
2 x 147
2 x 200
NC 14
B SPB 12036 MM
11,96 m
4,10 m
4 340 Kg
B-C
12 - 14
2 x Volvo IPS 400
2 x 212
2 x 289
2 x Volvo IPS 500
2 x 259
2 x 352
VELASCO 37F
ND
ND
ND
ND
ND
ND
ND
ND
ND
VELASCO 43
B SPB 12034 MM - EB 13006
11,98 m
4,10 m
4710 Kg
B-C
12 - 14
2 x Cummins QSB 6.7
2 x 280
2 x 380
VELASCO 43F
ND
ND
ND
ND
ND
ND
ND
ND
ND
NC 11
Pour les homologations en cours toutes les informations doivent être considérées comme provisoires. Les catégories et nombre de personnes indiqués correspondent à la demande faite par le chantier et non à une
confirmation / When the EC regulation is in progress, please consider all information as provisional. The cathegories and number of persons written are requested by the Jeanneau Yard, not confirmed.
* Indiqué sur la DEC (Déclaration Ecrite de Conformité) / * Written on the WSC (Written Statement of Compliance) - ND: Non Disponible / No Data
14
> Summary
07/2014
TECHNICAL DATAS
KIT AMARRAGE - MOUILLAGE / MOORING - ANCHORING KITS
Mouillage / ANCHORING
Amarre / MOORING
Code / Ref
LEADER 8
162304
08mm / 14 kg
Britany
23m
35m
14mm
043144
4 x D14 L10000
066204
6 x 680 x
D. 200 cm
LEADER 36
162305
10mm / 16 kg
Britany
28m
40m
18mm
043145
4 x D16 L12000
066205
6 x 860 x
D. 230 cm
LEADER 40
085460
10mm / 20 kg
Delta
32m
45m
18mm
119857
4 x D18 L15000
066205
6 x 860 x
D. 230 cm
LEADER 40
085460
10 mm / 20 kg
Britany
32 m
45 m
18 mm
119857
4 x D18 L15000
066205
6 x 860 x
D. 230 cm
NC 9
162305
10mm / 16 kg
Britany
28m
40m
18mm
043145
4 x D16 L12000
066204
6 x 680 x
D. 200 cm
NC 11
162305
10mm / 16 kg
Britany
28m
40m
18mm
043145
4 x D16 L12000
066205
6 x 860 x
D. 230 cm
NC 14
085460
10mm / 20 kg
Delta
32m
45m
18mm
119857
4 x D18 L15000
066205
6 x 860 x
D. 230 cm
VELASCO 37F
085459
10mm / 16 kg
Delta
28m
40m
18mm
043145
4 x D16 L12000
066205
6 x 860 x
D. 230 cm
VELASCO 43 & 43F
085460
10mm / 20 kg
Delta
32m
45m
18mm
119857
4 x D18 L15000
066205
6 x 860 x
D. 230 cm
Bateaux / Boats
Chaîne /
Ancre / Anchor
Chain
Pare Battage / FENDERS
Désignation /
detail
Cablot / Line
Code / Ref
Désignation /
detail
Code / Ref
Désignation /
detail
ND: Non Disponible / No Data
15
> Summary
07/2014
TECHNICAL DATAS
COLISAGE / PACKING LIST
Bateaux / Boats
Longueurs HT /
Length overall (m)
Largeur HT /
Width overall (m)
Hauteur HT /
Height overall (m)
Hauteur s/ber /
Height on cradle (m)
Poids (kg) /
Weight
Volume s/ber
(m3) / Volume on
cradle
Leader 8
9,09
2,99
3,57
(arceau monté)
4,10
3600
111,43
Leader 36 SPORTOP
11,59
3,62
3,45
3,66
6 850
153,56
Leader 36 OPEN
11,59
3,62
3,45
3,56
6 850
149,36
Leader 40 SPORTOP
12,38
3,83
3,91
4,08
8 490
193,22
Leader 40 OPEN
12,38
3,83
4,08
4,25
8 490
201,28
Weight IB boats : with engine / Poids des bateaux Inboard: moteur maxi inclus.
16
> Summary
07/2014
TECHNICAL DATAS
TARIFS TRANSPORT / transport costs
Destinations
Zeebrugge
Anvers
Dunkerque
Le Havre
St Malo
Saint Gilles
Les Sables
Noirmoutier
Arcachon
Gruissan
Port Leucate
Marseille
Port Saint
Louis
Antibes
St Laurent
du Var
1500
1500
1362
1084
693
525
765
1222
1265
1997
3587
3587
3198
2221
1518
857
1700
3088
3738
4811
LEADER
Leader 8
Leader 36
Leader 40
NC
NC 9
2605
2701
2336
1801
1405
725
1320
2495
2965
3636
NC 11
3399
3399
2860
1945
1419
836
1595
2970
3269
4450
NC 14
4180
4445
3370
2570
2075
915
2355
3585
4245
5490
5530
5815
4825
3080
2460
1115
2885
4170
5000
6410
VELASCO
Velasco 37F
Velasco 43 & 43F
Tarif indicatif des transports au départ de l’usine - France (E HT) / Average transport costs from factory - France (E w/o VAT)
Ces prix ne sont pas contractuels / Those prices are not contractual
17
> Summary
07/2014
TECHNICAL DATAS
DROITS ANNUELS (législation française)
Modèles
Leader 8
Leader 36
Motorisation
Volvo 2 x D4.260 DP - 2x260 cv / hp
Volvo 5.7 GXI 320 cv / hp
Longueur
(en mètres)
7,95 m
Volvo 2 x D4.260 DP - 2x260 cv / hp
Volvo 2 x D4.300 DP - 2x300 cv / hp
NC 11
NC 14
VELASCO 37F
VELASCO 43 & 43F
Volvo D4. 260 DP - 260 cv / hp
Volvo D6 330 cv / hp
Volvo 2 x D3. 200 DP - 2x200 cv / hp
VOLVO IPS 400 2XD4 300
VOLVO IPS 500 2XD6 370
Volvo 2 x D4.260 DP (2 x 260 cv / hp)
Volvo 2 x D4.300 DP (2x 300 cv / hp)
Cummins 2 X QSD 6,7 380 HP
77
178
2 x 14,7
10,98 m
Mercruiser 2 x 380ZD - 2x380 cv / hp
NC 9
14,70
Droits longueur
(Euro)
2 x 32,85
Volvo 2 x D4.300 DP - 2x300 cv / hp
Volvo 2 x D6.370 DP - 2x370 cv / hp
14,70
32,84
14,70
9,78 m
Mercruiser 2 x 5.7l 350 MAG DTS - 2x300 cv / hp
Leader 40
Puissance
administrative du
moteur (CV)
2 x 22
240
2 x 47,1
9,10 m
10,55 m
14,70
22
2 x 9,63
2 x 14,7
11,96
2 x 22
178
240
274
Droits moteurs
(Euro)
Total droits
(Euro)
315
392
1 188
1 265
315
493
315
493
2 950
3 128
1 012
1 252
1 716
1 956
4 724
4 964
315
493
680
920
455
695
1 012
1 286
1 716
1 990
9,98
14,70
178
315
493
11,98
2 x 23,6
274
1 804
2 078
Ces prix sont donnés à titre indicatif et sous réserve des modifications liées à la législation en vigueur.
Francisation obligatoire auprès des Douanes et taxation des navires de moins de 7 mètres dotés d’une motorisation égale ou superieure à 22cv (Puissance administrative).
18
> Summary
This document was updated in july 2014.
It may contain illustrations or text representing
or referring to optional equipment.
If changes appear on our 2015 models,
with regard to equipment or options referred to in this document,
only the 2015 Jeanneau pricing will apply.
