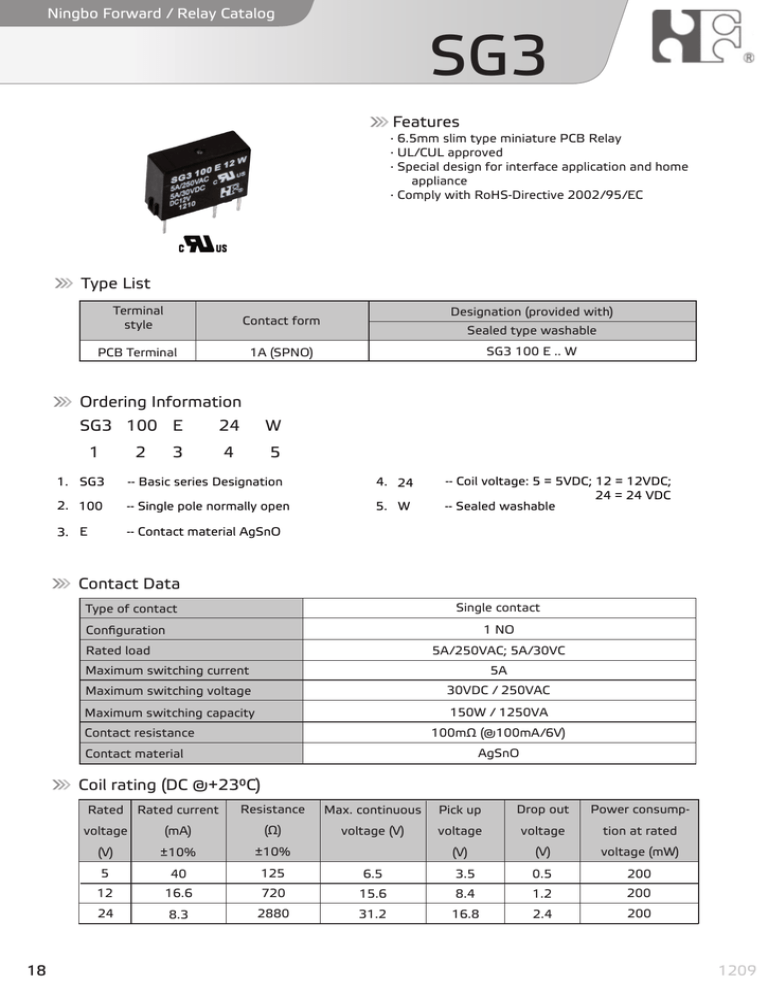

Ningbo Forward / Relay Catalog
SG3
Features
· 6.5mm slim type miniature PCB Relay
· UL/CUL approved
· Special design for interface application and home
appliance
· Comply with RoHS-Directive 2002/95/EC
Foto Foto Foto
Type List
Terminal
style
Contact form
PCB Terminal
1A (SPNO)
Designation (provided with)
Sealed type washable
SG3 100 E .. W
Ordering Information
SG3 100 E
1
2
3
24
W
4
5
1. SG3
-- Basic series Designation
4. 24
2. 100
-- Single pole normally open
5. W
3. E
-- Contact material AgSnO
-- Coil voltage: 5 = 5VDC; 12 = 12VDC;
24 = 24 VDC
-- Sealed washable
Contact Data
Single contact
Type of contact
1 NO
Configuration
Rated load
5A/250VAC; 5A/30VC
Maximum switching current
5A
Maximum switching voltage
30VDC / 250VAC
Maximum switching capacity
150W / 1250VA
Contact resistance
100mΩ (@100mA/6V)
AgSnO
Contact material
Coil rating (DC @+23°C)
18
Rated
Rated current
Resistance
Max. continuous
Pick up
Drop out
Power consump-
voltage
(mA)
(Ω)
voltage (V)
voltage
voltage
tion at rated
(V)
±10%
±10%
(V)
(V)
voltage (mW)
5
40
125
6.5
3.5
0.5
200
12
16.6
720
15.6
8.4
1.2
200
24
8.3
2880
31.2
16.8
2.4
200
1209
Ningbo Forward / Relay Catalog
SG3
Specification
Mechanical life
20x106 cycles
Electrical life
see curve
Operate Time
10ms Max.
Release Time
5ms Max.
Between coil and contacts
3000V, 50/60Hz, 1min
Between open contacts
750V, 50/60Hz, 1min
Surge voltage withstand
Between coil and contacts
6000V (wave 1.2/50µs)
Vibration resitance (10..55 Hz)
double amplitude
Operation extremes
1.5mm
Damage limits
1.5mm
Operation extremes - 11ms
10g
Damage limits - 6ms
100g
Dielectric strength
Shock resistance
Ambient temperature
-25…+70°C
Approvals
UL/CUL
Weight
3g
Safety Approval
Certified
UL / CUL
Ratings
5A/250VAC ; 5A/30VDC
Outline Dimensions
17.5 ± 0.2
0.689 ± 0.008
6.5 ± 0.2
0.256 ± 0.008
2-0.5
0.020
2.54
0.1
1209
1.13
0.044
7.62
0.300
5.08
0.200
2-0.8
0.031
4-0.3
0.012
3.5
0.138
12.5 ± 0.2
0.492 ± 0.008
0.5
0.020
5.08
0.200
19
Ningbo Forward / Relay Catalog
SG3
Wiring Diagram
Bottom View
PC Board Layout
Bottom View
2.54
0.1
2.54
0.1
4-Ø1.3
0.052
Engineering Data
50
30
10
5
3
1
DC Resistive Load
DC Inductive Load
300
100
30
10
5
0.3
3
0
3
5
10
250-VAC/30-VDC Resistive Load
50
0.5
0.1
20
Life Expectancy
Number of operations (x104 )
Switching Current (A)
Maximum Switching Capacity DC-load
30
100 250 500
Switching Voltage(V)
0
[email protected]
1
2
3
4
5
6
7
8
9 10
Switching Current (A)
