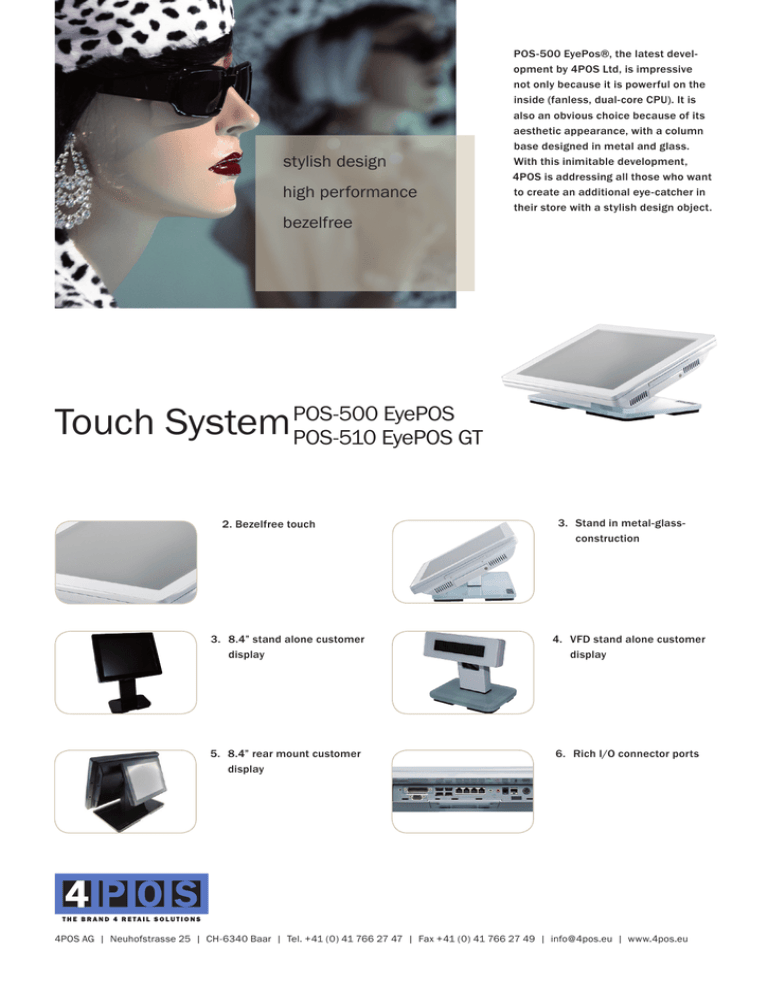

Touch System

stylish design
high performance
bezelfree
POS-500 EyePos®, the latest development by 4POS Ltd, is impressive
not only because it is powerful on the
inside (fanless, dual-core CPU). It is
also an obvious choice because of its
aesthetic appearance, with a column
base designed in metal and glass.
With this inimitable development,
4POS is addressing all those who want
to create an additional eye-catcher in
their store with a stylish design object.
EyePOS
Touch System POS-500
POS-510 EyePOS GT
2. Bezelfree touch
3. Stand in metal-glass- construction 3. 8.4” stand alone customer display
4. VFD stand alone customer display
5. 8.4” rear mount customer display
6. Rich I/O connector ports
4POS AG | Neuhofstrasse 25 | CH - 6340 Baar | Tel. + 41 ( 0 ) 41 766 27 47 | Fax + 41 ( 0 ) 41 766 27 49 | info @ 4pos.eu | www.4pos.eu
POS - 500 EyePOS
POS-510 EyePOS GT Model Name
POS-500 EyePOS
POS-510 EyePOS GT
Housing
Magnesium-Aluminium Die-casting housing
Mainboard
CPU
Chipset
System Memory
C48
C68
Intel® Atom D525, 1.8G, Dual Core
Intel® Core i3 2120 (3.3GHz) / i5 2390T (2.7GHz)
CPU with Graphic built-in + ICH 8M
Intel Q67 PCH (AMT/RAID enabled)
2 x SO-DIMM slot up to 4GB DDR3 800MHz
1 x Long-DIMM slot up to 8GB DDR3 1066/1333MHz
LCD Touch Panel
LCD Size
15” TFT
Brightness
250 cd/m2
Maximal Resolution
Touch Screen Type
Tilt Angle (Degree)
Storage
1024 x 768
True Flat Resisitive or True Flat Projected Capazitive
20° (two heights available)
HDD
One 2.5“ SATA HDD bay
FDD/CD-ROM
external
CompactFlash socket
SATA SSD flash card option
External I/O Ports
USB
Serial/COM
5 external USB: 1x side panel / 4x rear
4 x COM ports RJ-45 connectors ( COM1 & COM2 standard RS-232 W/O power,
COM3 & COM4 pin9 with 5V /12V enable/disable by BIOS setting)
Parallel port
LAN
1
1 x RJ45 10/100/1000
2 x RJ45 10/100/1000
2nd VGA Output
1 x DB 15M
Cash Drawer
1 x RJ11 (12V / 24V cash drawer)
Speaker
Audio
2 x 2W Speakers
1 x Line-out, 1 x Microphone-in
1 x Line-out
Control/Indicator
Power Button
1
Power Supply
External 90W (19W, 4, 7A)
Environment
EMC & Safety
FCC, Class A, CE, LVD
Operating Temperature
IP
5° C ~ 35° C
IP65 sealed front panel with touch screen
Options
Second Display
8.4”” TFT LCD / VFD Display (2x20, 5mm character)
Communication
802.11 a/b/g wireless LAN card & antenna
Magnetic Card Reader
3 Tracks MSR (PS/2)
Dimension (W x D x H)
360 x 275 x 173 mm (low stand design)
high 360 x 228 x 283 mm (high stand design)
Weight
7 kg
Colour
Windows® XP Professional, Windows Embedded POSReady 2009, Windows XP Embedded, Windows XP Professional for
Embedded, WinCE, Windows 2000 Professional for Embedded, Windows 7 Embedded, Linux
4POS AG | Neuhofstrasse 25 | CH - 6340 Baar | Tel. + 41 ( 0 ) 41 766 27 47 | Fax + 41 ( 0 ) 41 766 27 49 | info @ 4pos.eu | www.4pos.eu
V02/12
Black or Glossy white
OS Support
