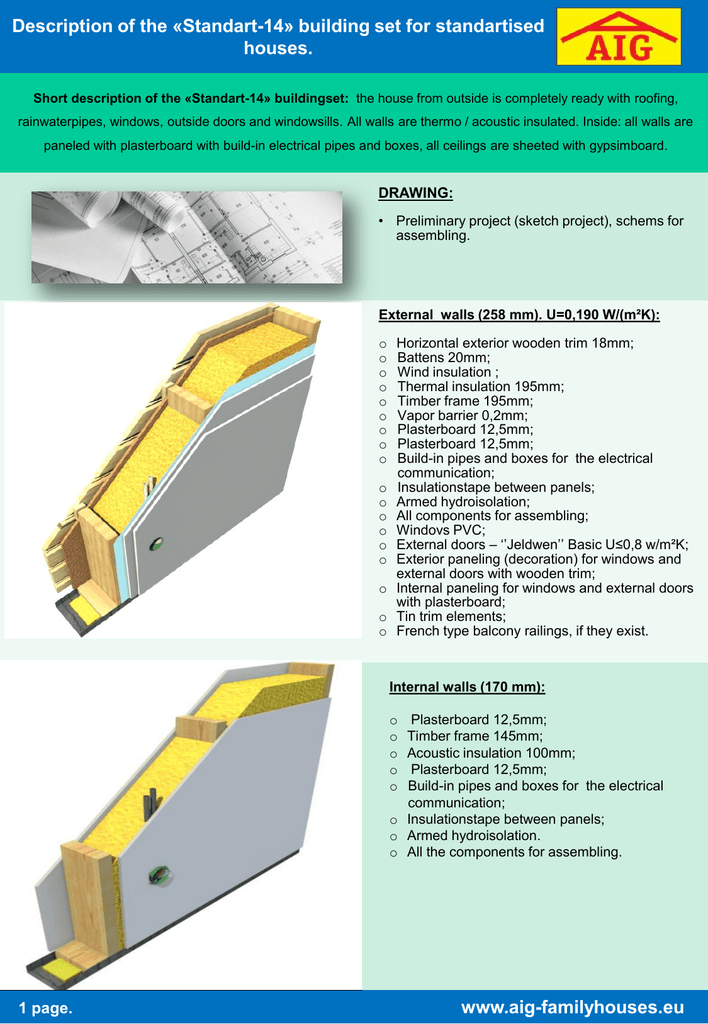

Description of the «Standart-14» building set for standartised
houses.
Short description of the «Standart-14» buildingset: the house from outside is completely ready with roofing,
rainwaterpipes, windows, outside doors and windowsills. All walls are thermo / acoustic insulated. Inside: all walls are
paneled with plasterboard with build-in electrical pipes and boxes, all ceilings are sheeted with gypsimboard.
DRAWING:
• Preliminary project (sketch project), schems for
assembling.
External walls (258 mm). U=0,190 W/(m²K):
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
o
Horizontal exterior wooden trim 18mm;
Battens 20mm;
Wind insulation ;
Thermal insulation 195mm;
Timber frame 195mm;
Vapor barrier 0,2mm;
Plasterboard 12,5mm;
Plasterboard 12,5mm;
Build-in pipes and boxes for the electrical
communication;
Insulationstape between panels;
Armed hydroisolation;
All components for assembling;
Windovs PVC;
External doors – ‘’Jeldwen’’ Basic U≤0,8 w/m²K;
Exterior paneling (decoration) for windows and
external doors with wooden trim;
Internal paneling for windows and external doors
with plasterboard;
Tin trim elements;
French type balcony railings, if they exist.
Internal walls (170 mm):
o
o
o
o
o
Plasterboard 12,5mm;
Timber frame 145mm;
Acoustic insulation 100mm;
Plasterboard 12,5mm;
Build-in pipes and boxes for the electrical
communication;
o Insulationstape between panels;
o Armed hydroisolation.
o All the components for assembling.
1 page.
www.aig-familyhouses.eu
Description of the «Standart-14» building set for standartised
houses.
Internal walls (125 mm):
o
o
o
o
o
2 - Plasterboard 12,5mm;
Metall profile frame 100mm;
Acoustic insulation 95mm;
Plasterboard 12,5mm;
Build-in pipes and boxes for the electrical
communication;
o Insulationstape between panels;
o Armed hydroisolation.
• All components for assembling.
Mezzanine celing U = 0,11 W/(m²K):
o
o
o
o
o
o
Thermal insulation 350mm;
Trusses, rafters;
Vapor barrier 0,2mm;
Ceiling battens 18-25mm;
Ceiling material 12mm;
Build-in pipes and boxes for the electrical
communication.
o All components for assembling.
Roof construction:
o
o
o
o
o
o
o
o
o
2 page.
Concrete roof tiles;
Condensate insulation 0,2mm;
Wooden battens spaced for roof tiles 45mm;
Wooden battens 18-30mm;
Trusses,rafters (calculated snow load is 170
kg/sq.m.).
Boarding for roof overhangs;
Metal gutter and dovnpipe;
Chimney tegument over roof;
All the components for assembling.
www.aig-familyhouses.eu
Description of the «Standart-14» building set for standartised
houses.
The description of additional offers, mentioned in the price-list:
Garage, car shelter:
• Load-bearing construction above foundation
without thermal insulation ;
• The external decoration according to the house;
• Roofing and battens;
• Boarding for roof overhangs;
• Metal gutters and downpipes;
• All the components for assembling.
The porch roof :
• Load-bearing construction above foundation;
• Roofing and battens;
• Boarding for roof overhangs;
• Metal gutter and downpipe;
• All the components for assembling.
Wooden terrace:
• Load-bearing construction above foundation;
• Boarding for floor;
• All the components for assembling.
ADDITIONAL EXPLANATIONS:
1. * * - The house buildingset is completed in the manufacturer’s warehouses with the amount of
materials, which allow assemble the house above the foundation so that it looks ready from the
outside.
2. The house buildingset «Standart-14» doesn’t include: foundation construction, engineering
communications, delivery of the building set to the construction site, assembly of the building set on
the construction site.
3. The pictures in this description is indicative character.
