SCREEN PRINTING
MATERIAL

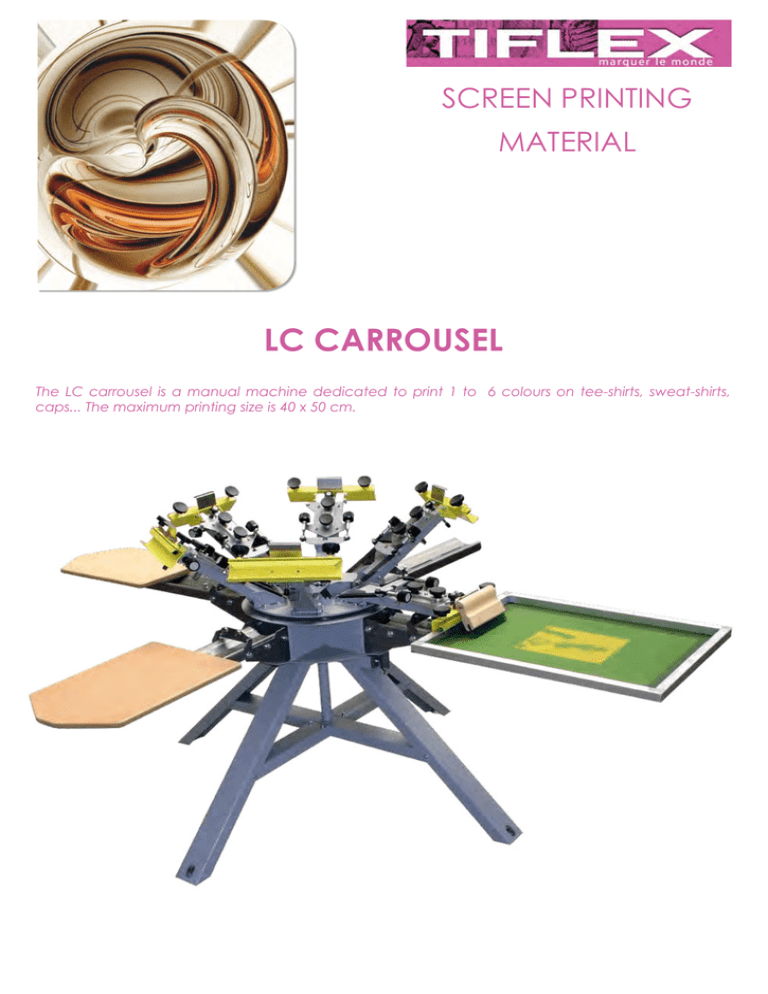

LC CARROUSEL
The LC carrousel is a manual machine dedicated to print 1 to 6 colours on tee-shirts, sweat-shirts,
caps... The maximum printing size is 40 x 50 cm.
3 models are manufactured : 4 screens / 4 boards, 6 screens / 6 boards or 6 screens / 4 boards.
LC carrousel is composed of a perfectly stable stiff base. The boards and screen holders are rotating independently
one from the other.
LC carrousel can be equipped with 5 different board sizes : man XXL, man XL, man L, woman M and child S.
LC carrousel is delivered dismantled.
• Printing system
The screen holders are manufactured in mechanic welding section which offers good lightness/stiffness qualities
for an easy use.
The boards slide to permit their adjustment and quick removing. A roll tappet set them in the appropriate
position.
• Adjustments
-
screens by 3 micrometric buttons (x and y axes and rotation)
boards : front / backward
off contact
parallelism screen/board
LC CARROUSEL
4 moving
stations
6 moving
stations
4/6 moving
stations
4
6
6
Mechanical characteristics
number of screens :
maxi printing size :
40 x 50 cm
screen maxi outside dimensions :
60 x 80 cm
number of boards :
4
boards dimensions
- man XXL :
- man XL :
- man L :
- woman M :
- child S :
6
4
56 x 72 cm
48 x 66 cm
40 x 60 cm
32 x 50 cm
22 x 40 cm
board height on ground :
86 cm
lift screen height on ground :
1,60 m
maxi outside diameter :
2,90 m
net weight :
180 kg
200 kg
190 kg
gross weight :
220 kg
240 kg
230 kg
Product manufactured in France.
CS 30200 - 01450 PONCIN - Tél. +33 (0) 4 74 37 33 80/97
[email protected] - www.tiflex.com
IMP. TIFLEX 09/02/2016 - Non contractual document
Overall dimensions
