Transcription

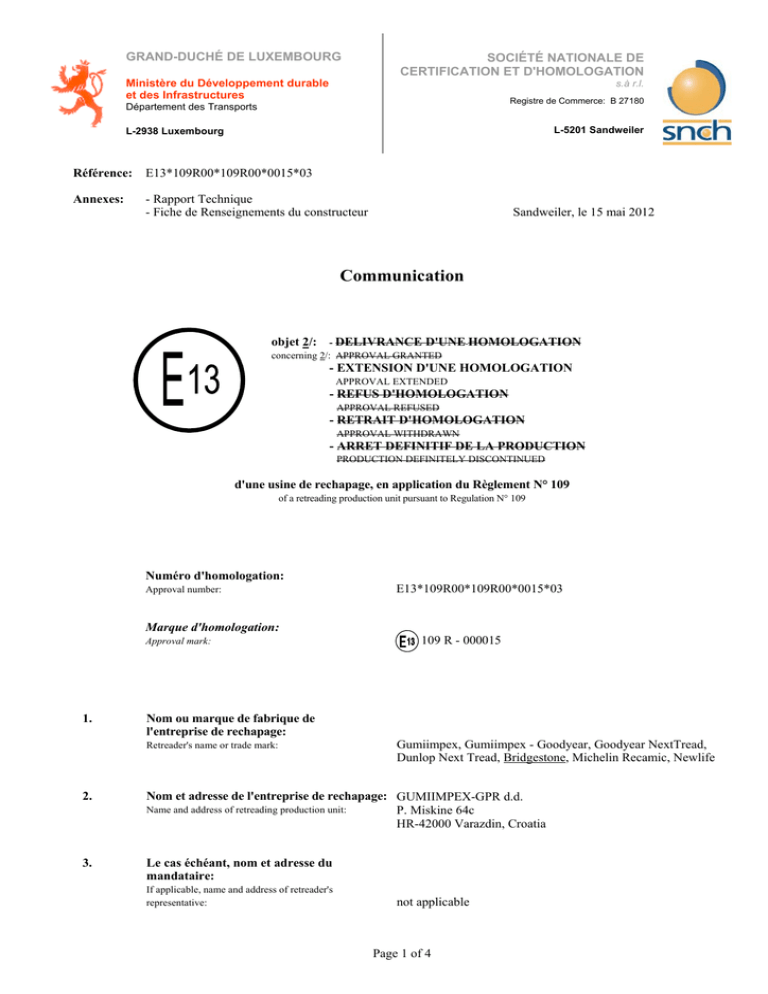

GRAND-DUCHÉ DE LUXEMBOURG
SOCIÉTÉ NATIONALE DE
CERTIFICATION ET D'HOMOLOGATION
Ministère du Développement durable
et des Infrastructures
s.à r.l.
Registre de Commerce: B 27180
Département des Transports
L-5201 Sandweiler
L-2938 Luxembourg
Référence:
E13*109R00*109R00*0015*03
Annexes:
- Rapport Technique
- Fiche de Renseignements du constructeur
Sandweiler, le 15 mai 2012
Communication
objet 2/:
- DELIVRANCE D'UNE HOMOLOGATION
concerning 2/: APPROVAL GRANTED
- EXTENSION D'UNE HOMOLOGATION
APPROVAL EXTENDED
- REFUS D'HOMOLOGATION
APPROVAL REFUSED
- RETRAIT D'HOMOLOGATION
APPROVAL WITHDRAWN
- ARRET DEFINITIF DE LA PRODUCTION
PRODUCTION DEFINITELY DISCONTINUED
d'une usine de rechapage, en application du Règlement N° 109
of a retreading production unit pursuant to Regulation N° 109
Numéro d'homologation:
Approval number:
E13*109R00*109R00*0015*03
Marque d'homologation:
Approval mark:
1.
Nom ou marque de fabrique de
l'entreprise de rechapage:
Retreader's name or trade mark:
2.
109 R - 000015
Gumiimpex, Gumiimpex - Goodyear, Goodyear NextTread,
Dunlop Next Tread, Bridgestone, Michelin Recamic, Newlife
Nom et adresse de l'entreprise de rechapage: GUMIIMPEX-GPR d.d.
P. Miskine 64c
HR-42000 Varazdin, Croatia
Name and address of retreading production unit:
3.
Le cas échéant, nom et adresse du
mandataire:
If applicable, name and address of retreader's
representative:
not applicable
Page 1 of 4
E13*109R00*109R00*0015*03
4.
Description sommaire, selon les
paragraphes 4.1.3. et 4.1.4. du présent
Règlement:
Summarised description as in paragraphs 4.1.3. and 4.1.4.
of this Regulation:
Trade names or marks:
Range of tyre sizes:
see Page 5 of manufacturer's information document
Structure of tyres 2/:
diagonal / bias-belted / radial
Category of use of tyres 2/:
normal / snow / special-use tyres
System of retreading 2/:
top-capping / re-capping / bead to bead
Method of application of the new materials
to be used 2/:
camel-back / strip-wound / direct extrusion / pre-cured
Maximum speed symbol of the tyres to be
retreaded:
M (heavy duty truck)
L (light duty truck)
Maximum load index of the tyres to be
retreaded:
168 (heavy duty truck)
143 (light duty truck)
Nominated international tyre standard to
which the range of tyres conform 2/:
5.
ETRTO / TRA / JATMA / TRAA / ABPA / STRO
Autorité délégué:
Société Nationale de Certification et d'Homologation
L-5201 Sandweiler
Assigned authority:
Service technique et, le cas échéant,
laboratoire d'essai agréé pour
l'homologation ou la vérification de
la conformité:
Technical service and, where applicable, test laboratory
approved for purposes of approval or of verification of
conformity:
6.
Date du procès-verbal délivré par ce
service:
Date of report issued by that service:
7.
LCA 51 0330 001 12
Motif(s) de l'extension (le cas échéant):
Reason(s) of extension (if applicable):
9.
09.05.2012
Numéro du procès-verbal délivré par ce
service:
Number of report issued by that service:
8.
Luxcontrol SA
B.P. 349
L-4004 Esch-sur-Alzette
refer to Annex A in technical report
Observations:
Any remarks:
not applicable
Page 2 of 4
E13*109R00*109R00*0015*03
10.
Lieu:
Sandweiler
Place:
11.
Date:
15 mai 2012
Date:
12.
Signature:
Signature:
13.
Pour le Département des Transports
Pour la SNCH
Marco FELTES
Inspecteur Principal 1er en rang
Claude LIESCH
Directeur
Est annexée à la présente communication une liste des pièces figurant dans le dossier d'homologation
déposé auprès des services administratifs ayant octroyé l'homologation et qui peuvent être
obtenues sur demande
Annexed to this communication is a list of documents in the approval file deposited at the Approval Authority which has
considered this approval and which can be obtained upon request
see “Index to information type-approval report”
__________________
2/ Biffer les mentions inutiles
Delete that which does not apply
Page 3 of 4
GRAND-DUCHÉ DE LUXEMBOURG
SOCIÉTÉ NATIONALE DE
CERTIFICATION ET D'HOMOLOGATION
Ministère du Développement durable
et des Infrastructures
s.à r.l.
Registre de Commerce: B 27180
Département des Transports
L-5201 Sandweiler
L-2938 Luxembourg
Référence:
E13*109R00*109R00*0015*03
Annexes:
- Rapport Technique
- Fiche de Renseignements du constructeur
Sandweiler, le 15 mai 2012
Index du dossier d'homologation
Index to type-approval report
Numéro d'homologation:
E13*109R00*109R00*0015*03
Approval number:
Révision:
00
Revision:
Nom ou marque de fabrique de l'entreprise
de rechapage:
Retreader's name or trade mark:
1.
2.
3.
Procès-verbal d'essai:
Test report:
N° LCA 51 0330 001 12
- Technical report:
- Index to information package:
Pages 1 to 10;
Annex A - Page 1 & 2.
Dossier du constructeur:
Report of the manufacturer:
Annex B
- Information folder:
refer to Annex A in technical report.
Autres documents annexés:
Other documents annexed:
4.
11.09.2002
Date de la dernière délivrance de pages
révisées:
Date of last issue of revised pages:
6.
not applicable
Date de délivrance de l'homologation
initiale:
Date of issue of initial type approval:
5.
not applicable
Date de la dernière délivrance d'une
homologation révisée:
Date of last extension:
15.05.2012
Page 4 of 4
TECHNICAL REPORT
No.: LCA 51 0330 001 12
Inspection concerning the
Production of retreaded pneumatic tyres for
commercial vehicles and their trailers
performed according to the
ECE Regulation No. 109
Manufacturer:
GUMIIMPEX-GRP d.d.
Pavleka Miskine 64c
Extension 3 to ECE Type Approval no.: E13*109R00*109R00*0015*00
Index:
1.
General
2
2.
Inspections and their results
4
3.
Evaluation of test results
9
4.
Statement of compliance
10
5.
Annex (beginning with an index)
A reproduction of this report and its annexes, except in full, is prohibited without the written permission of Luxcontrol s.a.
E13*109R00*109R00*0015*03
L-5201 SANDWEILER (Luxembourg)
Organisme accrédité OLAS EN 45011
Accréditation N° 5/001 (Portée communiquée sur demande)
…
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
- Luxcontrol SA
1, Av. des Terres Rouges
BP 349
L-4004 Esch-sur-Alzette
LUXEMBOURG
Tél:++352-54.77.11-1
Fax:++352-54.77.11-203
E-Mail:[email protected]
Int.:www.luxcontrol.com
N ident: LU 113 536 61
RC Lux.: B15664
Fortis Banque Luxembourg
IBAN: LU56 0030 1612 0727 0000
BIC: BGLLLULL
Dexia-BIL
IBAN: LU48 0026 1824 1543 2600
BIC: BILLLULL
* LCA 51 0330 001 12 * Gumiimpex-GRP d.d. * -- * -- * R109 *
1.
General
1.1.
Test Provisions
Page 2
The inspection was carried out according to the requirements of the ECERegulation No. 109 including supplement 6 to the 00 series of amendments
entered into force on March 17, 2010.
1.2.
Information concerning the approval of the production of retreaded
pneumatic tyres for commercial vehicles and their trailers
The statements below apply to the previous ECE type-approval as referred
to on page 1.
1.2.1.
() Numbering according to the communication following Annex 1 of
Regulation No. 109
(1.)
Retreader’s name or trade mark:
Gumiimpex, Gumiimpex - Goodyear, Goodyear NextTread, Dunlop
Next Tread, Bridgestone, Michelin Recamic, Newlife
(2.)
Name and address of retreading production unit:
GUMIIMPEX-GRP d.d.
Pavleka Miskine 64c
(3.)
If applicable, name and address of retreader’s representative:
Not applicable
(4.)
Summarised description as in paragraphs 4.1.3. and 4.1.4. of this
Regulation:
Trade names or marks:
Gumiimpex, Gumiimpex - Goodyear, Goodyear NextTread, Dunlop
Next Tread, Bridgestone, Michelin Recamic, Newlife
- See Annex B
Structure of tyres:
diagonal, bias-belted, radial
…
E13*109R00*109R00*0015*03
Page 3
Category of use of tyres:
normal, snow, special-use tyres
System of retreading:
top-capping, re-capping, bead to bead
Method of application of the new materials to be used:
camel-back, strip-wound, direct extrusion, pre-cured
Maximum speed symbol of the tyres to be retreaded:
M (heavy duty truck)
L (light duty truck)
Maximum load index of the tyres to be retreaded:
168 (heavy duty truck)
143 (light duty truck)
Nominated international tyre standard to which the range of tyres
conform:
ETRTO, TRA, JATMA, TRAA, ABPA, STRO
(8.)
Reason(s) for extension of approval:
- trademark Qualitread renamed by Bridgestone
- Update of production capacity
(9.)
Any remarks:
Production tests have been continued successfully according to
regulation since first approval. Conformity is still given.
…
E13*109R00*109R00*0015*03
2.
Inspections and their results
2.1.
Tyres used for Load/Speed endurance test:
Page 4
Following tyres have been used for testing (if not stated in part 1.2.2. of this
report):
Main audit:
1 unit
12 R22.5
1 unit
385/65 R22.5
1 unit
295/80 R22.5
2 units 315/80 R22.5
design
design
design
designs
G267
G465
LHD Uniwing
LHD Unicircle
G267 Unicircle
COP-tires:
- 385/65 R22.5; Casing: GOODYEAR; Retread design: LHT UC 305
- 315/70 R22.5; Casing: GOODYEAR; Retread design: LHD UC 270
- 385/65 R22.5; Casing: DUNLOP; Retread design: SP242 UC 300
- 315/80 R22.5; Casing: GOODYEAR; Retread design: RHDII UW 260
2.2.
Inspection items
Location of test:
Main
report
Ext. 1
Ext. 2
Ext. 3
Varazdin (HR) – Audit
Colmar-Berg (L) – Tyres
Colmar-Berg (L) – COP
Tyres
Tyres
Tyres
Date of receipt of test
item:
10 September 2002
22 to 28 May 2002
07.04.2006
Date of test:
10 September 2002
22 to 28 May 2002
07.04.2006
07.10.2009
07.10.2009
09.05.2012
09.05.2012
2.2.1.
Outline of the structure of the company producing the retreaded tyres:
2.2.1.1.
Address:
GUMIIMPEX-GRP d.d.
Pavleka Miskine 64c
2.2.1.2.
Responsible Person(s):
Mr. Damir Kiric (Director)
…
E13*109R00*109R00*0015*03
2.2.1.3.
Page 5
Legal Structure:
Public limited company
2.2.1.4.
Production:
ca. 13000 tyres per anno (figures date from 2012)
2.2.2.
Range of retreaded tyres:
See item (4.) of this report.
2.2.3.
Marking of retreaded tyres:
See item (4.) of this report.
A sufficiently large space for the approval is provided. All markings
required by paragraph 3 of the Regulation are provided on the sidewall(s) as
set out in annex 3 of the Regulation.
2.2.4.
Retreading system:
see item (4.) of this report.
2.2.5.
Method of application of the new materials used:
2.2.6.
Nominated international standard(s) to which the range of tyres conform:
2.2.7.
Brief description of the quality management system which ensures the
effective control of the tyre retreading procedures:
2.2.7.1.
Documented System
Work instructions exist for all workstations. An internal quality system
according to ISO9001-2008 is documented in a QM Manual Doc. No. PU
10.02 revision 4 dated 2011-06-14.
The quality assurance system is covered by an certificate no. CH04/0775,
valid until November 16, 2013.
The language used is Croatian.
Work- and Maintenance-instructions exist for all workstations.
For traceability each process step for each tire is documented on a checklist
(card) following the tire. All retreaded tires are documented individually by
a follow-up sheet.
…
E13*109R00*109R00*0015*03
Page 6
Follow up sheet
2.2.7.2.
Requirements of regulation
2.2.7.2.1.
Presence of E/e mark
Only tires having e or E mark will be accepted in production. This is
documented in the work procedure for incoming inspection.
Marking
2.2.7.2.2.
Reconstruction process
The complete retreading process of the company is following the working
instructions and procedure described in the Goodyear’s “International
Retread Process Manual”. The process is mainly composed of the following
steps.
- Income and casing inspection
- Buffing
…
E13*109R00*109R00*0015*03
Page 7
- Skiving (Buzz-out filling)
- Cementing
- Repairing
…
E13*109R00*109R00*0015*03
- Filling
Page 8
- Building
- Curing
- Final Inspection
Customer complaints and non-conform products in production are analyzed
and documented in various analyses.
2.2.8.
Load/Speed Endurance tests and measured dimensions of the tyres:
The tests have been carried out with the tyres listed under item 2.1. The
tyres withstood the test procedure for 47 hours and fulfilled the size
requirements before and after the tests.
2.3.
Remark
2.3.1.
General:
The inspection results are only applicable to items, which have been tested.
…
E13*109R00*109R00*0015*03
2.4.
Page 9
Test facilities
All measuring and test equipment used to carry out the inspections are in
accordance with the ECE-Regulation stated in 1.1. of this report and with
ISO 17025.
3.
Evaluation of test results
3.1.
Variants and equipment covered
The tests carried out cover the following component variations and
equipment as far as these are relevant for the approval of the production of
retreaded pneumatic tyres:
-
different tire carcasses as stated in annex B
tire sizes as stated in annex B
tire tread as stated in annex B
trade marks as stated in annex B
3.2.
Remarks
3.2.1.
Main report:
Not applicable.
3.2.2.
Extension 1:
The follow-up audit, carried out by the technical service, has demonstrated
that the retread production unit still satisfy to the requirements laid down
during the initial assessment as far as the procedures, operation, instructions
and specification documentation provided by material suppliers, are
concerned.
The holder of the approval has demonstrated for each year of production,
and spread throughout that year, representative retreaded tyres samples of
the range being produced, are checked and tested as prescribed in this
Regulation
3.2.3.
Extension 2 to 3:
See the remarks in item (9.) and the content of the extension 2 in annex A.
…
E13*109R00*109R00*0015*03
4.
Page 10
Statement of compliance
The inspections items and measurements carried out have shown the
compliance of the technical unit described in this report and the attached
Annex with the requirements of the ECE-Regulation No. 109 including
supplement 6 to the 00 series of amendments entered into force on March
17, 2010.
Esch-sur-Alzette, May 9, 2012
Luxcontrol s.a.
Service Homologation-automobile
Mauro Moscardelli
Ingénieur-Inspecteur
Patrizio Vinciarelli
Ingénieur-Inspecteur
Annex
…
E13*109R00*109R00*0015*03
Annex A, Page 1
Index to the information package, including a summary in chronological order, concerning
extensions and/or amendments
ECE Type Approval no.: E13*109R00*109R00*0015*00
Main Report
Technical Report No.:
LCA 51 330 004 2
Composition of the Annex:
A: Index
B: Information folder
Pages 1 to 7
Page 1
Page 1 to 4
Extension 1
LCA 51 330 006 6
A: Index
- to be replaced:
- to be added:
Pages 1 to 7
Page 1
Page 1 to 4
Page 5 to 7
Contents of the extension:
To be added:
- Different trade names
- The maximum speed index category M
- Addition range of tyre sizes
- Follow-up inspection results
Extension 2 (including follow-up audit 2009)
LCA 51 0330 008 09
A: Index
- to be replaced
to be changed:
• the editorial arrangement of technical report
• the corporate name
• the range of coved tire sizes
• the production capacity
…
E13*109R00*109R00*0015*03
Pages 1 to 10
Page 1 and 2
Page 1 to 6
Annex A, Page 2
• the supplement of the regulation (updated to 06)
to be added:
• additional trade marks
• follow-up inspection results
Extension 3 (including follow-up audit 2012)
LCA 51 0330 001 12
A: Index
- to be deleted
- to be added
to be changed:
• the editorial arrangement of technical report
• trademark Qualitread renamed by Bridgestone
• the production capacity
to be updated:
• the supplement of the regulation up to 06
to be added:
• follow-up inspection results
Index to the information folder:
-
Manufacturer’s information document (pages 1 to 7)
…
E13*109R00*109R00*0015*03
Pages 1 to 10
Page 1 to 2
Page 1 to 6
Page 1 to 7
Annex B - LC Ref. No. 0330 001 12 Page 1
GOODYEAR
RETREADING
EUROPE
INFORMATION DOCUMENT
CONCERNING THE APPROVAL FOR THE PRODUCTION
OF RETREAD TIRES FOR COMMERCIAL VEHICLES
AND THEIR TRAILERS
REGULATION R 109
E13*109R00*109R00*0015*03
May, 2012
PAGE 1/7
1 - GENERALITIES
1.1 Retreader's name or trade mark :
GUMIIMPEX GRP d.d. Varaždin
1.2 Name and address of retreading production unit :
GUMIIMPEX GRP d.d. Varaždin
Pavleka Miškine 64c
42000 Varaždin, Croatia
1.3 Name and address of retreader's representative :
1.4 Names and trade marks inscribed on the retread tires :
Gumiimpex, Gumiimpex-Goodyear, Goodyear Next Tread, Dunlop Next Tread,
Bridgestone, Micheline Recamic, New Life
E13*109R00*109R00*0015*03
May, 2012
PAGE 2/7
2 - RETREADING CHARACTERISTICS USED BY THE COMPAGNY
2.1 Retreading type :
On top only
2.2 Retreading method :
Precure
2.3 Category of using :
Normal tire / Snow tire /Special- use- tyres
2.4 Maximum speed index retreaded :
Light truck L
Heavy truck M
2.5 Maximum load index retreaded :
Light truck 143
Heavy truck 168
E13*109R00*109R00*0015*03
May,2012
PAGE 3/7
3 - CASING CHARACTERISTICS TO BE RETREAED
3.1 Oiginal brand names of casing retreaded by the compagny :
BARUM, BRIDGESTONE, CEAT, CONTINENTAL, DUNLOP,FALKEN
FIRESTONE, FULDA, GOODYEAR, HANKOOK, KORMORAN, MATADOR,
MICHELIN, PIRELLI, PNEUMANT, RIKEN, SAVA, SEMPERIT, SUMITOMO,
TOYO, UNIROYAL, YOKOHAMA
3.2 Casing structures :
Radial tire
May, 2012
E13*109R00*109R00*0015*03
PAGE 4/7
4 - RETREADING PRODUCT RANGE COVERED BY THIS FILE
4.1 Sizes range :
For each structure and category of using, give the detailled list with the tire sizes
covered by the present file indicating :
Section width
Nominal aspect ratio
Type of structure ( bias tire / radial tire )
Rim diameter
Category of using ( normal tire / snow tire / special using )
225/75 R16
8.5 R 17.5
9.5 R 17.5
205/75 R 17.5
215/75 R 17.5
225/75 R 17.5
235/75 R 17.5
245/75 R 17.5
245/70 R 17.5
265/70 R 17.5
245/70 R 19.5
265/70 R 19.5
285/70 R 19.5
305/70 R 19.5
385/55 R 19.5
435/50 R 19.5
445/45 R 19.5
8.25 R 20
9.00 R 20
10.00 R 20
11.00 R 20
12.00 R 20
9 R 22.5
10 R 22.5
11 R 22.5
12 R 22.5
13 R 22.5
275/70 R 22.5
275/80 R 22.5
295/80 R 22.5
295/60 R 22.5
305/70 R 22.5
315/60 R 22.5
315/70 R 22.5
315/80 R 22.5
385/55 R 22.5
385/65 R 22.5
425/65 R 22.5
455/40 R 22.5
E13*109R00*109R00*0015*03
May, 2012
PAGE 5/7
5 - MEANS USED TO GUARANTEE THE PRODUCTION
CONFORMITY
5.1 Does the company have a certified quality system :
Yes
ISO9001:2008
ISO14001:2004
5.2 Working specifications for the casings checking :
Casings are checking by shearography, and visually and by touch
in the check station.
Operators are trained (qualified) by the TIP-TOP and TECH technicians for repair.
Limits for repairing are defined based on TIP-TOP and TECH standards.
Casings are throwing away according to damage codes, and then return to the buyer
or send to the specialized company for mechanical destroying.
5.3 Selection method for the retreading raw material and procedure concerned :
According to the GAR Manual.
According to the Bridgestone Retreading Manual.
According to the Michelin Retreading Manual.
Treads are stored in the plant, and based on needs doing re-cementing.
Cushion gum, cement and colours are stored in the separated air-conditioned space.
Material is using based on shelf-life.
5.4 Procedure used during all the process to guarantee the quality level :
Procedure according to GAR, Bridgestone Retreading and Michelin Manuals.
'International Retread Proces Manual'' by Goodyear (USA),
The actual Manual is dated 22.11.00.
'BRP Quality Proces Manual'' - revision 1 by Bridgestone Retreading Systems''.
The actual Manual is dated 02-2005.
Recamic Techical manual for running workshop (M-Pr-01)
E13*109R00*109R00*0015*03
May, 2012
PAGE 6/7
5.5 Sampling method used for the checking ( wheel testing ) in accordance with
the present regulation :
Statistical analysis used, if any .
Which checking are realized ( sizes, performances, others ) .
Wheel testing results recorded .
May, 2012
PAGE 7/7
E13*109R00*109R00*0015*03

Communication - GumiImpex-GRP
