EWE – Arena Oldenburg EWE – Arena Oldenburg

EWE – Arena Oldenburg EWE – Arena Oldenburg

EWE – Arena Oldenburg

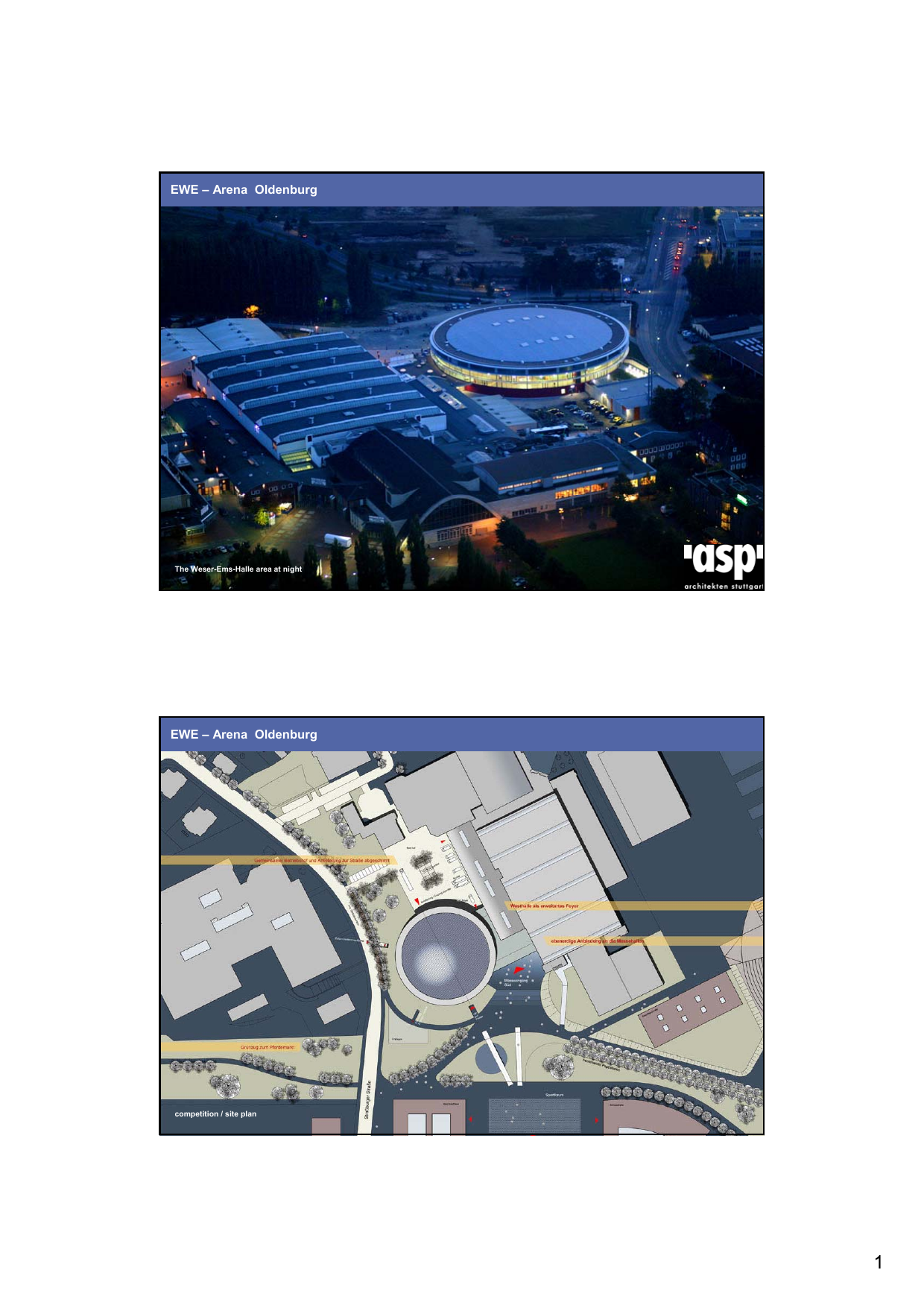

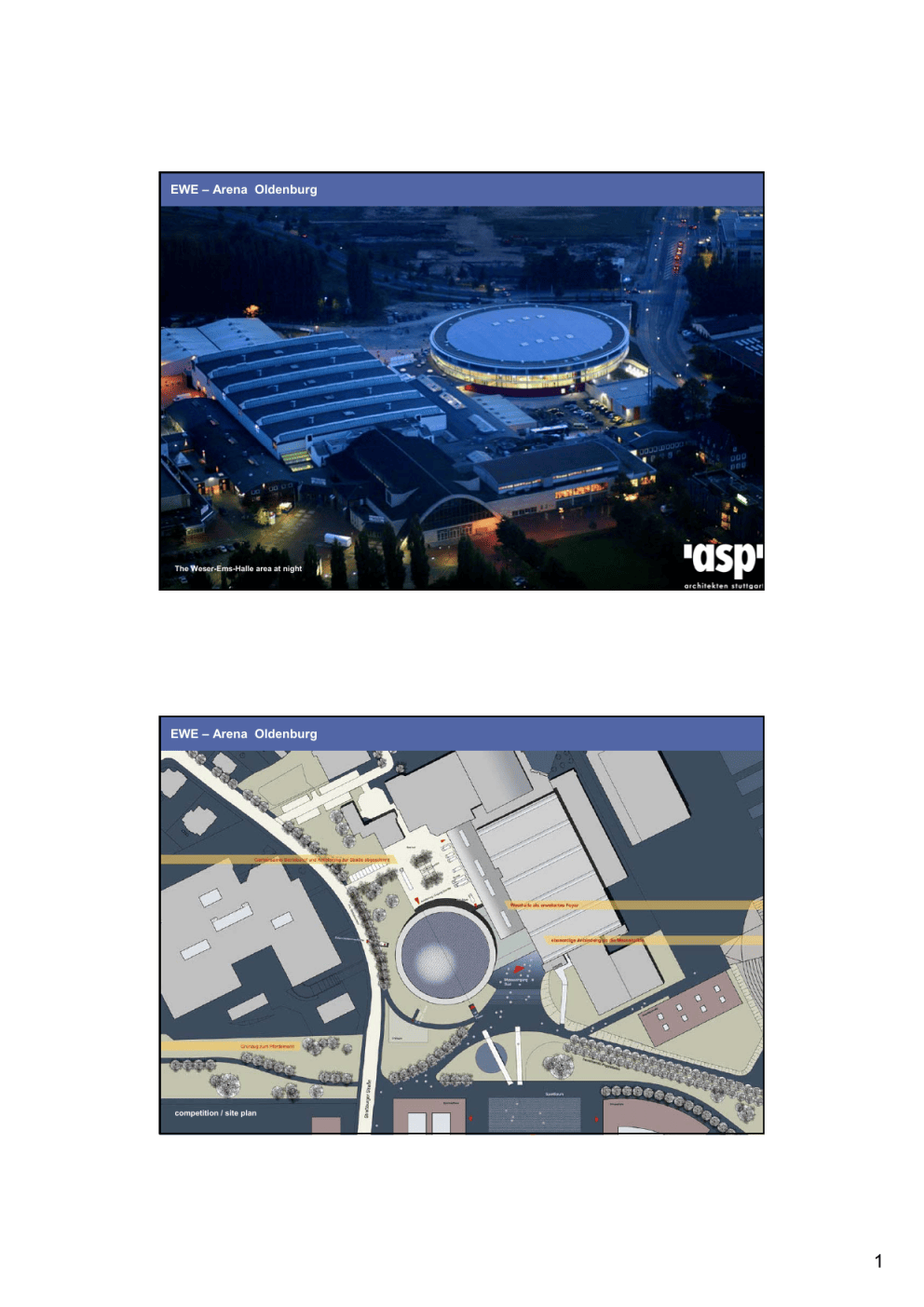

The Weser-Ems-Halle area at night
EWE – Arena Oldenburg
competition / site plan
1
EWE – Arena Oldenburg
competition modell: fully glazed surface with sunshading rings
EWE – Arena Oldenburg
ground floor
first floor
2
EWE – Arena Oldenburg
inner concrete wall and glass fassade
horizontal solar shading fins
competition: south elevation
EWE – Arena Oldenburg
staircase to the upper foyer
upper foyer / maximum of transparency
interior of the arena / no daylight required
3
EWE – Arena Oldenburg
foyer ground floor
wrapped around foyer 1st floor
multifunctional hall
EWE – Arena Oldenburg
concept of concrete ribs and pv system
building structure
as sun-shield
4
EWE – Arena Oldenburg
Cross Section
EWE – Arena Oldenburg
the prototype
5
EWE – Arena Oldenburg
lower guide rail
EWE – Arena Oldenburg
the installed system
6
EWE – Arena Oldenburg
latest pictures
EWE – Arena Oldenburg
view through the printed glas panels
7
EWE – Arena Oldenburg
night view
night view: the PV System is in parking position
EWE – Arena Oldenburg
Client
Eigenbetriebe Weser –Ems- Halle
Occupant
Weser-Ems-Halle GmbH
Project timeline
Competition 2003
Planning and construction 2003 -2005
PV-System
screen 36m x 6,7m, 240 m²
18 segments with 8 modules each (4 PV panels, 4 printed glass panels)
PV cells: Solarnova SOL 205 GT Monocrystalline
rail system approx.120m length (200° of 360°)
Start of operation: July 2006
981 KWh/m² per year expected in Oldenburg
solar gain of the system per year: 10,645 KWh / 21,800 KWh (extended)
Location
Maastrichter Strasse / Oldenburg
Overall building costs
approx. € 8,9 million
Gross volume
57,000 m³
Gross floor area
8,500 m²
8
