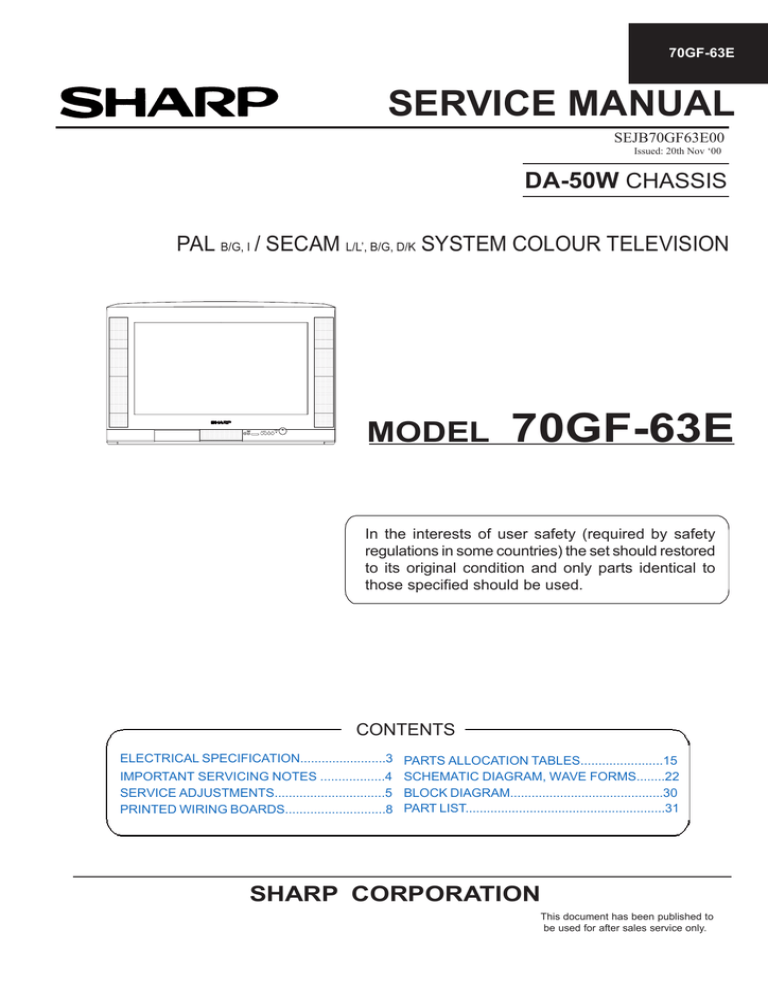

70GF-63E
SERVICE MANUAL
SEJB70GF63E00
Issued: 20th Nov ‘00
DA-50W CHASSIS
PAL B/G, I / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION
MODEL
70GF-63E
In the interests of user safety (required by safety
regulations in some countries) the set should restored
to its original condition and only parts identical to
those specified should be used.
CONTENTS
ELECTRICAL SPECIFICATION........................3
IMPORTANT SERVICING NOTES ..................4
SERVICE ADJUSTMENTS...............................5
PRINTED WIRING BOARDS............................8
PARTS ALLOCATION TABLES.......................15
SCHEMATIC DIAGRAM, WAVE FORMS........22
BLOCK DIAGRAM...........................................30
PART LIST........................................................31
SHARP CORPORATION
This document has been published to
be used for after sales service only.
1
70GF-63E
SERVICE MANUAL UPDATE LOG SHEET
Technical Report #
Technical Bulletin #
Cause / Solution
Part #
Page #
Application
Data /Serial #
Use this page to keep any special servicing information as Thecnical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly on Part List Section.
If you need more information, please refer to the Technical Report (Bulletin).
2
70GF-63E
ELECTRICAL SPECIFICATIONS
•Power Input .......................220V-240 Volts AC 50Hz
INTERMEDIATE FREQUENCIES:
•Power Consumption
Normal Operating....................................88W
•Picture Carrier Trap
L’..........................................................33.9MHz
L, B/G, D/K, I.......................................38.9MHz
Stand-by Operating...................................1W
•Audio Power Output Rating
Internal Left Speaker.....................10W (MPO)
Internal Right Speaker..................10W (MPO)
Internal Centre Speaker...........10W (MPO)
Speakers
Left / Right.........................7Ω 12W, 6 x 12cm
Centre................................7Ω 12W, 6 x 12cm
Convergence.........................Self Converging System
Focus....................................Bi-Potencial Electrostatic
Sweep Deflection...........................................Magnetic
•Sound Carrier Trap
L’..........................................................40.4MHz
L, D/K...................................................32.4MHz
B/G.......................................................33.4MHz
I............................................................32.9MHz
•Adjacent Sound Carrier Trap
L’..........................................................32.4MHz
L, D/K, B/G..........................................40.4MHz
I...........................................................40.9MHz
•Adjacent Picture Carrier Trap
L’..........................................................41.9MHz
L, D/K, I................................................30.9MHz
B/G.......................................................31.9MHz
•Aerial Input Impedance
VHF/UHF...........................75 ohm Unbalanced
•Tuning Ranges..............45.75MHz thru 855.25 MHz
CATV Special Channels
•White Level
Set the brightness control, with no signal connected, so that the CRT cathode current is 600mA. The maximum
correction applied to each cathode current to achieve a screen temperature of 8550 degrees K-1 MPCD should not
exceed 15% of its original value.
X=0.290
Y=0.300
Specifications are subject to change without prior notice.
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line
cord plug and power receptable, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer
servicing to qualified sercice personnel.
3
70GF-63E
IMPORTANT SERVICING NOTES
Only qualified service personnel are allowed to carry out mintenance and repair of this receiver.
SERVICING OF HIGH VOLTAGE SYSTEM AND CRT
It is important that the static charge is removed from the high voltage system when carrying out
work on the receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated
lead) from the CRT cavity connector to the CRT ground tag. This must be carried out with the AC
supply disconnected from the reciver.
Note the following:
• The CRT in this receiver employs Integral Implosion Protection.
• If the CRT has to be changed it MUST be replaced with the correct type for continued safe
working
• DO NOT lift the CRT by its neck.
• When handing the CRT, ensure that shatterproof goggles are worn.
• Ensure that the CRT is discharge before handling.
X-RAY
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions
and servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem
when in close proximity to the receiver for long periods of time. To reduce any risks associated with
this, please observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 33 KV,
(at a instantaneous beam current of 1800µΑ).
2. Ensure that during normal operation the EHT does not exceed 32KV±1.5KV (at a beam current of
1600µΑ). This level has been pre-set in the factory. Always check that this level has not been exceeded
after carrying out any repair on the receiver..
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may
cause excessive x-ray radiation.
BEFORE RETURNING THE RECEIVER TO THE CUSTOMER
In addition to the above checks, the following should also be carried out before returning the receiver
to the customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or
pinched by any other parts.
2. Ensure that all protective devices are in good condition. These will include non-metallic control
knobs, insulating fish papers, cabinets backs, compartment covers or shieds, mechanical insulators,
etc.
4
70GF-63E
SERVICE ADJUSTMENTS
All the adjustments required for this chassis will be done in Service Mode, except G2 and Focus.
• G2 ADJUSTMENT
1.Receive cross hatch pattern signal.
2. Set contrast to 80/100 and brightness to 40/100.
3. Connect the oscilloscope to the red cathode and adjsust G2 to read
140V on the sensor pulse as in the drawing:
NOTE:
Oscilloscope should be adjusted for vertical TV field trigger and synchronized
with wideo signal.
140 V
CH1 gnd
• SERVICE MODE FUNCTION
This mode function is provided to assist with the settings of those adjustments that may vary from one
Picture Tube to another, or between models.
In order to use the Service Mode:
1. Connect Test Pattern signal to antenna terminal.
2. Press main switch to «OFF».
3. Press volume-down and channel-up buttons and
main switch to «ON» simultaneously.
4. Service mode is now entered.
CH
1
2
The required adjustments can then be made from the Remote Control Unit.
The only buttons required are the following:
Up/Down-channel for movement in adjustment options menu; Up/Down-volume are used to carry out an
adjustment in said menu; ON/OFF is used to memorize a new adjustment.
Adjustment menu is as follows:
-SERVICE SOFTWARE AND HEXADECIMAL
COUNTER DISPLAY: «SW ON XXXX SW OFF
XXXX HOURS ON XXXX
-HORIZONTAL SHIFT.
-EAST WEST WIDTH.
-PIN PHASE.
-PIN AMP.
-CORNER AMPLITUD.
-CORNER SYMMETRY.
-VERTICAL LINEARITY.
-VERTICAL AMPLITUDE.
-S CORRECTION.
-VERTICAL SHIFT.
-RED GAIN.
-GREEN GAIN.
-BLUE GAIN.
-RED CUT OFF.
-GREEN CUT OFF.
-BLUE CUT OFF.
-ALTER NVM PAGE.
-ALTER NVM POSITION.
-ALTER NVM VALUE.
-TELETEXT MIX MODE CONTRAST.
-TELETEXT CONTRAST.
-OSD CONTRAST.
-DVCO ADJUSTMENT (Only NTSC).
-DVCO ADJUSTMENT (Only PAL).
-AGC ADJUSTMENT.
-AFT ADJUSTMENT.
-ROTATION OFFSET.
-AUTOINSTALLATION ON/OFF.
To exit service mode, press main switch ot OFF.
Adjustment menu is as follows:
All adjustments for Geometries are based on internal pattern (fig.1)
The procedure for making adjustments is as follows:
Horizontal:
-Adjust HORIZONTAL SHIFT.
-Adjust E-W WIDTH.
-Adjust PIN PHASE.
-Adjust PIN AMPLITUDE.
-Adjust UPPER CORNER CORRECTION.
-Adjust LOWER CORNER CORRECTION.
Vertical:
-Adjust VERTICAL AMPLITUDE.
-Adjust S-CORRECTION.
-Adjust VERTICAL SHIFT.
-Adjust VERTICAL LINEARITY.
Fig.1
5
70GF-63E
1− HORIZONTAL SHIFT
a) Internal pattern signal will be displayed.
b) When volume-up button is pressed, picture moves to the left.
c) When volume-down button is pressed, picture moves to the right.
d) Adjust the horizontal location to obtain picture centering (fig. 2).
Fig. 2
2− E-W WIDTH
b) When volume-up button is pressed, horizontal scanning increases.
c) When volume-down button is pressed, horizontal scanning decreases.
d) Adjust the horizontal amplitude to obtain 9% overscan (fig. 3).
Fig. 3
3− PIN PHASE
b) When volume-up button is pressed, slide pincushion changes.
c) When volume-down button is pressed, slide pincushion changes.
d) Adjust the PIN PHASE to obtain condition as in (fig. 4).
Fig. 4
4− PIN AMPLITUDE
b) When volume-up button is pressed, slide pincushion changes from
pincushion to barrel shape.
c) When volume-down button is pressed, slide pincushion changes from
d) Adjust the PIN AMPLITUDE to obtain condition as in (fig. 5).
Fig. 5
5− CORNER AMPLITUD
b) When volume-up button is pressed, slide pincushion changes from
d) Adjust the CORNER AMPLITUD to obtain condition as in (fig. 6).
Fig. 6
6− CORNER SYMMETRY
b) When volume-up button is pressed, slide pincushion changes from pincushion
to barrel shape.
d) Adjust the CORNER SYMMETRY to obtain condition as in (fig. 7).
Fig. 7
7− VERTICAL LINEARITY
b) When volume-up button is pressed, upper picture scanning decreases and
lower picture scanning increase.
c) When volume-down button is pressed, upper picture scanning increases and
lower picture scanning decrease.
d) Adjust the vertical symmetry to obtain symmetry scanning between upper and
lower picture (fig. 8).
Fig. 8
8− VERTICAL AMPLITUDE
b) When volume-up button is pressed, vertical size of picture increases.
c) When volume-down button is pressed, vertical size of picture decreases.
d) Adjust the vertical size to obtain overscan (fig. 9).
6
Fig. 9
70GF-63E
9− S-CORRECTION
b) When volume-up button is pressed, upper and lower scanning decreases, and
center scanning increases.
c) When volume-down button is pressed, upper and lower scanning increases,
and center scanning decreases.
d) Adjust the S-CORRECTION to obtain a balance between upper, lower and
center (fig. 10).
Fig. 10
10− VERTICAL SHIFT
b) When volume-up button is pressed, picture moves up.
c) When volume-down button is pressed, picture moves down.
d) Adjust the horizontal location to obtain picture centering (fig. 11).
Fig. 11
COLOUR ADJUSTMENT
The following adjustments are only required when Picture Tube or
IC801 are changed:
1. RED CUT OFF / GREEN CUT OFF / BLUE CUT OFF
1.1 Adjust G2.
1.2 Tune a white card.
1.3 Adjust colour to minimum.
1.4 Position colourimeter in the center of screen.
1.5 Adjust brightness and contrast to obtain a luminance of
≈20 NITS.
1.6 Operate in Service Mode and select location RED CUT
OFF / GREEN CUT OFF / BLUE CUT OFF, to obtain colour
coordinates:
X=0.290 ± 0.015
Y=0.300 ± 0.015
To increase press volume-up button and to decrease press
volume down button.
RED CUT OFF
alter «X» coordinate.
GREEN CUT OFF
alter «Y» coordinate.
BLUE CUT OFF
alter «X» and «Y» coordinate.
2. RED GAIN / GREEN GAIN / BLUE BAIN
2.1 Using brightness and contrast buttons, select a
luminance of ≈120 NITS.
2.2 Operate in Service Mode and select location RED GAIN
/ GREEN GAIN / BLUE GAIN, to obtain colour coordinates:
X=0.290 ± 0.015
Y=0.300 ± 0.015
To increase press volume-up button and to decrease press
volume down button.
RED CUT OFF
alter «X» coordinate.
GREEN CUT OFF
alter «Y» coordinate.
BLUE CUT OFF
alter «X» and «Y» coordinate.
2.3 Exit Service Mode and check colour coordinates «X»
and «Y» at 20 and 120 NITS. It may be necessary to repeat
procedure 1 and 2 of COLOUR ADJUSTMENT.
DVCO ADJUSTMENT (PAL)
a) Receive Philips pattern signal.
b) When Stand-by button is pressed (Remote Control
Unit), start
DVCO ADJUSTMENT (NTSC)
Adjust not required.
AUTO INSTALLATION OFF/ON
When ON is selected, the TV will perform the
autoinstallation sequence as soon as service mode is
removed.
PROTECTIONS CANCEL
a) Connect Test Pattern signal to antenna terminal.
b) Press main switch to OFF.
c) Press volume-down and channel-up buttons and
main switch to ON simultaneously.
d)»Service Software Vxx.xx» appears o screen.
e)Press main switch to OFF.
AGC ADJUSTMENT
a) Tune the TV into CH10 (pattern generator).
b) Adjust the signal strength to 57dB µV
c) Press the stand-by button on the Remote Control
(red button).
The TV will perform automatically the AGC.
AFT ADJUSTMENT PAL BG - I, SECAM L
a) Tune the TV into CH E69 (pattern generator).
b) Press the stand-by button on the Remote Control
(red button).
The TV will perform automatically the AFT.
AFT ADJUSTMENT SECAM L’
a) Tune the TV into CH F04 (pattern generator).
b) Press the stand-by button on the Remote Control
(red button).
The TV will perform automatically the AFT.
ACCESS TO NVM
Press CH ∧ to move in the following sequence:
ALTER NVM PAG⇒ALTER NVM POS ⇒ALTER VNM
VAL to alter presseting adjustments, press up/downvolume buttons on ALTER NVM VAL.
ROTATION OFFSET
a) Put the TV set looking east or west.
b) Tune the TV into a cross hatch pattern signal.
c) Enter into Service Mode.
d) Select Rotation Offset adjustment with up-down
channel buttons.
e) Adjust properly the image rotation with up-down
volume
f) Press main switch to OFF.
CAUTION: Do not change NVM VALUE to avoid
risk of serious damages to TV set.
!
CONTRAST ADJUSTMENT
Up/Down volume buttons are used to adjust the
contrast of the following items:
-TELETEXT MIX MODE CONTRAST.
-TELETEXT CONTRAST.
-OSD CONTRAST.
7
70GF-63E
MOTHER UNIT PRINTED WIRING BOARD. Component side.
(SW2)
S705
R791
R790
J344
C706
(OPC)
R792
C739
(G)
C719
F7241BMNF
R728
+
R763
C1824
J85
JF48
J334
FB501
R553
J207
2
J326
3
D605
2
R533
R616
J178
J175
J176
J177
R603
R608
D610
C619
R536
J264
JL14.
(AV).
R408
(EW)
20
1
JL1
JF50
C648
L603
21
C611
JF51
L605
TP601
21
20
J306
R611A
L612
4
F601
J316
C620
R610 C610
6
(MO)
R614
(YC)
Page 9
L611
3
D516
6
D608
7
C642
C641 C618
5
D604
JL2.
J226
J244
C528
C611A
C637
TP602
4
8
12
C601
Q601
D623
MODULO_DIGITAL
+
C634
3
9
J288
J300
D603
E
10
J173
R641
FB601
C
2
4
5
1
11
5
4
J211
+
6
R503
JL17
1
B
12
J172
J210
(F)
JF57
L609A
7
J209
JF56
C613
(L5)
C615
C526
J208
JF10
R613
T601
R501
R609
C631
D613
(L2)
R612
(L4)
J174
J171
+
FB603
Q605
8
(H)
R628
R624
L606
D612
R617
L609 JF1
D606
D621
C607
9
R623
B
JF55
R714
R606
10
R604
R518
Q602
E
+
R713
J321
D611
1
C504
5
+
18
R730
R643
C720
D722
FB701
FB703
FB704
F602
JF9
1
X
1
2
3
4
5
6
7
8
9
8
+
D609
L604
C638
JF8
Y
0
R727
JF28
J320
C705
J100
D711
FB702
C616
R619 C509
J134
C714
C
20
IC501
J101
J133
G
11
C501
+
S
D720
+
J284
D714
Q701
D712
D
12
C723
FB705
+
R716
D1809
C1811
L502
3
13
D718
10
C713
14
L705
T701
D719
C711
(PW)
1
R1
C1812
D716
9
15
IC706
(CW)
THE ACTIVE SECTION
IS INDICATED WITH
THE "
" SYMBOL
C710
(H).
J67
J68
R723
CAUTION
R1820
+
16
J69
D703
1
C721
+
R715
C704
R1822
D1804
+
D704
Q912
E
1
R741
D702
15
R1821
+
C703
C
J70
R742
IC1801
1
+
JF29
POR701
14
2
C1807
C1823
L702
L703
J327
J33
J99
C746
17
.
C770
R771
C1825
C702
2
J86
F701
(A)
D701
K7241BM
J317
1
D707
3
5
+
18
2
(K).
+
J17
R770
D708
1
E
DIP
+
4
T3.15AH
1
20
19
J10
C724
1
JF54
C718
D734
D731
JF53
2
3 (AA)
C
1
J4
IC701
+
21
CF701
Q711
3
(STB2)
1
(ST)
R1036
+
22
+
S701
J5
L701
D1002
FB1002
C707
+
23
D1001
J6
S704
S703
(RC)
S702
C701
R721
M1000
(SW1)
R703
+
24
LP701
QKI
K7240BM
IC1008
R778
C632
10
11
12
13
14
15
16
1
70GF-63E
.
1
4
C356
3
C365
9
C376
6
(SB)
12
6
JL26
12
J275
C204
L203
J278
23
J131
R233
2
TU
AGC
+
22
24
9
J170
CL
25
26
27
28
29
30
1
(L2)
TH201
21
J225
C206
R232
TP201
20
3
DA
AS
C218
19
(SA)
1
C215
C426
4
C209
JL19
J274
R436
FB303
R424
B+
J260
1 (FV)
C422
1
+
2
18
J130
J129
C329
C210
JF19
C325
C211
33V
C821
AV
J348
J347
R420
R425
C324
C323
5
J271
J301
J252
J349
J250
J280
R451
J266
J265
C415
JL12.
R426
R418
FB302
Page 8
C437
+
(AV)
J331
+
1
1
IF2
+
+
2
5
+
J269
R419
SF201
IF1
R231
J270
GND
C205
C229
C433
JL12
6
C228
1
+
1
JF6
5
5
SF203
R464
FB301
7
JL15
6
J323
J248
J169
J167
J168
SF202
1
J314
JL12.,
J224
JL12..,
GND
(YA)
J253
J189
C313
C322
100Hz
J255
J322
J128
J147
J146
J127
J166
J165
1
C818
JL27
8
C219
R234
6
J243
IC203
(YB)
1
R306
R307
J82
J81
J80
J79
J78
J163
J164
J160
J161
J162
J303
J199
J198
JL14
JL12,
JL28
J185
C514
X801
50Hz
R814
J251
12
JL2..
C825
J343
J236
J246
R455
J145
C343
J159
J158
J151
L803
D622
R650
J125
C306
C342
Q502
R1058
R620
J318
J113
J114
J115
JF35
JF33
JF32
JF34
J139
R534
J138
JL17.
C520
D510
J183
R1059
J90
R550
R526
J87
L501 J102
J103
+
J179
6
+
1
JL29
R815
J234
J249
+
J230
J221
J222
J241
GND J242
JL12,,
C812 1
+
J226
J244
C804
J228
JL31
C820
+
+
JL7.
D803
L801
9
1
+
+
J232
1
+
10
L201
CF202
J203
64
(K)
C220
J223
C822
9
JL29.
J202
J307
33
J231
JF14
+
JL31. C644
J200
J309
J201
C802
D623
D206
J206
1
J216
J214
J157
11
+
J194
X301
C314
+
+
J193
R519
211
JL2.
C815 IC801
J191
J192
J190
C311
+
R230
JL27.
+
J187
+
J152
J319
J212
JL10.
J288
JL28. JL26.
J156
J150
12
C326
C315
R541
R530
13
64
33
32
15
J300
C305
+
J180
(SC)
J155
R618
+
R501
R1019
J141
J142
J143
J144
J153
J154
R229
14
1
R1020
+
TP701
15
+
J136
J137
J118
J119
J140
IC305
JL6.
32
16
L301
+
+
R508
R1064
J120
(STB3)
+
JF31
J91
R1008
J311
+
J94
(RGB)
C524
C332
JL10
C1001
R1022
J121
J122
1
C1031
R1018
+
+
J106
3
+
J93
J116
J88
J337
(STB1)
J297
L2401
J312
X1002
J92
1
+
1
IC1005
JL11.
J95
L2402
C511
J304
JL11..
J74
X2401
ESPA¥A JL18
JL7
+
J71
C1814
C536
R533
17
J75
J72
52
JL11
17
18
J64
J61
R1836
J177
J63
J62
L1801
J178
L503
J31
JL2
L1002
R1832
C501
J83
50Hz
IC1002
J60
10
8
(RT)
1
(STB4)
+
D1809
R1834
3
11
7
19
1
12
6
20
J305
J32
+
J40
J41
J28
J42
C377
J43
J39
J117
R359
21
J47
L1001
C1027
C382
J50
+
JL1.
J49
J44
J45
J46
R1055
R1027
5
IC302
C378
11
L316
C370
J30
C1032
J27
GND
(L3)
C372
L315
J48
1
26
J14
1
10
R1047
R1050
(VS)
27
C373
+
IC2401
R315
3
C341
J24
TRC
(K).
C368
23
4
22
L351
+
.
IC301
C351
L350
1
F7240BMNF
20
+
1
R1003
J12
J13
C352
(S)
IC304
1
(FV).
C431
C430
JL6
+
J8
(HD)
J9
L318
L353
+
1
1
6
24
C363 C361
2
(CC)
(SS)
L352
1
10
+
3
C362
8
5
3
C358
C353
7 1
C381
J401
L317
+
KITP7240BMNF
CN3
MOTHER UNIT PRINTED WIRING BOARD. Component side.
31
Y
32
X
33
70GF-63E
TH201
33
X
32
31
30
J278
29
JF20
C429
R1801
C1801
R1804
J87
R1834
C521
D411
C416 R428
D405
J183
28
27
26
25
R511
R516
24
10
23
22
21
R502
R512
J178
+
D601
C515
R522
R450
R40
C411
R414
D422
K
R457
C401
R413
C414
C410
C409
19
18
Q404
R412
K
D415
C406
R415
R434
R403
C402
R405
D414
20
R533
L503
J179
C644
R530
R406
C403
R404
C405
C404
J266
J265
R416
D417
K
D410
D412
K
R410
R462
Q405
R453
K
Q406
C4
C535
FB301
C413
D408 R427
R419
R426
K
D413
K
R648
MODULO_DIGITAL
J248
R452
K
J177
R505
B
J185
C606
R451
R456
J280
J252
C435
J349
J348
C436
J347
R420
K
+
J281
J102
R544
R551
Q507 C636
Q606
R528
R547
E
Q502
IC501
J103
R526
R550
J138
R548
C523
J139
C511
+
R2412
R2411
R2410
JF32
JF33
C2409
R2404
C826
Q805
R817
D1809
R1806
C1802
R1817
R1823
R1824
R1818
C1803
R1031 R2405
R1029
52
C1017 R2409
X2401
JF30
JF34
JF35
J318
J115
J114
J113
J151
J343
R811
C434
JF38
J250
R454
C415
C446
R421
R423
D407
D1810
5
R2402
JF31
J91
R620
J90
D1006
C825
X801
JF44
FB801
Q803
C444
K
C418
C1809
IC2402
14
K
C2406
R1030
J60
R644
D2404
D2403
C643
R1054
R229
J294
R239
J219
J240
C447
R812
R418
R431
C421
C529
R552
J226
J244
C533
J322
J270
AV
C428
R447
C431
JF22
JF21
R1003
IC2401
C1027
Q1001
R1035
J310
R1033
J335
+
J159
D1007
R470 C817
J325
C818 +
D623
J269
C419
R429
C514
J246
JF39
C516
J288
J300
J228
J230
(YB)
J211
R521
Q501
K D420
R248
R252
Q209
R815
J234
J249
R816
IC503
R532
R455
K
R251
R243
C531
C412
R436
Q503
K C615
D416
L203
J274
Q804
J236
R501
J180
L801 J231
J232
D803
R818
FB302
+
R506
K D510
J214
D804
J251
R422 C445
D409
+
R463
Q201
C1030
R468
JF12
R459
R244
TP201 C224
C223
J279
Y
TU
R241
C225
R218
1
R235
C443
R466
J220 C807
C808
R814
Q802
(K)+
R417
+
J275
AS
R236
D203 K
R461
R458
2
C217
C432
IC401
C422
FB303
C417
C215
C216
R233
Q408
JF11
R802 C804
R545
D508 C520
+
R809
J332
K
C532
R549
R504
J212
C824
C502
C507
17
Page 11
CL
R234
R465
C821 D419 K
+
JF3
R232
J319
J323
R464
J331
K
J190
R519
J194
C803
J253
J255
Q403
C427
R445
JF37
C426
DA
3
(YA)
+
IC203
J301
J271
C214
JF2
B+
R437
R467
KD418
C212
R225
R231
R245
Q207
C209
L202
R219
C440
C437
C229
R1052
+
4
R1051 R258
C819 C439
+
IF2
JF4
C204
C218 +
R242
+
R220
L205
R240
R249
R449
(FV)
C433
C438
R432
R203
C420
R430
R433 R469
Q210
IF1
C205
5
J193
C1023
J218
R813
R255
R227
C213
R228
C441
J224
D204
R216
C1024
L50
R515 C503
R510
J137
R535
D507
R803
R1028
+
R508
D622
IC801
32
J191
J192
+
JL14
C230
R257
C207
C208
C222
J243
J314
R256 J289
R254 R226
R246
C822
SF202
JF5
28
L204
C228
J324
C524
11
C512
R517
R507
Q801
C1025
+
C812
J221
J222
J241
J242
SF203
C203
64
R806
C820
IC201
6
J187
L803
J216
R554
R534
J136
R808
R810
C801
1
C221
C811
C501
J88
J150
K
R804
C536
TP701
+
J223
L2401
L2402
C802
R801
+
C220
SF201
FB802
L1801
R1836
R460
C211
J225
7
D801
J203
J260
+
R247
C206
R217
+
C219
D1008
J309
J201
R1832
R514
Q505
+
C617
C809
R542
J200
J199
+
R205
8
+
K
J202
J307
Q208
R237
K
J206
D802
CF202 R259
C816 C815
R1835
R1822
R541
K
R
R1821
6
J312
K
D617
7
8
R618
R230
5
J106
J152
R807
Q9
C1814
Q2401
R2403
C823
J303
J162
J161
J160
J164
J163
J166
J165
J167
1
L201
J156
C1822
K
K
K
R411
R253
JF6
K
C813 R622
C814
R208
4
1
R238
JF14
R209
R204
J168
J157
J154
J155
R301
C342
+
R320
C343
+
C311
C313
R318
C322
C323
R323
J286
R211
+
K
R1004
5
IC202
J189
JF19
C314
R319
J142
J143
J144
J153
R1802
+
R215
R210
C226
K
C227
9
R321
C325
C210
+
D205
D303
+
C324 J169
8
J354
10
K
K
C326
R322
X301
J170
11
C334 C329
+
+
+C315
C335
R1059
R1058
C305
K
12
D1003
C306 R304
R302 R303
D302
D304
64
K
D305
C316
K
K
R1810 R1811
11
10
9
J118
J119
J140
R1032
R1019
(SC)
J125
J145
C312
J94
J311
D615
(STB3)
R1020
C383
J353
J127
J146
C317
C318
J147
C327
JF7
J128
C328
C330
J129
C333
J131
C309
C310
IC305
C331
J130
13
R1060
(STB4)
J338
R1061
R1008
R2407
FB1001
J122
J120
C380
C1022
X1002
R1023
C1019
1
D618
K
J297
J93
J116
J339
C1002
14
J95
J92
J141
C1033
J121
J126
C332
R1022
J98
C1001
C321 IC1007
C1020
.
D2402
C2402
J71
R2406
Q608
J74
K
R1018
+
L301
+
R306
R376
IC1004
IC1006
J336
J337
+
15
D1009
K
K D1004
R1041
1
J158
IC1003
J72
J304
C2405
C2404
J61
J75
C1005
C1026
GND
12
C2401
R1057
Q1007
25
D1011 (STB1)
R1005
C1031
J78
J79
J80
IC1005
J82
J81
C1028
R1002
R1001
R1044
D1010
K
K
D1005
(SA)
26
R1046
R1056
27
F7241BMNF
C1021
J302
J62
75
17
32
R1840
TRC
13
R805
R1024
C1034
Q1005
J63
C1029
J65
Q1004
1
R309
J28
R
F
C1821
J41
J198
J64
C1014
R307
R316
R314 C339
C320 R311 C319
R354
R1053
C1018
R1042
J40
IC1001
R1045
Q607
R626
R1025
16
J39
J117
R2408 R2401
D2401 C2407
C2403
R1049
R1043
16
IC1002
C430
+
J42
J283
R448
C2408
26
R1026
+
1
17
J13
J14
J24
R1027
R424
R425
(SB)
J305
(RT)
R1050
R1047
J49
J48
J50
J47
C370
R1021
J32
J51
R372
J83
18
Q1006
L318
(FV).
J12
J350
C1032
1
J352
J341
J342
L316
J345
(VS)
C341
C365 C366
C382
Q304
R374
+
R360
IC302
J30
C451
J8
J9
(HD)
C340
J27
J46
J45
J44
R359
D301
11
R378
JF52
J351
19
20
K
J31
20
Q302
+
Q303 R361 C377
21
C371
C367
L350
L351
+
+
R356
C374
C369
R358
R317
IC304
L315 R312
R315
Q306
C372
R1055
1
C378
C379
R350
R362
R363
+
R355
C368
(SS)
(CC)
R313
C351
C373
J401
C336
R373
C358
+
20
C375
R351
Q305
C352
J43
+
11
R357
C376
C338
C362
R375
C357
R377
C360
C363
C361
4
C356
R352
C354
C350
L353
22
R308
R310
C364
(S)
C337
8
J2
C381
.
QKITP7240BMNF
L317
IC301
C359
K
23
R353
K
L352
24
C353
MOTHER UNIT PRINTED WIRING BOARD. Copper side.
70GF-63E
MOTHER UNIT PRINTED WIRING BOARD. Copper side.
.
R737
R708
R777
K D732
+
1
R613
" SYMBOL
THE "
D731
1
R715
D713
R717
C716
D715
R714
C712
R713
C714
18
R627
D624
J207
K
7
12
D603
6
11
C610
2
10
5
3
Q601
R610
9
4
C637
JF50
C648
R611 R615
JF9
R611A
L612
13
12
11
10
3
D406
K
J306
1
T601
JF1001
(MO)
R614
(EW)
D516
L605
L611
C641
JF51
4
8
7
6
D608
C618
C611A
5
TP602
C642
2
JF1008
JF1007
JF1006
JF1005
JF1004
JF1003
JF1002
+ C528
C601
L603
14
8
L601
JF56
C638
D609
9
11
L604
8
TP601
1
+
15
R722
+
R625
R612
D605
C632
16
J284
D711
FB702
R765 R766
FB703
C633
E
R536
R401 K D401
(AV)
10
9
L609
B
C611
R407
C408
K D421
R730
JF1
Q605
1
11
C715
D604
K
D404
K D420
J132 D727
D719
J321
J171
D612
J173
J209
K
D620
C639
R718
K
C634
R402
D402
R435
D403 K
R409
JF29
R774
R724
R750
J320
J100
Q603
2
(AV).
D415
Page 10
(F)
JL14.
K
12
R617
R408 J264
Q404
K
L606
C631
1
R450
IGITAL
422
K
FB601
+
C619
13
1
C613
C620+
K
K
D614
JF57
D502
R646
C646
R525
D504
(YC)
R634
JF16
14
Q702
C607
C640
K
C442
Q602
FB603
D613
C717
R556
C538
R558
R524
Q506
D503
K
R648
C515
C529
C518
K
C645
D515
C517
R647
R716
D712
R720
C705
R606
D621
D606
C635
J316
D610
R608
R559
C527
D506
R527
R520
K
C525
0
JF10
J210
R555
R557
C537
C516
8
J701
R706
C735
D720
J326
R642
(H)
R518
R616
R560
R537
R538
C539
C526
+
211
4
Q604
D619
JF15
J208
K
Q701
3
E
+
6
D611 1
R601
R605
16
15
K
R719
FB704
+
R609
03
32
1
IC705
R628
R607
R603
J174
J175
J176
R540
R502
R512
J178
J177
C530
D726 K
C720
R539
L501
R749
D722
D509
C504
R561
R562
C540
R533
J134
K
JF24
IC502
R553
JF55
R503
R513
C513
+
R643
R511
C534
JF48
J334
FB501
C508
10
J133
C509
C505
18
17
C713
10
K
C616
+
1
R768
L609A
J101
R623
C522
C506
19
D730 C738
C711
T701
9
R619
J172
R641
J281
2
7
C510
D714
20
C710
R762
C741
C722
C703
R723
D716
R746
FB705
(A)
21
D704
D703
J67
J68
R745
C743
C742
L705
R747
8
J85
J86
L502
1
IC707
9
D702
T702
D728
IC706
D718
R748
D701
C746
C704
R763
K
R727
D721
K
+
4
C737
R741
1
FB701
(H).
+
2
R769
POR701
3
J69
C721
16
+
C511
R707
C740
C1815
C1811
C723
+
R509
R743
C1
3
6
R742
R744
R1837
+
+
R775
1 IC708
R728
R1830
JF28
C1812
J70
J346
R1820
C1807
C1804
E
D1804
R1841
R1839
C1813
+
R1831
K
K
D729
+
Q912 C1823
822
C1808
D707
J99
D1805
R1819
R1825
C1825
R1835
Q715
R771
C770
J33
C1824
C1810
1
C701
C702
Q717
F701
L702
R776
CAUTION
2
(G)
(CW)
D733
J317
J327
D734
C745
D708
R770
C739
22
B
D1809
C1806
JF53
2
THE ACTIVE SECTION IS INDICATED WITH
C725
4
Q902 R1805
R1833
S702
S703
S704
+
R733
Q709
C724
J17
R711
K
J340
(STB2)
R732
C728
23
Q703
C718
Q906
R1809
R1803
Q903
R1804
822
4
L701
R712
L703
IC703
R1813
Q909
R1816 R1815
Q905
Q901
R1808
1
6
3
R1802
6
1
C1820
R1814
Q908
K
K
IC701
D706
R1048
C1805 R1812
+
Q904
5
R1807
Q907
(K).
C706
J4
R739
R740
D710
K
R1840
1
JF54
.
R703
S701
R721
3
8
24
R778
LP701
Q708
R735
3 J10
IC704
C730
C731
J344
R736
+
C707
R792
CF701
R1017
C719
C732 R738
R791
R790
9 R787
1
4
F7240BMNF
C733
R788
IC702
J5
R1036
Q1003
Q711
R767
Q714
R1012
FB1002
R1037
JF46
D725
Q710
R754
R789
C1015
J6
JF47
Q712
R752
R1040
R1038
D1001
R755
R1039
R758
R751
Q1002
M1000
D1002
K
R447
S705
J313
D724 K
C501
25
7
JF8
Y
6
5
4
3
2
1
X
0
70GF-63E
DINAMIC FOCUS UNIT PRINTED WIRING BOARDS.
25
24
24
23
23
GND
DYN.INPUT
GND
D1602
+
C1604
.
F7314BMN0
B
Q1601
Q1601
C1603
C
C1603
17
C1602
C1602
component side
E
18
20
R1601
FOCO
R1601
19
D1601
D1601
C1604
20
D1602
+
Copper side
21
FOCO
.
19
18
17
R1603
R1603
C1601
21
22
DYN.INPUT
22
F7314BMN0
25
C1601
16
16
15
15
T1602
T1602
14
14
R1602
13
3
4
5
3
4
5
12
(FF)
2
2
2
3
1
2
4
K7314BM
1
11
1
3
(FF)
4
5
1
5
12
(F)
(F)
R1602
13
10
11
10
9
8
8
ESPA¥A
9
7
7
6
5
5
4
4
1
1
6
(EW)
(EW)
3
3
2
2
1
1
X
X
0
Y
1
2
3
4
5
6
7
7
12
6
5
4
3
2
1
0
Y
70GF-63E
CRT MODULE UNIT PRINTED WIRING BOARDS.
FRONT A/V UNIT PRINTED
WIRING BOARDS.
Comp. Side
Comp. Side
10
.
L1604
14
6
7 1
2 4
35
E
B C5408
B
Q5408
J401
C5413
1
C5412
(PU)
C5414
0
1
X
2
3
4
1
(Q)
C5415
5
6
7
8
9
L318
Y
3
(B)
D5412
R5423
J73
R5425
R5422
1
3
F7318BMN0
(CC)
4
+
+
1
(FV)
R1623
D5404
C5417
R5426
5
+
Q5407
E
C1609
JL20.
K7318BM
D5405
6
(SS)
D1809
R5428
R449
J70
R1841
(H)
R5420
2
L1801
D1804
C1811
+
5
11
10
9
C1825
R1621
(L3)
8
D5411
R1832
R1820
C1814
3
C1612
7
C1613
C1812
12
G2
R5421
+
4
6
R1836
Q912
E
7
15
R1822
C1823
C
R1821
+
+
C1824
1
+
5
5
8
J72
2
IC1801
9
A
J327
4
R1834
6
C1608
ESPA¥A
(L2)
L1603
C5405
1
J78
+
9
(K)
C1807
(L2)
+
7
CN4
CRT
(MO)
(RT)
(J)
F7273BMN3
JL20
K7273BM
L317
8
2
1
X
Copper Side
L318
C428
R449
C1608
(CC)
R1619
R1617
R1618
+
.
(FV)
K
R1620
A
4
5
6
7
L317
8
3
(J)
C337
C336
CN4
1
(MO)
R317
R316
L1604
R5434 R5435
F7318BMN0
(SS)
C429
3
C1830
+
C1609
L1603
2
IC1601
+
C1815
C1613
+
C1611
(H)
R5421
Q5412
Q5410
1
R1624
R5431
0
J77
R1622
R1836
F7273BMN3
Q5411
Y
+
R1843
4
R5433
(K) 1
6
5
1
1
R5432
C5405
R1801
R1834 C1809
R1840
J79
R1802
C1801
Q902
D1810
R1804
Q904
K
D1607
CRT
C1821
C1822
9
Q901
J78
J71
R1803
R1807
R1615
10
7
R1806
C1802
R1817
R1823
R1824
R1818
C1803
Q903
Q907
R1812
C1820
R1809
R1808
J74
R1805
R1810
2
(B)
11
9
8
12
R1811
C1610
R1616
C1814
C1810
R1835
C1812
R1833
J76
Q905
C1807
L1801
C1808
C1806
Q906
C1805
R1814
+
R1831
R1822
R1821
Q908
+
8
+
+
R1813
D5405
D1809
R1832
E
J327
R1816
Q909
R1815
7
Q912 C1823
C1824
K
J5
C1804
6
R1837
R1830
R1825
R1819
E
C1825
C
D1805
J73
3
X
Q1603
Q1604
R5413
C1813
5
J70
R1839
Q5408
R5428
R1841
5
4
C5408
E Q5407 B
R5412
R5414
J75
D5403
C5417
4
0
(Q)
J4
C5409
K
3
C5415
Q5405
R5424
8
1
JF3
1
R5426
C5411
D5404
R5420
7
R5423
3
R5419
R5415
R5418
R5417
R5416
C5410
K
6
(PU)
C5414
R5422
D5410
R5425
2
+
1
5
Q5406
C5412
Y
3
9
2
JF2
JF1
1
0
4
B
2
3
J401
X
4
9
10
Copper Side
13
70GF-63E
POWER SWITCH UNIT PRINTED WIRING BOARDS.
7
Component Side
6
D6751
LP6701
S6702
D6752
S6705
S6704
S6703
R6701
OPC1
5
K7317BM
1
(A)
IC6701
F7317BMN0
T3.15AH
A
R6751
2
S6701
4
R6702
3
ESPA¥A
(H)
F6701
1
2
SW1
SW2
RC
OPC
ST
2
1
3
Y
0
2
1
X
4
3
5
6
7
9
8
10
11
13
12
14
16
15
17
7
D6752
Copper Side
6
R6738
LP6701
D6751
C6705
C6704
S6705
S6704
C6702
C6703
C6715
R6701
5
S6701
R6739
S6703
S6702
1
R6702
R6751
4
(A)
A
F7317BMN0
2
F6701
3
(H)
1
ST
RC
OPC
SW2
2
SW1
2
1
3
Y
15
14
13
11
12
10
9
6
7
8
5
3
4
CENTRAL SPEAKER UNIT PRINTED WIRING BOARDS.
Comp. Side
(CS)
K7285BM
0
X
1
2
4
5
5
14
1
R1313
IC1302
C1307
R1314
C1313
1
6
R1304
R1307
R1308
4
Q1301
R1303
3
+
C1312
2
C1308
C1305
(SB)
A
JF2
6
10
F7285BMN1
Y
(SB)
C1302
C1305
+
1
3
R1309
3
+
10
C1302
JF1
2
C1317
C1310
L1301
C1309
C1316
D1304
C1311
2
L1302
D1304
L1302
C1314
C1315
R1302 JF3
C1315
C1316 C1309
1
(VS)
L1303
D1303
C1304
1
4
(SF)
1
R1312
L1303
(CS)
D1303
C1306
R1301
IC1302
+
C1306
3
R1315
1
C1310
1
R1311
3
IC1300
3
Copper Side
(VS)
(SF)
1
L1301 C1314
4
+
16
+
17
1
J1
C1303
A
R1310
J2
F7285BMN1
1
Y
0
X
2
1
0
X
70GF-63E
F7240NF PWB PARTS ALLOCATION TABLES (component side):
Ref No
(A)
(AA)
(AV)
(AV).
(CC)
(CW)
(EW)
(F)
(FV)
(FV).
(G)
(H)
(H).
(HD)
(K)
(K).
(L2)
(MO)
(PW)
(RGB).
(RT)
(S)
(SA)
(SB)
(SC)
(SS)
(STB1)
(STB2)
(STB3)
(STB4)
(VS)
AV
C1001
C1027
C1031
C1032
C1807
C1811
C1812
C1814
C1823
C1824
C1825
C204
C205
C206
C209
C210
C211
C215
Xmm
19558
20066
166649
142494
220218
8636
121920
104902
264668
204216
63754
143764
130657
235204
222504
155549
314960
134874
9652
236474
257606
319786
316230
316230
258318
178308
255473
97790
244348
236651
216916
249428
271272
233426
303784
243078
129641
143611
153009
189331
136499
133705
136753
317246
317500
307340
317500
313436
301752
292608
Ymm
182118
207010
12496
34620
231902
157734
22860
72898
36322
222504
194310
109728
165760
222758
71628
203606
6858
18542
137414
18542
188163
221996
161798
188976
128524
233680
153466
204470
143510
178231
212852
33274
148082
200152
153416
199644
176682
161188
164490
163728
177190
163220
163220
45720
51562
81026
39116
107696
82042
24638
Ref No
C218
C219
C220
C228
C229
C305
C306
C311
C313
C314
C315
C322
C323
C324
C325
C326
C329
C332
C341
C342
C343
C351
C352
C353
C356
C358
C361
C362
C363
C365
C368
C370
C372
C373
C376
C377
C378
C381
C382
C415
C422
C426
C430
C431
C433
C437
C501
C504
C509
C511
Xmm
293624
314452
292608
310896
291338
255016
249174
272034
279146
283972
289560
290322
294386
299974
304038
301752
307848
299974
234696
258572
264668
273812
267716
292100
258318
272288
314198
267716
305054
266954
289306
300228
272034
300482
316738
317500
305816
258318
294640
214630
266446
278892
171704
181356
256794
274828
159766
143002
133350
167132
Ymm
9906
79502
84328
61722
51816
120904
120142
114554
116078
113030
116840
109982
109982
109220
109220
116586
114046
144526
218440
114554
114808
220980
220472
237998
230632
230378
228854
232156
228600
208280
219456
197358
213360
219456
212090
205486
213614
235458
197358
34798
25654
22860
222504
222504
33528
42926
145796
115824
124714
141478
Ref No
C514
C520
C524
C526
C528
C536
C601
C607
C610
C611
C611A
C613
C615
C616
C618
C619
C620
C631
C632
C634
C637
C638
C641
C642
C644
C648
C701
C702
C703
C704
C705
C706
C707
C710
C711
C713
C714
C718
C719
C720
C721
C723
C724
C739
C745
C746
C770
C802
C804
C812
Xmm
174498
179832
176784
154686
133604
178816
100330
73914
121920
102616
100330
147066
168656
141224
81280
139192
137414
118618
100076
78486
69850
94234
87122
84582
178816
78740
37338
62738
10922
46736
24892
76454
98806
32258
45466
35814
33274
118872
123952
124206
116332
146304
90678
87376
63754
37846
101092
205232
218694
246634
Ymm
69596
107188
141478
76581
46736
148590
49784
91440
53340
33274
35052
68072
79502
129286
33274
51054
58928
81026
6604
45974
30226
9652
33274
39370
91440
22352
215138
189484
171196
167386
122428
223520
230632
160274
145796
146304
106680
193040
210566
111506
166624
149606
209296
198120
198628
173990
186944
72390
66548
72390
Ref No
C815
C818
C820
C821
C822
C825
CF202
CF701
CN3
D1001
D1002
D1804
D1809
D510
D516
D603
D604
D605
D606
D608
D609
D610
D611
D612
D613
D621
D622
D623
D701
D702
D703
D704
D707
D708
D711
D712
D714
D716
D718
D719
D720
D722
D731
D734
D803
F701
FB1
FB1002
FB301
FB302
15
Xmm
226822
252476
282194
287274
258572
227584
313944
96266
232994
130301
142290
144373
166725
186944
120396
98806
103378
99314
125984
66802
91440
140208
99568
88646
128016
102616
188976
166878
13360
18542
48006
34544
62738
64770
54610
25908
117856
65887
96012
97536
110490
100838
8636
27940
188976
35306
35306
117602
183642
204978
Ymm
97790
69596
75946
34290
69088
66548
85090
220218
241985
229997
229997
167538
181254
104394
23368
58674
42164
59944
93218
30226
11938
92964
104394
90932
60706
95504
91694
63754
174752
167386
162560
167386
185166
198628
142240
136906
142494
153670
160274
139954
120904
121412
213614
214376
61722
192024
52832
227076
37338
20574
Ref No
FB303
FB501
FB601
FB603
FB701
FB702
FB703
FB704
FB705
IC1002
IC1005
IC1008
IC1801
IC203
IC2401
IC2402
IC301
IC302
IC304
IC305
IC501
IC701
IC706
IC801
J10
J100
J101
J102
J103
J106
J113
J114
J115
J116
J117
J118
J119
J12
J120
J121
J122
J125
J127
J128
J129
J13
J130
J131
J133
J134
Xmm
253492
148590
110490
104521
10414
50038
93980
99822
110490
287020
286512
118110
149199
294640
214122
214376
287274
288544
246888
291338
159258
82804
89408
236728
96774
100838
140462
173228
175768
203962
216916
219202
221488
233172
242316
235966
235966
230124
257810
255778
255778
264922
272796
307340
314198
230124
318262
320802
118364
118364
Ymm
24638
125730
58674
86106
107442
142240
124206
108712
147828
176530
157988
239471
190398
33528
180594
197612
230378
212852
227838
129794
133350
209550
159512
85090
216916
138684
133858
133604
133604
144018
128524
128524
128524
145796
193548
136144
134112
214630
138938
144526
142240
129032
129794
129794
129794
212344
131063
131063
126746
121412
Ref No
J136
J137
J138
J139
J14
J140
J141
J142
J143
J144
J145
J146
J147
J150
J151
J152
J153
J154
J155
J156
J157
J158
J159
J160
J161
J162
J163
J164
J165
J166
J167
J168
J169
J17
J170
J171
J172
J173
J174
J175
J176
J177
J178
J179
J180
J183
J185
J187
J189
J190
Xmm
183388
183388
194056
198628
230124
235966
236982
236982
236982
236982
268986
281432
283972
205740
220980
232410
236982
236982
236982
236220
289306
245872
248412
257556
259842
262127
267462
269748
272542
274828
277622
279908
297180
89408
318008
93218
131572
134112
155194
157480
159766
162052
166624
171704
178308
186690
191262
205740
312166
182372
Ymm
124968
122428
127000
132588
210058
132080
128524
126238
123952
121666
127762
126492
126492
107696
105156
108204
119380
117094
114808
111760
98806
104902
105156
103886
103886
103886
102870
100584
100584
100584
100584
100584
109220
202946
107442
90170
93218
93218
91948
91948
91948
91948
91948
91948
97282
91440
91440
105156
98044
83566
70GF-63E
F7240NF PWB PARTS ALLOCATION TABLES (component side):
Ref No
J191
J192
J193
J194
J198
J199
J200
J201
J202
J203
J206
J207
J208
J209
J210
J211
J212
J214
J216
J221
J222
J223
J224
J225
J226
J228
J230
J231
J232
J234
J236
J24
J241
J242
J243
J244
J246
J248
J249
J250
J251
J252
J253
J255
J260
J264
J265
J266
J269
J27
Xmm
211836
211836
211836
211836
238506
248920
257810
257810
276098
276098
289306
77978
139446
139446
139446
166116
182372
193548
231648
271272
271272
270256
280416
318516
170180
188976
188976
190754
190754
203200
215392
232664
271272
271272
269367
170180
188976
189230
203200
205486
215392
220218
240284
240284
269494
150622
194310
196850
241554
253492
Ymm
89154
86614
84074
81534
83312
83312
88900
84328
87884
83312
93980
71374
80010
77470
74930
73406
78486
70866
80010
72136
70104
79756
54864
71628
56388
59690
57658
67056
64516
57404
56388
206502
68072
66040
62738
54356
53340
44958
55118
37846
54102
37338
50800
48514
32258
44196
32765
32765
41656
208026
Ref No
J270
J271
J274
J275
J278
J28
J280
J284
J288
J297
J30
J300
J301
J303
J304
J305
J306
J307
J309
J31
J311
J312
J314
J316
J317
J318
J319
J32
J320
J321
J322
J323
J326
J327
J33
J331
J334
J337
J343
J344
J347
J348
J349
J39
J4
J40
J401
J41
J42
J43
Xmm
241554
287020
264414
290576
290322
241681
209550
14224
166370
228600
303022
166370
312928
252984
253746
307848
69850
272034
257810
305562
230886
196088
282194
143256
94742
214630
210540
310134
103378
101600
188976
240284
133858
133096
114300
257048
117856
261873
222504
64516
227838
225298
222758
242316
84074
243840
216458
243840
243840
260857
Ymm
39116
38354
19558
19558
9906
186690
35814
139700
69596
151892
205740
67056
32258
101346
161544
193294
17018
85598
86614
193294
138684
139446
59944
91948
195326
128524
79248
193294
138684
108712
48006
45466
107188
188214
183896
42164
124206
152908
59182
232664
36576
36576
36576
195834
215138
191262
237998
188976
184404
192532
Ref No
J44
J45
J46
J47
J48
J49
J5
J50
J6
J60
J61
J62
J63
J64
J67
J68
J69
J70
J71
J72
J74
J75
J78
J79
J8
J80
J81
J82
J83
J85
J86
J87
J88
J9
J90
J91
J92
J93
J94
J95
J99
JF1
JF10
JF14
JF19
JF28
JF29
JF31
JF32
JF33
Xmm
266192
268478
270764
288544
280924
283464
117602
286004
120142
217170
230632
232664
280162
296418
66548
66548
92202
159359
214630
230632
231394
230632
267970
270510
235712
273050
275590
278130
306070
136398
139192
183134
203962
235712
221996
217170
233426
237236
233172
233426
114808
82042
135636
289229
309118
131318
54102
214630
203962
206502
Ymm
191770
191770
191770
192278
192278
192278
225806
192278
225806
175006
167894
171704
177546
176530
162814
160274
163322
164236
160528
163322
160274
165608
162814
162814
227330
162814
162814
162814
179324
144526
144526
145542
146558
225044
145034
145034
155194
148082
141224
157734
179832
85090
77470
96266
98044
143510
174752
145034
129286
129286
Ref No
JF34
JF35
JF48
JF50
JF51
JF53
JF54
JF55
JF56
JF57
JF6
JF8
JF9
JL1
JL1.
JL10
JL10.
JL11
JL11.
JL11..
JL12
JL12,
JL12,,
JL12.
JL12.,
JL12..,
JL14
JL14.
JL17
JL17.
JL18
JL19
JL2
JL2.
JL2..
JL26
JL27
JL28
JL31
JL31.
JL6
JL6.
JL7
JL7.
L1801
L201
L203
L2401
L2402
L301
16
Xmm
209042
211582
128016
89916
102870
53594
66802
113792
87884
84328
297942
68580
68580
141224
237998
292608
201676
209804
250291
236880
213360
262382
268224
217424
278638
276098
247142
150622
130555
190754
255574
319786
265684
168656
234950
256540
245110
258064
179705
175514
262890
271018
239268
201168
166725
313944
288036
203962
203962
288036
Ymm
129286
129286
124460
23114
26670
211836
211836
93218
75692
73152
89154
6350
8890
19812
197612
145796
77216
154940
157911
160274
30226
68072
68072
30226
57912
57912
64262
37084
119634
114808
162585
11176
185674
60198
62484
60706
59436
62484
59436
86614
224790
141732
163068
63754
161442
88900
16764
152400
149352
142240
Ref No
L315
L316
L317
L318
L350
L351
L352
L353
L501
L502
L503
L603
L603A
L604
L604A
L605
L606
L609
L609A
L611
L612
L701
L701A1
L702
L703
L705
L801
L803
LP701
M1000
MODUL
POR701
Q2
Q502
Q601
Q602
Q605
Q701
Q701A1
Q711
Q912
R1003
R1008
R1018
R1019
R1020
R1022
R1027
R1036
R1047
Xmm
253746
253746
265938
192786
257556
257556
303530
312674
163322
150876
169164
123698
123698
81788
80772
100076
105918
82296
69088
59436
117094
60172
59182
48768
41656
122936
204978
218440
38506
98501
215392
62738
71120
192532
71120
97282
90170
45720
45720
151384
136499
227076
219456
261873
257810
257810
261873
232664
129794
275590
Ymm
210566
205486
240792
223012
219456
215392
237744
219710
116586
140716
91948
33782
33782
13208
12700
18796
86106
82042
72390
13462
12192
211658
212852
184912
188468
148082
66548
105156
235991
240461
48768
179578
56134
107696
56134
100330
79248
128016
128016
220726
170840
222250
145034
150368
133858
136398
147320
204216
220980
191770
Ref No
R1050
R1055
R1058
R1059
R1820
R1821
R1822
R1832
R1834
R1836
R229
R230
R231
R232
R233
R234
R306
R307
R315
R359
R408
R418
R419
R420
R424
R425
R426
R436
R451
R455
R464
R501
R503
R508
R518
R519
R526
R530
R533
R534
R536
R541
R550
R553
R603
R606
R608
R609
R610
R611
Xmm
278130
273050
248920
251460
149199
153009
153009
170535
173075
184505
224028
232664
289306
316738
316738
313944
308610
311150
241808
310642
157226
240792
220980
230378
237998
237998
220980
271018
202946
188976
257048
176022
153924
183388
160020
182372
186944
184150
164338
183388
136652
205740
189484
142494
148336
79248
145796
136906
128778
118364
Ymm
191770
191770
132334
132029
170332
177444
173888
168046
180746
158648
124460
104902
42418
25908
23368
14478
148590
148590
215138
210058
40386
34036
27432
36576
24638
27432
24638
19304
37846
50546
44704
100838
115824
130048
104394
81026
136652
91440
91948
127508
34798
110236
136652
121920
91948
99314
91948
82804
45974
16510
70GF-63E
F7240NF PWB PARTS ALLOCATION TABLES:
(copper side)
(component side)
Ref No
R611A
R612
R613
R614
R616
R617
R618
R619
R620
R623
R628
R641
R643
R703
R713
R714
R715
R716
R721
R723
R727
R728
R730
R741
R742
R763
R770
R771
R778
R790
R791
R792
R814
R815
REF10
REF4
S701
S702
S703
S704
S705
SF201
SF202
SF203
T601
T701
TH201
TRC
X1002
X2401
Xmm
117602
84074
131063
72644
151130
82042
205232
125476
224282
122428
141986
129032
135890
25908
14224
36576
21590
25908
20574
66548
133858
114808
23622
75184
96520
65024
74422
81280
20574
78486
78486
96774
229768
203200
53695
238252
20497
48514
60502
72517
84505
294894
290322
296672
33655
74599
304495
188569
245999
217678
Ymm
15748
75692
60198
23876
92710
94234
113538
131826
144272
93218
104140
93218
117348
234950
107950
105918
158750
139446
229870
157226
144526
176784
103378
167132
174244
171450
191770
184912
240030
230124
232664
224536
59436
59690
-4166
166878
247015
238201
238201
238201
238201
72644
72644
61468
51003
127635
5486
180492
154940
153924
Ref No
C1002
C1005
C1014
C1015
C1017
C1018
C1019
C1020
C1021
C1022
C1023
C1024
C1025
C1026
C1028
C1029
C1030
C1033
C1034
C1801
C1802
C1803
C1804
C1805
C1806
C1808
C1809
C1810
C1813
C1815
C1820
C1821
C1822
C203
C207
C208
C212
C213
C214
C216
C217
C221
C222
C223
C224
C225
C226
C227
C230
C2401
Xmm
275590
262890
304800
120396
214376
253746
242062
242062
237286
243840
218694
223774
219456
264160
291922
291846
289052
262890
242138
160274
149606
140716
133604
143510
138938
150215
167233
157073
146405
140817
139954
150114
162306
317754
303530
304546
299974
299974
302514
306832
306832
315468
307594
300736
297434
296926
314452
313944
289052
217932
Ymm
143510
163626
173482
235966
151638
192532
150876
152908
175056
156718
81280
82296
84582
158953
160477
173482
43434
165531
179806
199644
188468
188468
184658
204724
184658
175158
181762
174142
158648
161950
204216
191516
189992
63754
59436
56388
45974
50292
38100
27686
21336
59690
59436
8382
7366
13716
95504
88900
55118
165862
Ref No
C2402
C2403
C2404
C2405
C2406
C2407
C2408
C2409
C309
C310
C312
C316
C317
C318
C319
C320
C321
C327
C328
C330
C331
C333
C334
C335
C336
C337
C338
C339
C340
C350
C354
C357
C359
C360
C364
C366
C367
C369
C371
C374
C375
C379
C380
C383
C401
C402
C403
C404
C405
C406
17
Xmm
217932
215138
219202
210058
215138
217170
211074
213106
268224
268224
274828
278130
287020
289306
250444
250444
288290
299720
305054
309626
309880
311912
313690
318516
232410
234188
250444
250444
235712
289814
284734
265684
277114
297942
306070
266954
290830
289560
277622
281432
306578
304038
281686
266954
176022
177800
184150
189230
180086
186182
Ymm
163830
185420
176022
181864
176530
185420
208026
116586
137668
135890
123698
122682
124460
124460
230632
223520
141732
124206
124206
124206
135890
124206
118110
118110
237998
237998
234188
227076
220726
228600
231140
234188
236855
239268
228600
208534
211074
214122
211582
213868
220980
212852
137414
132842
25908
30480
36576
34036
36576
29210
Ref No
C408
C409
C410
C411
C412
C413
C414
C416
C417
C418
C419
C420
C421
C427
C428
C429
C432
C434
C435
C436
C438
C439
C440
C441
C442
C443
C444
C445
C446
C447
C451
C502
C503
C505
C506
C507
C508
C510
C512
C513
C515
C516
C517
C518
C521
C522
C523
C525
C527
C529
Xmm
159004
180086
177800
189230
188214
192532
186182
250952
258064
248920
256286
256286
249174
270256
171196
177800
265176
220726
224282
226822
260349
278384
277114
272542
159766
277368
239776
236220
220726
247396
223266
163830
163068
157226
156718
166878
158242
152908
193040
157988
167132
157988
158648
147320
172212
156718
190754
155752
150876
165608
Ymm
18542
13716
18288
21590
17272
22606
17272
13462
16764
18288
16764
25146
25146
43434
228600
229870
34036
46482
45720
45720
36576
46482
50800
50800
50800
26924
29210
30226
27940
62484
227838
133858
126746
126492
131572
131318
123952
132842
102108
117856
53594
74168
70866
65531
113792
135382
128016
72034
74676
58674
Ref No
C530
C531
C532
C533
C534
C535
C537
C538
C539
C540
C606
C617
C633
C635
C636
C639
C640
C643
C645
C646
C712
C715
C716
C717
C722
C725
C728
C730
C731
C732
C733
C735
C737
C738
C740
C741
C742
C743
C801
C803
C807
C808
C809
C811
C813
C814
C816
C817
C819
C823
Xmm
155956
171196
169418
172212
158242
174193
142494
143764
152400
162560
193294
226314
97282
144018
183896
96012
92456
217932
155448
154686
44958
36576
66294
68326
113284
64516
81788
49784
60452
72644
83312
118618
73660
33274
118872
120396
124968
106172
213614
221742
230124
233172
228092
252730
243078
240792
237490
252222
279908
224282
Ymm
82804
79502
118364
52324
122174
46786
69850
65531
79756
107442
86106
97790
98044
100584
119126
81026
77216
167640
63754
58928
118618
104394
125476
120904
141224
233934
205486
235966
236220
236220
235712
144018
167132
149606
169672
144018
149860
150114
77470
78486
63754
65786
87884
77978
80264
80264
96774
70104
44450
105918
70GF-63E
F7240NF PWB PARTS ALLOCATION TABLES (copper side):
Ref No
C824
C826
D1003
D1004
D1005
D1006
D1007
D1008
D1009
D1010
D1011
D1805
D1810
D203
D204
D205
D2401
D2402
D2403
D2404
D301
D302
D303
D304
D305
D401
D402
D403
D404
D405
D406
D407
D408
D409
D410
D411
D412
D413
D414
D415
D416
D417
D418
D419
D420
D421
D422
D502
D503
D504
Xmm
207010
215646
236474
269240
303784
224282
253492
251206
264795
286512
249986
133197
164084
308102
314960
317246
215138
210820
210820
210820
310388
261873
270256
259588
257302
149860
157226
152908
147066
216408
221742
241300
235458
229870
223774
232664
206756
204216
197104
166624
197866
210312
278892
280924
162306
153416
168656
139446
138938
139446
Ymm
74676
62992
132080
151638
159258
112522
109728
109728
156006
161544
153466
175920
198882
12192
56134
98806
181864
173482
168910
171196
201422
120396
115062
120396
118872
30480
32765
23622
18796
16002
23368
22860
22860
25146
18288
13462
37592
37592
24130
25908
17780
18796
40132
34036
13208
13208
32004
56642
61214
54356
Ref No
D506
D507
D508
D509
D515
D601
D614
D615
D617
D618
D619
D620
D624
D706
D710
D713
D715
D721
D724
D725
D726
D727
D728
D729
D730
D732
D733
D801
D802
D804
FB1001
FB801
FB802
IC1001
IC1003
IC1004
IC1006
IC1007
IC201
IC202
IC401
IC502
IC503
IC702
IC703
IC704
IC705
IC707
IC708
J126
Xmm
150622
187960
188214
132588
152654
175006
77216
219964
226060
219456
103632
97028
29718
83058
93726
36068
64008
138684
155702
157734
83566
70866
72898
82296
35814
82296
87376
259842
257302
207264
242062
237490
246126
250190
275844
298958
291338
283464
307340
302768
273558
163576
161544
85344
106426
106426
77470
113030
74422
267716
Ymm
70866
103124
112522
119126
70866
75438
100838
105156
101346
151892
83566
83058
73660
212852
211582
139700
121412
144526
233172
224536
132334
131826
165354
183134
147828
200914
198628
87122
87122
65531
146558
65531
80264
172212
148844
153162
150876
148844
70104
97282
32258
116332
79502
222504
200914
211328
123698
156972
173228
141986
Ref No
J132
J2
J218
J219
J220
J240
J279
J281
J283
J286
J289
J294
J302
J310
J313
J324
J325
J332
J335
J336
J338
J339
J340
J341
J342
J345
J346
J350
J351
J352
J353
J354
J51
J65
J701
J98
JF1001
JF1002
JF1003
JF1004
JF1005
JF1006
JF1007
JF1008
JF11
JF12
JF15
JF16
JF2
JF20
Xmm
69342
258064
234950
236982
234950
244094
308356
160274
293878
290830
296926
236982
234746
234696
104394
247904
247904
209296
238760
246888
257175
255270
93472
319278
319278
209296
140563
233680
319532
319024
278384
316992
320802
299720
93726
268986
37592
39370
41148
42926
44704
46482
48260
50038
285750
280924
104140
103886
300990
211074
Ymm
124206
236474
71374
71374
65786
68580
9906
133858
179578
100076
55118
128778
172720
156718
239522
69088
67310
72136
128778
155448
143941
143941
200152
185420
183388
229108
165252
215392
193040
189484
131318
99314
189484
170942
138938
146304
18796
18796
18796
18796
18796
18796
18796
18796
25908
28194
83566
88392
32512
226060
Ref No
JF21
JF22
JF24
JF3
JF30
JF37
JF38
JF39
JF4
JF44
JF46
JF47
JF5
JF52
JF7
L202
L204
L205
L601
Q1001
Q1002
Q1003
Q1004
Q1005
Q1006
Q1007
Q201
Q207
Q208
Q209
Q210
Q2401
Q302
Q303
Q304
Q305
Q306
Q403
Q404
Q405
Q406
Q408
Q501
Q503
Q505
Q506
Q507
Q603
Q604
Q606
18
Xmm
207518
209296
108458
300990
212598
275082
216408
212852
308356
237490
147066
132842
294894
319532
302006
309372
311150
307340
29972
227330
126238
141478
309118
237490
253492
254203
252730
299974
299974
286766
286766
216408
314960
319278
306832
257810
259080
264668
164338
172974
201422
284988
176022
182118
189915
147828
184912
108458
102616
183896
Ymm
226060
226060
99466
30480
147320
37592
45212
45466
44450
65531
223266
226568
64770
194818
124206
41656
61214
48514
77470
191516
234696
222250
163068
150622
204978
184785
37084
42926
88138
9144
51816
116586
201930
200406
200660
224790
216408
45466
37592
37338
28194
29718
69596
80518
119634
60960
115824
100838
97282
122174
Ref No
Q607
Q608
Q702
Q703
Q708
Q709
Q710
Q712
Q714
Q715
Q717
Q801
Q802
Q803
Q804
Q805
Q901
Q902
Q903
Q904
Q905
Q906
Q907
Q908
Q909
R1001
R1002
R1004
R1005
R1012
R1017
R1021
R1023
R1024
R1025
R1026
R1028
R1029
R1030
R1031
R1032
R1033
R1035
R1037
R1038
R1039
R1040
R1041
R1042
R1043
Xmm
275336
218948
27432
28448
68580
74168
154686
150368
91186
81280
90424
212344
234442
236474
218948
212344
156464
157734
153416
150876
146558
141986
144780
135128
135890
297942
299720
257810
272542
117094
116078
312420
251714
283972
304800
240030
221488
210058
211328
209042
236982
236982
233426
137668
139700
144780
130301
241300
252984
261823
Ymm
180848
157226
138684
144780
229362
206248
227838
227584
231394
191008
189992
98044
54356
59182
62484
62738
199390
193294
193802
199898
194818
194818
201676
201676
194310
160020
160020
105918
154940
237236
217170
197358
142748
172466
176530
198755
87884
166878
176784
176784
134620
156718
191262
222250
233426
233426
233426
160274
189484
188391
Ref No
R1044
R1045
R1046
R1048
R1049
R1051
R1052
R1053
R1054
R1056
R1057
R1060
R1061
R1801
R1802
R1803
R1804
R1805
R1806
R1807
R1808
R1809
R1810
R1811
R1812
R1813
R1814
R1815
R1816
R1817
R1818
R1819
R1823
R1824
R1825
R1830
R1831
R1833
R1835
R1837
R1839
R1840
R1841
R203
R204
R205
R208
R209
R210
R211
Xmm
296164
268986
262255
114046
263652
287020
291084
255270
231648
303784
257810
233426
218440
162052
159512
153416
161036
155956
151384
147828
141986
149860
145796
141478
141732
136144
138176
138938
137160
147828
142494
135382
146050
144272
137160
136753
152501
162661
159359
153009
148437
159004
146659
256032
306578
315722
290322
290322
317246
297688
Ymm
160020
180848
167436
205740
184404
43434
43434
189484
147574
163144
184353
189230
146304
199644
196342
196850
193040
189992
188468
199644
198120
195072
191516
191516
201676
197866
201676
194564
191008
188468
188468
184658
188468
188468
184658
169062
173126
179984
174142
162712
158648
205486
163728
37084
87630
82804
95758
97536
95504
100838
70GF-63E
F7240NF PWB PARTS ALLOCATION TABLES (copper side):
Ref No
R215
R216
R217
R218
R219
R220
R225
R226
R227
R228
R235
R236
R237
R238
R239
R240
R2401
R2402
R2403
R2404
R2405
R2406
R2407
R2408
R2409
R241
R2410
R2411
R2412
R242
R243
R244
R245
R246
R247
R248
R249
R251
R252
R253
R254
R255
R256
R257
R258
R259
R301
R302
R303
R304
Xmm
319786
316992
311404
315976
309372
310388
295910
294894
299974
299974
308356
308356
304800
304800
237236
313944
219202
211836
217170
211328
210058
211836
229870
219202
210058
300736
200914
202692
204470
296672
287020
287020
291338
319278
310642
283464
318262
280416
281686
290322
294386
291338
296164
286004
287274
313944
246888
251460
251460
246888
Ymm
95504
51816
81788
15748
38608
52832
45720
55118
52070
48514
17526
14224
83312
87630
111506
48514
185420
164592
113538
116586
179832
162814
143510
180594
157734
10160
152146
152146
152146
10414
12446
14224
40386
56896
77470
9652
48514
12700
9652
93980
49276
51562
49276
57150
48006
87122
117094
116840
121412
121412
Ref No
R308
R309
R310
R311
R312
R313
R314
R316
R317
R318
R319
R320
R321
R322
R323
R350
R351
R352
R353
R354
R355
R356
R357
R358
R360
R361
R362
R363
R372
R373
R374
R375
R376
R377
R378
R401
R402
R403
R404
R405
R406
R407
R409
R410
R411
R412
R413
R414
R415
R416
Xmm
250444
241300
250444
250444
244094
250444
250444
235458
235458
276606
261619
265176
302006
306070
292354
255016
257556
280416
292354
254254
256540
284988
310388
318770
308356
319278
257556
257556
297942
251206
271780
269494
280416
261873
297434
147320
159258
173736
182118
188214
186182
146812
160782
209804
204978
175768
182626
185166
189230
210312
Ymm
235966
231140
232410
228854
219456
221742
225298
225806
227584
111252
116586
114554
106426
106172
106680
216662
227838
232156
240538
212090
212090
214376
217678
208280
204724
203454
221742
219964
194818
211328
213614
232410
142494
233172
199898
26670
36322
30480
36576
29210
36576
14478
23622
25400
18034
13716
23114
13716
23622
27432
Ref No
R417
R421
R422
R423
R427
R428
R429
R430
R431
R432
R433
R434
R435
R437
R445
R447
R448
R449
R450
R452
R453
R454
R456
R457
R458
R459
R460
R461
R462
R463
R465
R466
R467
R468
R469
R470
R502
R504
R505
R506
R507
R509
R510
R511
R512
R513
R514
R515
R516
R517
Xmm
211582
223774
236474
239268
229616
246634
256032
254508
250952
258064
252730
169418
161036
267970
271907
169418
181102
265684
167386
201930
170180
212598
200406
170180
285750
279146
204978
285750
208534
254000
279146
277368
278892
287274
251206
256540
165862
183642
190246
187706
193040
159766
163068
163068
167132
157988
191770
175006
167894
193040
Ymm
22352
26924
26162
26162
18288
13462
13462
25146
25146
25146
25146
37338
36322
45466
39370
225806
223520
39370
37338
38862
23876
41402
42926
25654
21844
21590
20574
23876
22352
40132
38100
25146
40386
39116
32512
66548
107950
111506
109220
105664
98552
145542
124968
123190
110998
119634
124714
125476
107950
100330
Ref No
R520
R521
R522
R524
R525
R527
R528
R532
R535
R537
R538
R539
R540
R542
R544
R545
R547
R548
R549
R551
R552
R554
R555
R556
R557
R558
R559
R560
R561
R562
R601
R605
R607
R615
R622
R625
R626
R627
R634
R642
R644
R646
R647
R648
R706
R707
R708
R711
R712
R717
19
Xmm
154940
178308
169164
150622
143510
148590
187960
171704
174244
155956
154178
143510
157226
246380
168402
169164
192532
192532
169164
171196
168656
186436
146050
145542
144272
141986
146812
157734
162560
162560
104140
136906
141986
117094
244094
29972
271145
24384
103378
131318
217932
156464
158496
159512
105410
116332
77978
95250
93980
39370
Ymm
75692
72644
53594
65531
61214
71374
115824
77470
120650
79756
79756
115062
102108
87884
123190
113030
115062
128016
114808
118364
56896
142748
69850
65531
69850
65531
73914
79756
110998
109220
100838
100838
103378
12446
87884
80772
178866
79248
94234
107442
169418
58928
63246
61468
145542
169672
206248
203708
206756
129032
Ref No
R718
R719
R720
R722
R724
R732
R733
R735
R736
R737
R738
R739
R740
R743
R744
R745
R746
R747
R748
R749
R750
R751
R752
R754
R755
R758
R762
R765
R766
R767
R768
R769
R774
R775
R776
R777
R787
R788
R789
R801
R802
R803
R804
R805
R806
R807
R808
R809
R810
R811
Xmm
22606
33274
27432
66040
84582
81788
75946
72136
75184
61468
67564
75692
83058
122936
97028
87884
87884
129032
118364
84582
94488
150622
158496
152908
150622
157734
71120
82042
82042
93218
70358
58166
72898
80264
92456
77978
71882
86614
86614
204470
228854
223774
225806
230124
241046
242570
216408
202184
215900
231140
Ymm
106680
142748
135636
120904
156972
207264
217932
225806
210566
232664
232664
212852
214884
172466
161036
153670
151892
149098
164338
129032
158750
232410
220472
224536
230632
229616
137922
138430
144780
235966
150368
183134
180848
180086
193294
202184
229362
231648
233426
71882
69850
87884
87884
87884
68072
98552
102870
73660
98044
54356
Ref No
R812
R813
R816
R817
R818
T702
Xmm
243078
240030
211074
214376
207518
56896
Ymm
64516
62484
59690
58674
61722
173228
70GF-63E
F7317NOA PWB PARTS
ALLOCATION TABLES:
F7317NOA PWB PARTS
ALLOCATION TABLES:
Comp. side:
Ref No
(A)
(H)
D6751
D6752
F6701
IC6701
IC6708
LP6701
OPC
R6701
R6702
R6751
RC
S6701
S6702
S6703
S6704
S6705
ST
SW1
SW2
Xmm
46228
52578
140004
151993
45212
108000
127990
45008
136398
23114
60198
133858
112268
23012
57988
70002
81991
94005
150876
84074
94996
Ymm
37846
12446
53009
53009
28956
58978
57988
53009
15748
50292
35052
34798
15748
64516
50012
50012
50012
50012
15748
15748
15748
Comp. side:
Copper side:
Ref No
C6702
C6703
C6704
C6705
C6715
R6738
R6739
Xmm
58166
69850
82042
93726
128778
151892
148082
Ref No Xmm
(CC)
60426
(FV)
49504
(J)
82270
(SS)
32232
CN4
79984
J401
63500
L317
74955
L318
21564
R449
50266
Ymm
52832
52070
52324
52324
53594
56642
49276
Comp. side:
Ref No Xmm
(CS)
46482
(SB)
35560
(SF)
14478
(VS)
41148
C1302
23622
C1305
5334
C1306
25400
C1309
9144
C1310
31242
C1314
5842
C1315
25146
C1316
3556
D1303
33020
D1304
37846
IC1302
16510
L1301
5842
L1302
35306
L1303
37846
Component side:
Xmm
31750
120396
112776
163830
168910
171450
198628
194818
202438
213995
183007
190754
127762
167386
141706
Ref No Xmm
C336
79730
C337
78460
C428
19786
C429
29438
JF1
53568
JF2
55600
JF3
57886
R316
78460
R317
80492
Ymm
34290
25654
25908
25908
27432
27432
27432
22098
22098
F7285N1A PWB PARTS
ALLOCATION TABLES:
F7314NO PWB PARTS
ALLOCATION TABLES:
Ref No
(EW)
(F)
(FF)
C1601
C1602
C1603
C1604
D1601
D1602
FOCO
Q1601
R1601
R1602
R1603
T1602
Ymm
14224
14224
11734
14224
40005
40005
18084
20574
22860
Copper side:
Ymm
56896
38862
38862
12192
12192
20574
38100
45212
45212
32512
32512
45212
53848
45466
27025
Copper side:
No parts.
20
Ymm
25654
7874
35560
35560
11176
9652
33782
16510
15494
35306
22606
16764
27940
20066
19304
27178
24130
31750
Copper side:
Ref No Xmm
C1303 16764
C1304 23368
C1307 16764
C1308 16764
C1311 31750
C1312 14478
C1313
9652
C1317
2794
IC1300 42926
J1
6096
J2
16764
JF1
17272
JF2
38354
JF3
37846
Q1301 25400
R1301 30480
R1302 32258
R1303 44958
R1304 35814
R1307 34036
R1308 33020
R1309 22352
R1310 16764
R1311 28702
R1312 16256
R1313
9652
R1314
2032
R1315 45466
Ymm
11176
23622
30734
14478
17272
20574
23876
16510
14986
7620
7620
2286
12446
17272
11176
11430
11430
9906
11430
11430
2286
2286
9398
11430
20574
28956
23622
29210
70GF-63E
F7273N3 PWB PARTS ALLOCATION TABLES:
Component side:
Copper side:
Ref No Xmm
(B)
88392
(H)
4724
(K)
32004
(L5)
49530
(MO)
89154
(PU)
43688
(Q)
77470
(RT)
81788
C1608
87884
C1609
82804
C1612
86106
C1613
86868
C1807
13208
C1811
16002
C1812
38100
C1814
50038
C1823
10414
C1824
3556
C1825
25654
C5405
45974
C5408
41656
C5412
9144
C5413
76454
C5414
27940
C5415
63246
C5417
39624
CRT
62230
D1804
8636
D1809
41656
D5404
13970
D5405
57150
D5411
80010
D5412
83566
FF1
32765
G2
47752
IC1801
23114
J327
7010
J70
32765
J72
38100
J73
60706
J78
29718
JL20
76962
JL20.
66294
L1603
57658
L1604
70612
L1801
58166
Q5407
25908
Q5408
60960
Q912
10668
R1621
80010
Ymm
13970
31978
72898
73914
69088
6096
6096
72898
54610
35814
46482
25654
73914
30734
40640
34798
44704
44196
32004
70612
20574
10668
11938
6604
6604
13716
47498
31242
29972
19812
23368
23114
12446
-2794
42418
57912
55727
26924
49784
14986
69088
72390
23368
69342
74422
30226
18034
18034
37846
23114
Ref No Xmm
R1623
81280
R1623.
83566
R1820
23114
R1821
24384
R1822
24384
R1832
38862
R1834
46990
R1836
71120
R1841
25654
R5420
13970
R5421
75438
R5422
14732
R5423
71374
R5425
3048
R5426
42926
R5428
41910
REF2
6248
Ymm
9144
21336
37846
44450
41402
34798
55118
28956
26670
22860
25400
10668
10668
15240
10160
23368
62331
Ref No Xmm
C1610 76708
C1611 82804
C1801 33426
C1802 23520
C1803 14630
C1804
7518
C1805
4724
C1806 12852
C1808 23622
C1809 48768
C1810 36068
C1813 13970
C1815 10922
C1820 13106
C1821 24028
C1822 35966
C1830 88900
C5409 46990
C5410 11938
C5411 31750
D1607 83566
D1805
7874
D1810 37236
D5403 31750
D5410
5842
IC1601 87376
J4
68326
J5
5842
J71
35991
J74
33934
J75
44729
J76
23139
J77
86131
J79
35483
Q1603 82804
Q1604 72644
Q5405 65786
Q5406 59690
Q5410 50292
Q5411 54102
Q5412 62484
Q901
30378
Q902
31648
Q903
27330
Q904
25044
Q905
20472
Q906
15900
Q907
17170
Q908
9042
Q909
9804
21
Ymm
24892
27686
67665
55981
55981
52171
70459
52171
40132
56642
36576
29464
33020
73253
59029
59283
43942
12954
17018
12700
46990
44196
63093
18034
14732
36322
8890
43942
56235
56235
17018
50038
12192
70713
12700
10668
11430
11176
69850
64516
69342
66903
60807
61315
67411
62331
62331
69189
69189
61823
Ref No Xmm
R1615 80797
R1616 76708
R1617 86614
R1618 81026
R1619 83058
R1620 83845
R1622 78765
R1624 80289
R1801 41681
R1802 31521
R1803 27330
R1804 34798
R1805 29616
R1806 25298
R1807 20497
R1808 15900
R1809 23774
R1810 19710
R1811 15392
R1812 14147
R1813 10058
R1814 12090
R1815 12877
R1816 11074
R1817 21742
R1818 16408
R1819
9321
R1823 19989
R1824 18186
R1825 11074
R1830 13995
R1831 25679
R1833 36093
R1835 36093
R1837 39395
R1839 18059
R1840 32029
R1843 67310
R5412 51841
R5413 49530
R5414 46990
R5415 16027
R5416 21082
R5417 23901
R5418 26670
R5419 28702
R5424 39649
R5431 49809
R5432 60198
R5433 57683
Ymm Ref No Xmm Ymm
24638 R5434 61214 73660
27178 R5435 63246 73660
46736
47752
52070
69596
10922
21336
70612
63754
64338
63754
57480
55981
65633
65633
62585
59029
59029
69164
65379
69189
62077
58496
55981
55981
52171
55981
55981
52171
34544
40132
42926
38354
27686
29210
74422
15748
18288
17780
17018
18034
14986
14986
12446
12446
11430
66294
65277
69596
70GF-63E
DESCRIPTION OF SCHEMATIC DIAGRAM
NOTE:
1. The unit of resistance «ohm»is omitted
(K=1000 ohms. M= Megaohm).
2. All resistors are 1/8 watt. unless otherwise
2. SEMICONDUCTOR HEAT SINKS SHOULD BE noted.
REGARDED AS POTENTIAL SHOCK HAZARDS 3. All capacitors are µF, unless otherwise noted
(P= µµF).
WHEN THE CHASSIS IS OPERATING.
4. The capacitor with Part No.
RC-FZ9XXXBMNJ is designed to with stand
IMPOTANT SAFETY NOTE:
63V.
PARTS MARKED WITH « ! » (
) ARE 5. The capacitor with Part No.
IMPORTANT FOR MAINTAINING THE SAFETY RC-FZ4XXXBMNJ is designed to with stand
OF THE SET. BE SURE TO REPLACE THESE 50V.
SAFETY NOTE:
1. DISCONNECT THE AC PLUG FROM THE AC
OUTLET BEFORE REPLACING PARTS.
PARTS WITH SPECIFIED ONES FOR
MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET.
SERVICE PRECAUTION:
THE AREA ENCLOSED BY THIS LINE (
)
IS DIRECTLY CONNECTED WITH AC MAINS
VOLTAGE.
WHEN SERVICING THE AREA, CONNECT AN
ISOLATING TRANSFORMER BETWEEN TV
RECEIVER AND AC LINE TO ELIMINATE
HAZARD OF ELECTRIC SHOCK.
CAUTION
This circuit diagram is original one,
therefore there may be light difference from
yours.
WAVEFORM MEASUREMENT CONDITION:
Colour bar genetator signal of 70 dB from RF input.
1
2
580V
5
3
4 Vp-p 15.625KHz
1.3 KV 15.625KHz
6
41 Vp-p 15.625KHz
1.8 Vp-p
50Hz
19V 50Hz
3.3V 50Hz
1.15 Vp-p
15.625KHz
13
400Hz
22
50Hz
45 Vp-p 113 KHz FM
12
11
20.5 Vp-p 50Hz
215 Vp-p
8
7
10
9
4
400Hz
I
H
G
F
E
D
C
B
A
+10V
R1803
75
Q902
2SC2412
R1822
82K
(1/2W)
R1821
82K
(1/2W)
Q903
2SA1037
R1820
82K
(1/2W)
C1822
22pF
R1805
1K
R1809
100
4
2
R1810
1K
7
3
R1824
2K2
1
6
6
B
11
11
2
C1831
C1825
10nF
250V
Q908
2SC2412
C1806
10nF
3
Q909
2SA1037
1
9
10
R1836
680
(1/2W)
L1801
P0276BM
C1812
1uF
(250V)
33nF
250V
C1804
15pF
R1813
75
C1820
22pF
Q907
2SC2412
G
14
R1819
1K2
R1814
100
8
R1825
2K2
C1805
220nF
R1812
390
TRC
VB76ERF3113*N
R
13
+10V
C1801
100nF
R1834
680
(1/2W)
10
11
15
R1811
220
Q904
2SC2412
8
6
12
R1823
2K2
R1818
1K2
Q906
2SA1037
R1832
680
(1/2W)
C1811
10uF
(250V)
C1807
1000uF
(16V)
FOCUS
D1809
1N4004
DX0501
R1837
2M2
D1804
DX0505
R1830
4K7
C1813
10nF
R1815
1K
Q912
TX0130
R1816
220
D1805
C12
EX0554
C1814
4.7nF
(2KV)
KZ0023CE
C1815
100nF
SCREEN
C1824
4,7nF
R1839
10
(H)
1
R5425
470
1W
D5410
DX0551
3
C5410
10nF
R5420
56
(1/4W)
4
4
C5414
22uF
(160V)
5
R5413
22
C5408
4n7
500V
100uF
(16V)
Q5407
A1837
D5404
DX0501
1N4004
R5416
68K
R5431
390
C5405
220nF
R5432
33
R5433
100
C5407
10nF
Q5405
2SC2412
R5417
12K
1
R5412
47
Q5411
2SC2412
R5414
22
Q5412
2SA1037
Q5410
2SC2412
R5422
2.7
(1/4W)
C5412
R5415
1K2
C5409
4n7
R5418
68K
R5424
220
D5405
DX0501
1N4004
Q5408
C4793
5
R5435
330
R5419
1K2
R5428
100
(1/4W)
R1843
220
D5403
DX0551
R5421
56
(1/4W)
C5415
22uF
(160V)
R5423
2.7
(1/4W)
C5411
10nF
2
Q1604
2SA1037
R1624
100
4
3
-VS
(MO)
C1611
10nF
GN0441
1
D5405
1N4004
DX0501
R1616
33K
R1619
47K
C1609
10uF
(16V)
2
3
R1620
10K
(Q)
C1608
10uF
(16V)
R1618
100K
C1610
100nF
7
C1613
220uF
(25V)
4
N0341
D1607
C2V4
EX0537
L1604
47uH
(DF)
2
RT
GN0241
1
70GF-63E
R1623
100
(0.5W)
3
-13V
D5411
1N4004
5
6
+VS
2
(B)
GN0341
7
6
R1615
1M
+13V
R1617
2K2
IC1601
VHIBA4558
R1622
22K
1
3
2
1
R1621
100
(0.5W)
C1830
10nF
(PU)
N0341
1
C5413
100uF
(16V)
C1612
220uF
(25V)
Q1603
2SC2412
2
3
Q5406
2SA1037
R5434
1K
8
23
2
CRT UNIT SCHEMATIC DIAGRAM.
C1821
22pF
H.V.
27.5 KV
7
R1806
220
C1803
15pF
6
C1810
1nF
9
R1817
1K2
5
C1809
1nF
5
7
1
4
R1808
75
Q905
2SC2412
C1808
1nF
1
+10V
R1807
390
R1801
220
R1835
1K
7
3
R1833
1K
5
2
R1831
1K
IC1801
IX1416
C1802
5pF
9
1
5
Q901
2SC2412
(K)
10
R1804
100
8
1
R1802
390
GN0341
1
3
2
1
(SW2)
(OPC)
GN0341
GN0341
+5V
.
LP1001
70GF-63E
2
I
3
H
(SW1)
GN0341
1
G
1
2
F
(RC)
3
E
D
C
B
A
(AA)
CM0672FC
(ST)
3
2
1
1
2
GN0341
3
FB1002
LN0037
F701
C701
0.1uF
(250V)
R703
150K
R721
150K
C732
10nF
OPC
C731
10nF
Q1003
2SC2412
LEDOPC
R1037
4K7
C733
10nF
R1036
4K7
C730
10nF
D734
DX0502
1N4005
L701
F0108
Q1002
2SC2412
LED
D731
DX0502
1N4005
2
.
R774
470K
(TQ)
D732
15V
EX0556
D733
DX0551
R775
470K
(TQ)
POR701
P0001
Q717
2SC2412
R777
47
R776
82K
C725
4.7nF
(HB)
D704
DX0555
RF2005
D730
DX0551
Q708
2SC2412
6
(SV)
FB701
LN0037
R2410
100
GU
C1024
15nF
BU
R2412
100
C1025
15nF
BLU
21
R2
R1026
220
A16
22
B2
A17
24
GNDU
A18
25
G2
23
+5V
.
3
8
R2406
2K2
2
R1028
1K
+5V
.
+150V
4
1
.
+5V
.
D735
C720
R2401
470
R2408
3K3
12
J701
R2407
2K2
R1008
C2401
22pF
X2401
B0214
20.48MHz
C2402
22pF
C2404
100nF
R2402
4K7
D2401
EX0539
3V
CAG
87
86
P6 4 SCL2
88
89
3.10 M3CLK
3.11 M3LDA
3.12 I2CEN
3.13 SERV DATA
P3.15
A16
A17
A18
.
+3.3V
.
C1021
100nF
R1050
220
+5V
.
PROT
P6.5
3.9 CAG
R1055
47K
C1034
10pF
.
P6.6
90
3.8 AV LINK
C2403
100nF
+5V
P6.7
P2.8
93
91
P2.9 IR
P2.10 AVLINK
94
92
IX1686BM
3.7 OPC IN
OE
C1017
100nF
(HB)
D720
DX0587
MR826
VS
FB703
LN0037
R1031
4K7
RS
D711
DX0539
BYT52M
R1030
4K7
R1029
4K7
1
-16V
.
P2.11 SDA1
ST10R27
3.6 LEDST
+3.3V
C719
1000uF
(25V)
D719
DX0589
MBR3100RL
96
IC1001
3.5 ABL
R2409
(0)
ALCLOCK
C718
1000uF
(25V)
7
AL
R715
47K
5W
95
3.4 AGC OUT
A19
17
P7.0 SCL1
3.3 LED OPC
HB
Q701
TX0198
S5F10N80
20
R1035
4K7
GN0341
3
FB702
LN0037
C1023
15nF
R2411
100
TLTXT
7
R716
.27
1W
C710
47nF
400V
FZ0156
+16V
.
D718
DX0589
MBR3100RL
19
3.2 MICRO OUT
C1032
47uF
(10V)
Page 26
T701
16
18
+5V
.
D721
C8V2
EX0550
15
R1033
10K
17
RU
RTRNZ0578BM
R714
560K
(1/2W)
+3.3V
.
Q1005
2SC2412
C1027
470uF
(10V)
+8V
.
R736
470K
R713
560K
(1/2W)
14
D725
DX0551
D724
C2V7
EX0538
R727
180
(1/2W)
R728
180
(1/2W)
C711
330pF
2KV
KZ0036CE
R754
2R7
3.1
RPD
R751
1K
J62
3.3uH
(DF)
C704
KZ0165
3.3nF 250V
C705
EZ0119
220uF
(385V)
12
R758
100
13
D702
DX0555
RF2005
R787
47K
D703
DX0555
RF2005
Q711
BC547
TX0106
R755
390
R792
6K8
11
Q710
2SC2412
3.0
40
Q709
2SC2412
R735
470K
D701
DX0555
RF2005
10
Q712
2SC2412
VSS
R737
180K
VDD
VDD
C703
KZ0165
3.3nF 250V
9
+5V
XTAL2
39
R738
47K
8
EA
.
C1022
100nF
ALE
CAG
XTAL1
38
MOC8106
7
36
OPC
VSS
37
FX0106
6
WR/WRL
LED
READY
5
Q714
2SA1037
IC704
P5.15 AFT2
35
R791
18K
5
RD
R790
18K
X1002
17.734MHz
B0200
P5.14 AFT1
A23
R788
18K
4
P5.13
34
R789
18K
4
2
D706
DX0551
C1020
68pF
3
J39
3.3uH
(DF)
PAGC
R739
47K
R740
47K
Page 25
D728
C4V7
EX0544
2
C1019
47pF
33
R1041
4K7
LEDOPC
R767
10K
R1004
3K3
VS 1
9
FX0111
C737
1uF
(16V)
+3.3V
.
+3.3V
.
10
A22
11
5V1
32
R1017
3K3
31
R712
560
P7.1 PROT
R1064
100
97
PB5
D1011
EX0408
PROT
13
98
PB3
PB6
+3.3V
.
D1005
EX0545
5V1
P7.2 SDA2
PB1
PB7
R1018
100
D1004
EX0545
5V1
P7.3 PAFT
RESET
R1022
100
14
12
R1023
220
27K
5
A21
PB0
R1019
3K3
6
+5V
.
R1032
A20
PA3
TEST
SDA
26
0.1uF
(250V)
8
NMI
SCL
VSS
AFT1
7
C706
22uF
(16V)
PA2
IX1603
S2
D1003
DX0606
BAS85
R1059
100
R1020
3K3
7
AFT2
6
C746
PA1
OSCOUT
X24645
MOC8106
4
WP
30
5
OSCIN
IC1003
FX0106
3
VCC
S1
A19
4
IC703
6
5
5
3
L702
R763
100
(1/2W)
XZ0224
15
1
2
SDA
NC
R1058
100
99
16
SCL
VSS
2
R1052
4K7
P5.12
VSS
4
VDD
S2
7
2
4
24
IX1646
1
WP
+5V
.
R1002
3K3
29
ST6203
CF701
C0121
R769
820
IC708
4
1
5
3
IC702
VCC
S1
C1002
100nF
100
L703
T702
BTW34
VHDBT34F
NC
R1001
3K3
8
P5.10
2
1
AL
R1048
820
C1001
470uF
(6.3V)
8
SCL
+5V
.
SDA
1
R711
1K8
PROT
C707
100uF
(16V)
PAFT
IC1004
X24645
IX1603
+3.3V
.
P5.11
C739
220uF
(16V)
VDD
C724
220uF
(16V)
D710
EX0545
5V1
VSS
3
R733
47K
28
C728
100nF
D729
47V
EX0568
R771
470K
(1W)
Q715
2SK2715
TX0215
.
.
R770
270
XZ0229
(1/2W)
3
27
1
C702
10nF
250V
KZ0029
D707
DX0502
1N4005
IC701
PST529
R708
1K
2
(G)
PLGN0207
MOTHER UNIT SCHEMATIC DIAGRAM (00 Version).
D708
DX0502
1N4005
Page 24
.
R2408
3K3
+5VB
.
15
D722
1N4934
DX0504
+5V
.
R744
47K
(1%)
TQ
10
IC706
TL431
IX1674BM
C741
100nF
R514
270
C2405
220nF
R2405
100K
+150V
+5V
.
R519
100K
1/2W
C530
10nF
R527
1K
IC503
1
+VS
2
1
D0
VSS
D1
6
R521
5K6
R522
2K2
6
R544
1K
7
R513
220K
5
-VS
.
-13V
C532
100pF
L503
3.3uH
(CF)
R533
820
(1/4W)
D515
C4V7
EX0544
C526
10uF
R545
100K
R558
(0)
R534
27K
R556
10K
C537
4.7nF
(HB)
(EW
R647
15K
R532
10K
C531
10nF
(HB)
C515
680pF
R552
(0)
D623
9C27
Q506
2SD2391
R525
56K
C645
100nF
(50V)
L603
P0262
R646
2
1M
D504
DX0551
D502
DX0551
5
C518
10pF
R524
820
C644
220uF
(16V)
R812
2K2
7
R538
27K
Q501
2SC2412
R650
5K6
+5V
.
8
5
-VS
BA10393
IX1556BM
C516
270pF
C514
39nF
26
D3
7
4
+VS
3
8
3
C522
100nF
R509
39K
2
4
2
C525
5K6
.
IC502
BA4558
R512
3K3
1
.
25
5
3
4
RAS
WR
D2
CAS
23
24
NC
9
10
A0
A1
R537
8K2
C527
100nF
+5V
R515
1K2
R549
27K
R748
4K7
D714
MBR340RC
DX0605
3N3 4KV
R508
680
R540
4K7
BU
GU
RU
Q606
2SC2412
C735
2.7nF
(HB)
C770
R526
4K7
BLU
R555
820K
FB705
LN0020
R746
15K
KZ0106
OE
L4978
IX1704
22
IC707
A4
R706
20K
IC2402
IX1811BM
DRAM-MSM51 4400D
A8
16
15
14
13
12
11
10
9
R743
47K
(1%)
TQ
R750
1M
C2408
100nF
D509
DX0551
1
2
3
4
5
6
7
8
R724
270
(TQ)
+5V
R539
3K3
D506
DX0551
C722
100nF
+150V
CAG
PROT
R2404
56
R747
2K7
(HB)
.
R742
8M2
1/2W
R707
9K1
2
4
C738
56pF
R741
8M2
1/2W
C740
22nF
D726
12V
EX0554
R723
270
(1W)
C717
15nF
(HB)
.
C528
10uF
(63V)
R610
XZ0206
3R3
(1/2W)
1
RA611
L604
P0294BM
2
R455
10K
D
7V
E
20
V OUT
19
21
19
R616
2.7
(1W)
21
+150V
5
D404
7V5
EX0549
V IN
4
R406
100
C406
390pF
L IN
3
V IN
2
.
GND
Vf
+13V
+175V
1
V OUT
20
13
C616
470uF
(35V)
R405
100
R404
100
FB301
LN0037
D422
12V
EX0554
R OUT
D402
7V5
EX0549
2
D401
EX0549
7V5
R408
75
(1/4W)
C405
220pF
C402
390pF
D415
6V2
EX0547
1
R401
75
R407
75
R IN
+13V
.
R453
18K
1%
D413
B6V2
EX0584
(2%)
4
F602
J2521
R454
330
6
C632
470uF
(25V)
R643
1
(1/2W)
XZ0200
D421
4V
EX0544
C404
100pF
5
120
(1/2W)
+13V
.
D412
DX0551
R451
120
(1/2W)
8
R456
15K
J248
C403
220pF
R403
100
SS
D609
DX0505
1N4935
C401
100pF
D1006
5V6
EX0546
R452
22K
1%
7
R402
75
Q406
2SA1037
10
D608
DX0505
1N4935 F601
J2521
.
-19V
-13V
.
9
(LU)
12
D610
DX0503
1N4933
11
C607
330uF
(10V)
5
6
14
R619
560
(1/2W)
R642
470
C437
47uF
D414
DX0551
13
R601
3K9
13
8
1
4
+20V
.
C520
470uF
(35V)
3
R624
5.6
(2W)
D601
DX0551
D510
DX0505
1N4935
R625
180
(TQ)
16
Q602A
TX0192
(KSC2500)
D604
DX0301
BY299
C651
2,2nF
(2KV)
FZ0073CE
R530
10R
XZ0212
(1/2W)
VI2
12
C610
22nF
(630V)
FZ0186
L601
3.3uH
C642
220nF
(50V)
D621
1N4936
DX0506
AV3
VI3
R612
22
(1/3W)
XZ0116
D612
7
4
C620
2.2uF
(160V)
+105
L2
R627
180
(TQ)
L OUT
D603
DX0299
BY228
M0017CE
R614
10K
(1/2W)
C619
2.2uF
(160V)
+105
L605
Z0720
18
R617
22
1/2W
XZ0216
2
C613
560nF
(250V)
1K
2W
JF50
SC1OUTR
SC1OUTL
SC3INL
SC3INR
Q603
2SC2412
R603
330
Q802
2SC2412
T601
NF2065
15
Q601
TX0144
BUH515
L609A
1.2uH
(CF)
C601
12nF
1.7Kv
FZ0171
C606
100nF
(HB)
R654
5.6
(5W)
3
17
R605
470
D611
DX0505
1N4935
10
JF1
R607
12K
L606
150uH
P0237BM
18
R608
1K
(1/4W)
R811
10K
9
R628
1K
(1/4W)
+5V
.
C611
680nF
(250V)
3
11
25
JF51
+150V
.
C716
3.3nF
(HB)
Q703
TX0151
2SD2391Q
C742
68nF
(HB)
14
5
IC705
FX0106
MOC8106
C2407
220nF
L705
PCV1620
P0285
1
9
R765
100
(TQ)
D716
EX0411
6.8V
R722
33
Q702
TX0182
2PD602AR
L2402
10uH
(DF)
C723
2200uF
(10V)
C743
100nF
A7
C721
470uF
(35V)
EZ0132
R766
100
(TQ)
2
13
D715
DX0551
16
15
FB
COM
BOO
VCC
10
9
R720
10K
18
14
1
GND
SS
OSC
OUT
OUT
7
8
R719
220
C2406
100nF
17
1
D727
DX0551
+5V
Q2401
2SC2412
R2403
1K5
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
CLK
INTQ
TSCQ
I2CEN
VS
M3LDA
HS
M3CLK
XOUT
CORQ
XIN
BLAN
GPO
B
TM
G
CVBS
R
VDD_1
VSS_1
VDDA
RGB_GND
VSSA_1
VSSA_2
VDD_2
VSS_2
RES
VBB
VDD_3
VSS_3
VREF
CASQ
VDD_4
VSS_4
A8
D3
A7
D2
IC2401
A6
D0
A5
D1
SDA5273
A4
WEQ
A3
RASQ
IX1709BM
A2
A11
A1
A10
A0
A9
11
C715
330pF
C713
68nF
VCC
D713
DX0551
J152
J1023
6
47uF
(10V)
.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
12
5
R718
18 (TQ)
R730
100
(1W)
R762
220
(TQ)
R2402
4K7
R1008
L2401
3.3uH
(DF)
A2
C714
82nF
C720
EZ0258
100uF
(200V)
3V
100nF
Page 27
R717
22K
D735
170V
EX0875
A3
J701
100nF
(HB)
A6
8
D712
EX0419
C15
+5V
.
12
22pF
X2401
B0214
20.48MHz
A5
4
1
C712
100pF
R768
220
(TQ)
+150V
22pF
R2401
470
C1017
100nF
(HB)
D720
DX0587
MR826
FB703
LN0037
16
D711
DX0539
BYT52M
Q701
TX0198
S5F10N80
15
FB702
LN0037
R716
.27
1W
OE
330pF
2KV
KZ0036CE
D728
C4V7
EX0544
CN2
CZ2107BM
(H)
70GF-63E
14
I
H
G
F
E
D
C
B
A
(HD)
2
GN0341
1
(FV)
GN0341
3
2
1
2
1
2
1
GN0241
C350
100nF
20
19
18
17
16
15
14
13
12
11
R351
27K
R447
220
C451
10nF
(HB)
R448
220
C432
1uF
(16V)
12
C356
15nF
C431
330nF
C430
330nF
.
TDA7480
R350
10K
R352
12K
1
2
3
4
5
6
7
8
9
10
C362
2.2uF
IC304
C352
100nF
L352
P0278
13
C353
100nF
C360
560pF
R375
47K
C357
1nF
C351
220uF
(25V)
C354
100pF
1
3
(SS)
+16V
IC301
.
C359
4n7
(HB)
C358
100nF
C361
470nF
(FZ)
(S)
GN0441CE
R353
150
4
OUTR
+INR
R309
22K
R312
22K
IC302
TDA7480
R315
100
R311
100K
R314
100K
C319
1nF
C320
1nF
R313
1K
R363
4K7
C339
100nF
C367
100nF
20
19
18
17
16
15
14
13
12
11
R355
27K
CN0685CE
C341
220nF
HEADL
HEADR
4
TLTXT
R372
10K
2
C1026
10nF
.
.
2
R1032
D1009
DX0551
C379
100nF
SC2OUTL
R467
33K
(TQ)
A5
ST10R272L
A4
IX1686BM
A3
A2
A1
A0
P0H.7
HOUT
30
A18
31
+5V.
63 A4
62 A3
R1045
8K2
61 A2
32
A7
A14
A12
A17
A15
A18
A16
VCC
VPP
58
57
R466
220
4 A12
R468
0.
+3.3V
.
R1003
3K3
1
44
C317
330nF
10
11
12
9
SC3INL
Q1006
2SC2412
R1053
100K
C819
1nF
8
C804
3.3uF
Q1007
2SC2412
R318
100K
R323
100K
VSS
R1042
8K2
+5V.
R1054
100K
C802
10uF
C808
220nF
B
C447
68pF
D7
D6
D5
D4
C811
100nF
VI3
X801
20.25MHz
B0219
7
6
5
4
3
2
R321
100K
1
FB802
RF0003
FI
V11
VS
R505
2K2
C818
C817
R322
100K
C813
3.3pF
53
C326
10uF
(16V)
54
C814
6.8pF
33
34
35
36
RO 37
GO 38
BO 39
40
41
42
43
44
R2 45
G2 46
B2 47
BL1 48
49
50
51
52
53
54
55
56
57
58
59
C825
10uF
(16V)
C824
10nF
XREF
SVM
GND
VSUP
ROUT
GOUT
BOUT
VRD
RIN
GIN
BIN
FBLIN
RIN2
GIN2
BIN2
FBLIN2
CLK20
HOUT
XTAL1
XTAL2
VSTBY
CLK5
GNDF
ISGND
VRT
VSUPF
EW
VERT
VERTQ
GNDM
SENSE
RSW1
RSW2
DSGND
PORT6
PORT5
PORT4
PORT3
IC801
PORT2
PR2
VDP3120C2 PR1
PR0
IX1688BMN2 GNDD
VSUPD
GND
HFLB
SAFETY
VPROT
INTLC
MSY
CSY
FSY
55
C327
100nF
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
56
C328
100nF
57
58
C330
47pF
C333
47pF
59
60
EW
VERT
R803
1K2
R804
270
61
C334
5pF
62
X301
B0203
18.432
C335
5pF
C809
1nF
63
64
SC2_OUT_R
NC
SC2_OUT_L
NC
VREF1
NC
SC1_OUT_R
DACM_L
SC1_OUT_L
DACM_R
CAPL_A
VREF2
AHVSUP
DAC_L
CAPL_M
DAC_R
AHVSS
RESET
AGNDC
NC
SC4_IN_L
NC
SC4_IN_R
NC
ASG4
I2S_DA_IN2
SC3_IN_L
DVSS
IC305
SC3_IN_R
DVSUP
ASG2
MSP3410D
SC2_IN_L
IX1636BM
SC2_IN_R
ADR_CL
ADR_WS
ADR_DA
ASG1
I2SDAIN
SC1_IN_L
I2SDAOUT
SC1_IN_R
I2SWS
VREFTOP
I2SCL
MONO_IN
SDA
AVSS
SCL
AVSUP
NC
ANA_IN1+
STBY
ANA_IN-
ADR_SEL
ANA_IN2+
D_CTR_OUT0
TESTIO1
D_CTR_OUT1
XTAL_IN
NC
XTAL_OUT
NC
NC
AUD_CL_OUT
32
31
30
C309
1nF
29
28
C310
1nF
27
26
25
R376
4K7
24
+5V
.
C380
47nF
23
22
21
20
19
18
C321
100nF
17
16
15
14
I2SIN
13
I2SOUT
12
I2SWS
11
I2SCL
R306
100
10
SDA
9
SCL
R307
100
8
7
+5V
.
6
L301
10uH
(DF)
5
4
3
C331
100nF
2
C332
330uF
(10V)
1
R805
2K2
L803
3.3uH
(CF)
C815
22uF
C816
100nF
.
R622
10K
D801
7V5
EX0549
SF
VPROT
HB
CSY
+5V
.
+5V.
+5V
.
+5V
R258
22
(TQ)
R254
12K
R255
100
C229
22uF
(16V)
11
L201
12uH
(DF)
+5V
.
+8V
.
R209
3K3
R208
1K
2
R210
1K5
7
D3
D2
D1
D0
C812
22uF
R1024
8K2
51
52
C329
47pF
C807
220nF
G
50
C324
330nF
C801
100nF
C434
220nF
R
R1043
8K2
49
C325
330nF
R801
10K
R1027
10K
48
C323
330nF
SC1INR
(K)
L801
3.3uH
(CF)
RS
+25V
.
47
C322
330nF
C803
100nF
51 SELFI
R504
39K
46
C318
330nF
SC2INR
SC1INL
+5V
.
C822
680nF
R1025
8K2
43
SC3INR
FB
C1032
47uF
(10V)
42
SC4INL
53 L/L'
52 BG/L
40
41
SC2INL
GN0241
54
C316
100nF
2 A16
+3.3V
.
Q1001
2SC2412
C1018
100nF
1055
47K
13
C443
100nF
3 A15
(RT)
55
C315
3.3uF
39
C314
10uF
(16V)
SC4INR
2
56
C312
100nF
45
5 A7
C821
680nF
1
38
C313
10uF
(16V)
C311
330uF
(10V)
6 A6
C1014
100nF
H
14
Q408
2SC2412
7 A5
15
R458
1K
8 A4
A19
R1057
1K
37
IX1602
9 A3
60 A1
59 A0
HEF4053B
VSS
A6
A13
IX1664
IC401
R461
100K
VEE
A5
A8
10 A2
R459
1K
VDD 16
A9
+8V
.
36
8
A17
64 A5
A4
27C4000
35
D305
7V5
EX0549
E
29
65 A6
A11
IC1002
11 A1
7
28
66 A7
A3
12 A0
6
27
67
50
D7
D6
VDD
49
48
47
D4
D5
46
45
D3
44
D1
D0
D2
43
42
41
VSS
RPD
40
26
68
A2
OE
34
6
VDD
69
A10
33
+5V
EA
25
A1
GND
SELFI
24
A0
E
R302
100K
D304
7V5
EX0549
C438
100pF
ISEN
L/L'
BG/L
OE
+3.3V
.
D7
13 D0
RO
RESOUT
23
71
D0
BO
ROT OUT
72
70
D6
14 D1
R301
100K
SELV
GO
RES2OUT
22
D1
R465
10K
D419
DX0551
5
A6
21
73 A12
D5
15 D2
C306
10uF
(16V)
R304
100
SC1OUTL
4
A7
IC1001
D7
74
D2
+5V
.
3
A8
20
D4
R445
100K
16
2
A9
D6
VSS
1
77
78
76
A15
VDD
RSTIN
VSS
79
80
82
83
84
81
NMI
RSTOUT
P6.0 SLW3
P6.3 SELV
P6.1 SLW2
P6.2 SLW1
85
88
86
87
P6.5
P6.4 SCL2
89
P6.6
P6.7
VDD
75
D3
5
Page 24
A10
39
19
D5
A11
38
18
D4
VSS
37
17
D3
D303
7V5
EX0549
C305
10uF
(16V)
R303
100
SC1OUTR
D302
7V5
EX0549
R320
100
4
H
26
VFRONT
R1049
10K
R319
100
C343
10uF
HEADR
HEADL
C342
10uF
SC2OUTR
RES2
+3.3V
.
A15
A12
R1021
4K7
+5V.
.
-16V
SC4INL
SC4INR
A13
D301
DX0551
Q303
2SC2412
AGC
R1047
10K
C1005
100nF
A14
C376
470nF
R357
150
1
SDA
SCL
C1033
68nF
.
C374
4n7
(HB)
R1044
10K
RES2
+3.3V
27K
Q1004
BC287
IC1005
PST529
3
.
Q302
2SC2412
C375
560pF
MUTE
1
C1028
100nF
Q304
2SA1037
13
C368
100nF
PROT
+5V
.
+5V
.
C377
10uF
R359
100K
C378
220uF
(25V)
L316
3.3uH
(CF)
12
3
C369
100pF
L353
P0278
C373
100nF
C370
15nF
R1005
4K7
AV3
SELV
AV2
AV1
L
D1003
DX0606
BAS85
MUTE
+3.3V
.
R1046
1K8
R373
10K
C372
2.2uF
R374
47K
Q306
2SC2412
+5V
.
R360
10K
3
+3.3V
.
R356
10K
1
2
3
4
5
6
7
8
9
10
C371
1nF
6
5
R361
10K
C366
100nF
R354
10K
(SB)
C340
220nF
1
R358
100K
.
8
-16V
.
2
3
1
IC202B
BA10393
IX1556BM
AFT1
R310
1K
.
+16V
L315
3.3uH
(CF)
+16V
+5V
.
R308
100
3
GND
C365
220uF
(25V)
4
+INL
-INR
2
3
-INL
OUTL
GND
4
5
1
L351
3.3uH
(CF)
R362
4K7
C364
100nF
Page 27
6
C363
220uF
(25V)
.
+
7
-16V
GND
2
8
Q305
2SC2412
-
+12V
M5218L
C338
100nF
70GF-63E
+5V
R
Q
P
O
N
M
L
K
J
L350
3.3uH
(CF)
(CC)
GN0241
Page 26
R219
47K
20
C222
22pF
21
R220
47K
C207
10nF
R620
1K
+5V.
23
L202
15uH
R516
1K
C209
100uF
(16V)
C208
22nF
24
25
R501
100
1/2W
26
R249
820K
J231
10K
.
AGC
VCO
IC201
TDA4470
AFC
IX1671
VIF
SAGC
AM
IS
R240
220K
27
SIF2
SIF
SIF2
C223
33nF
(HB)
C224
100nF
R436
10
(1/3W)
XZ0112
FB801
3.3uH
R808
10K
R203
1K
R251
68K
SF203
L9354
CO289BM
C213
C212
R226
8
R245
1K5
R1051
22K
PAFT
Q201
2SA1037
+5V
.
R450
22
R252
18K
R613
3K3
(3W)
Q405
2SA1037
R434
1K
11
R464
220
Q403
2SC2412
L205
H
Q607
2SC2412
R435
1K
+33V
.
SC2OUTR
C214
100nF
D407
EX0549
7V5
R424
75
D408
EX0549
7V5
R425
75
1/4W
R429
100
C216
27pF
R426
75
R235
15K
SCL
3
R430
100
R427
82
C418
390pF
C420
100pF
R432
100K
R234
100
C217
220pF
2
C419
390pF
D203
DX0551
R433
100K
C218
100uF
TH201A
RTUNH0139BM
R OUT
2
R236
5K6
1
R IN
1
4
L OUT
3
6
L IN
5
8
SS
7
10
9
AV LINK
12
11
14
13
16
FS
15
18
17
V OUT
20
B
G
R
R IN
V IN
19
21
R OUT
2
AGC
SDA
R233
560
C421
100pF
1
4
L OUT
R232
560
4
R428
100
D410
EX0549
7V5
.
C215
470uF
(10V)
5
FB303
LN0037
+5VB
L203
6.8uH
(CF)
JF3
R431
100
3
6
L IN
5
8
SS
R229
8K2
1/2W
6
C414
390pF
7
10
AV LINK
9
12
SERVICE
11
14
13
R230
8K2
1/2W
13
16
R231
8K2
1/2W
7
C417
100pF
C416
100pF
D417
6V2
EX0547
15
IC203
IX0037
12
R423
150
SC2OUTL
R419
75
(1/4W)
SC2NR
AL
R422
150
SC2INL
B
D416
6V2
EX0547
R421
150
D409
EX0549
7V5
R462
18K
1%
R413
100
G
C413
100pF
R
R414
100
FB
D1008
5V6
EX0546
+150V
.
9
R420
1K
D405
7V5
EX0549
C412
100pF
FB302
LN0037
R460
18K
1%
D420
C5V6
EX0546
VI1
R409
75
D403
7V5
EX0549
C415
680nF
R415
100
C410
390pF
R410
22K
1%
R416
22K
1%
C411
100pF
R412
100
C408
10nF
GND
AV1
C409
100pF
SC1OUTR
SC1INR
SC1OUTL
SC1INL
AV2
AL
ALCLOCK
CIN
VI2
D1007
5V6
EX0546
D411
C5V6
EX0546
D406
EX0549
7V5
610nH
(CF)
10
R418
68
1/2W
8
D421
4V7
EX0544
C1030
330pF
FI
R626
4K7
R437
470
Q404
2SC2412
18
4
3
3
C422
47uF
(10V)
R463
100
3
11
27
R809
10K
D613
DX0506
1N4936
17
SF202
C0286BM
K9356M
1
C225
100nF
Q209
2SC2412
Q801
2SA1037
SF201
C0278BM
K3953
2
2
R807
33K
C823
820pF
V OUT
C211
10uF
3
SIF
1
R810
10K
4
GN0441
19
PAGC
JF14
4
2
R248
1K
+5V
.
R408
75
(1/4W)
6
R243
100K
R806
1K
+5V
.
R239
10K
5
4
R242
100K
C220
10uF
(16V)
R253
1K
Q208
2SC2412
33K
R241
100K
C219
10uF
(16V)
C206
2.2uF
.
10
5
R238
220
8
GND
OFS
R247
1K
7
VIF
FM
R237
220
9
VAGC
+V
R217
1K
10
GND
VCO
10nF
11
5
4
(F)
(MO)
C620
2.2uF
(160V)
+105
AFC
4
3
QPLGN0505CEZZ
3
RFAGC
C226
2
2
.
2
PLL
+5V
1
-13V
1
C227
10nF
12
VOUT
5
+13V
2
13
ST
C
R244
28
1
16
+5V
1
.
.
613
60nF
250V)
19
L204
0.61uH
P0229BM
+33V
(EW)
BG/L
AGC
5
Q608
2SC2412
D618
C4V7
EX0544
C228
8.2pF
(500V)
C221
22pF
D204
BBY40
DX0548
22
C536
47uF
(10V)
R549
27K
L/L`
JF6
4
+5VB.
18
R503
1K
34
K
R205
390
1
R246
220K
.
17
R216
150
C205
470nF
AFT2
IC202A
BA10393
IX1556BM
.
C204
2.2uF
R644
220
+5V
R518
1.2 Ohm
(2W)
R554
560
R211
1K
R215
10K
14
L/L'
5
CF202
C0020
R550
12K
BL
6
AFT1
10
Page 25
D615
DX0551
R618
1K
R542
8K2
6
R535
6K8
15
1
IC202B
BA10393
IX1556BM
7
R204
1K
C203
16
C617
100nF
R541
33K
C521
1nF
R256
22K
C230
22pF
Q210
2SC2412
SDA
SCL
RES1
+
C504
680nF
R502
3K3
D802
7V5
EX0549
11
3
R210
1K5
-
R517
15K
R507
8K2
+5V
R548
5K6
C512
220nF
Q503
IRFR010
TX0172
R553
1 (1/3W)
XZ0100
C510
100nF
R255
100
2
L201
12uH
(DF)
9
C524
100nF
CSY
C229
22uF
(16V)
100nF
R511
150
C509
220uF
(25V)
R254
12K
8
C506
100nF
C511
2.2uF
.
3V
HB
7
R258
22
(TQ)
SF
VPROT
HB
D801
7V5
EX0549
3K3
1K
R622
10K
C643
10nF
D617
C24
EX0561
9
C534
1nF
C508
560pF
C507
4.7nF
(HB)
SF
8
VPROT
C505
100nF
L501
P0271
VERT
4
K
D507
C12
EX0554
FB501
LN0020
14
13
12
11
10
9
8
7
6
5
4
3
2
1
R257
220
R506
120
(TQ)
C503
100pF
C820
680nF
SDA
SCL
R509
9K
R510
8K2
1
2
3
4
5
6
7
8
9
10
D508
DX0551
EW
IX1786
IC501
20
19
18
17
16
15
14
13
12
11
Q507
2SB852
TX0203
CSY
C522
100nF
C502
100nF
C818
100uF
Q502
KSA928
TX0201
RES1
Q505
2SC2412
C817
100nF
(HB)
(16V)
R547
3K9
+13V
.
C501
470uF
(25V)
VS
R528
100K
R505
2K2
C814
6.8pF
V11
.
FI
+25V
R504
39K
L502
3.3uH
(CF)
C813
3.3pF
FB802
RF0003
VSUPD
GND
HFLB
SAFETY
VPROT
INTLC
MSY
CSY
FSY
HCS
DSGND
SDA
SCL
RESQ
TEST
+
R1024
8K2
HOUT
XTAL1
XTAL2
VSTBY
CLK5
GNDF
ISGND
VRT
VSUPF
VOUT
CIN
VIN1
VIN2
VIN3
VIN4
51
52
53
54
55
56
57
58
59
60
61
62
63
64
-
R1025
8K2
8
C812
22uF
C822
680nF
D3
D2
D1
D0
47uF
(10V)
CN1
CZ2109BM
VERIFICADO
APROBADO
NOMBRE
MODELO
03-10-2000
70GF63E
Q K I T P 7 2 4 0 B M N F
SHARP
5
19-10-2000
17-10-2000
Hasta INFO 886
Hasta INFO 872
4
20-10-2000
Hasta INFO 888
24
23
25
3
22-09-2000
Hasta INFO 850
20
ESCALA
2
02-10-2000
Hasta INFO 862
21
A-1
1
28-09-2000
Hasta INFO 858
22
FECHA
ELECTRONICA ESPANA S.A.
REVISIONES
N
14
FECHA
6
CODIGO
MOTHER BOARD
70GF-63E
REALIZADO
R
Q
P
O
N
M
L
K
J
70GF-63E
FRONT AV UNIT SCHEMATIC DIAGRAM.
CN4
I
J401
JAKJ0047CEZZ
0015B
R449
75
(1/4W)
2
6
7
1
5
4
3
H
C428
C429
1nF
1nF
C336
10nF
L317
3.3uH
(DF)
L318
3.3uH
C337
10nF
R317
390
R316
390
G
(FV)
3
3
1
2
1
GN0241
2
1
(CC)
GND
GND
OUT R
LUMA IN
GN0241
CHROMA IN
GN0341
OUT L
GN0341
GND
(SS)
OUT R
F
(HD)
2
GND
2
OUT L
1
E
CENTRAL SPEAKER UNIT SCHEMATIC DIAGRAM.
(VS)
D1303
6V8
EX0411
IC1300
GN0341
VHIBA4558
8
D
-
2
1
4
+
3
R1304
(0)
D1304
6V8
EX0411
C1310
220uF
(25V)
L1302
3.3uH
(CF)
+16V
C
+5V
R1307
47K
C1311
100nF
(SF)
R1308
10K
C1304
100nF
C1302
330nF
20
19
18
17
16
15
14
13
12
11
R1309
27K
(SB)
GN0685CE
R1311
4K7
6
B
5
C1303
390pF
1
2
3
4
5
6
7
8
9
10
R1312
12K
C1312
100pF
GN0241
L1301
P0278
C1309
100nF
C1313
560pF
C1308
4n7
R1310
47K
C1305
2.2uF
C1315
100nF
C1314
470nF
IC1302
R1313
150
TDA7480
Q1301
2SC2412
4
C1306
220uF
(25V)
+5V
L1303
3.3uH
(CF)
3
R1302
100
2
C1307
100nF
-16V
1
R1301
100
A
1
2
3
4
28
5
6
7
70GF-63E
DINAMIC FOCUS UNIT SCHEMATIC DIAGRAM.
I
(FF)
(F)
0505
0505
5
4
3
2
1
5
4
3
2
1
H
FOC IN
G2
FOC
T1602
NZ0575BM
C1601
1000pF
2Kv
G
L5
R-Z0001BM
C1603
1000 pF
2Kv
R1601
180.
1/2W
(EW)
GN0241
D1601
EX0431BM
Q1601
TIP32
F
D1602
E
POWER SWITCH UNIT SCHEMATIC DIAGRAM.
D
M6701
RRMCU0228CEZZ
+5V
S6704
KZ0079
KZ0079
S6705
+5V
KZ0079
R6739
100
2
2
LP6701
P0001
R6738
100
3
S6703
KZ0079
3
S6702
3
2
1
(M)
+5V
GN0304
D6751
PX0105
1
1
C
D6752
PX0105
F6701
FS-C3226
S6701
P0600
R6701
120K
1/2W
B
R6702
120K
1/2W
1
3
2
1
3
2
1
3
2
1
GND
(SW2)
GN0341
+5V
(SW1)
GN0341
LED
RC
GND
GN0207
+5V
GN0341
(A)
3
2
1
(OPC)
(ST)
GN0341
GN0341
OPC
2
LEDOPC
3
(RC)
A
1
2
3
4
29
5
6
7
B
C
D
70GF-63E
A
70GF-63E BLOCK DIAGRAM
E
I2C
CENTRAL SPEAKER UNIT
7
+16V
3
SF 201
SAW
TH 201
FM AUDIO
IF
IF
SF 202
SAW
TUNER
IC 201
+
IC1302
-
6
CENTER
4
IC 305
-16V
MSP 3410 D
CVBS
+16V
7
TDA 4470
1
1
PERIPHERICS
AUDIO L/R
3
2
+
IC 301
-
6
AUDIO OUT L
Q 304
4
I2C
SF 203
SAW
-16V
Q 302
AUDIO
PROTECTOR
Q 303
7
+16V
+
IC 302
-
6
AUDIO OUT R
4
2
-16V
MAIN POWER
IC 7601
IR
DETECTOR
+ CH -
+
VOL -
Q 305
Q 306
MUTE
S6701
21 PINS
IC 304
RGB
HEADPHONE CONECTOR
21 PINS
F6701
AV-2
Micro Proc. COMUNICATION
+13V
RGB
2
2
IC 702
IC 704
ADG COIL
IC 801
V
Micro Proc.
21 PINS
POWER ST-BY
CONTROL
VDP 3120 C
V
AV-1
Micro Proc. COMUNICATION
IC 502
V. OUT
VIDEO PROCESSOR
BA 4558
IC 501
DRIVER
TDA 7480
VERTICAL
POWER
SVM
E/W
OUT
IC 703
H.OUT RGB
-13V
I2C
ON/ST-BY
AV-FRONT
+5V
30
IC 401
PTC
POR 701
IC 701
HEF 4053
SWITCH
S-VIDEO
Q 502
Q 503
V
IC2
VERTICAL
FLYBACK
D 1101
CRT UNIT
Q 5410
Q 5411
Q 5412
SVM
IC 1001
T 701
-
+
SVM
M3L
+16V AUDIO
8
IC 2401
SDA 5273S
MT TEXT
S 10 R 272 L
17
7
IC 1801
Q 901
Q 902
Q 903
Micro Proc.
IC2
3
3
3
D 701...D 704
ROTATION
COIL
-16V AUDIO
IC 1002
27C4000
EPROM
+140V
4
C?
R
R
RGB
Q 904
Q 905
Q 906
G
H
12
CESH
Q703 DRIVER
G
B
B
C.R.T.
HORIZ.
DEFLEX.
COIL
Q 907
Q 908
Q 909
5
E/W
OUT
Q701
VERT.
DEFLEX.
COIL
TEA5101A
H.V.
15
6
Q
Q
Q
Q
Q
Q702
1
ROTATION
COIL
704
713
706
705
707
+5V DIGITAL
H.OUT
H. OUT
FOCUS
ROTATION COIL
HEATER
SENSOR
14
IC 1601
Q 1603
Q 1604
2
IC 705
E/W
OUT
DINAMIC FOCUS UNIT
Q603
Q605
Q604
Q602
H. DRIVE
+13 V
Q 601
FOCUS 2
-13 V
POWER UNIT
SCREEN
IC 706
H.V.
4
R741
C770
Q 506
E/W
EMULATOR
IC 503
T 1602
Q 501
E/W
DRIVE
C 1602
C 1601
R742
FOCUS
D 605
E/W
OUT
Q 1601
4
+145 V
F.B.T.
C 1603
Title
BLOCK DIAGRAM 70GF-63E.
HORIZ. DEFLECTION
Size
A2
Date:
A
B
C
D
Document Number
70GF-63E 0045JB00
Wednesday, June 14, 2000
E
Rev
00
Sheet
1
of
1
BLOCK DIAGRAM
3
70GF-63E
PART LIST
REPLACEMENT PARTS
Replacement parts which have special safety characteristics are identified in this manual. Electrical components having such features are identified by ! in the Replacement Part List.
The use of a substitute replacement part which does not have the same
safety characteristics as the factory recommended is not permitted.
Replacement parts not shown in this service manual may create shock
fire, or other hazards.
HOW TO ORDER REPLACEMENT PARTS
To have your order completed promplty and corretly please supply the
following information.
1. MODEL NUMBER
3. PART NO.
5. CODE
MARK *: SPARE PARTS
2. REF. NO.
4. DESCRIPTION
6. QUANTITY
DELIVERY SECTION
PARTS
DESCRIPTION
* SN CODE EX CODE
VB66ERF3113*N
RCILG0417BMZZ
CRT 28"16:9 FLAT50Hz W66ERF031X013 PS CH
DEGUSS.COIL ATN01121951 28"16:9 NUCTS AQ
**
AX
DUNTK7240CJX4
DUNTK7273BMW1
DUNTK7285BMW1
DUNTK7314BMV2
DUNTK7317BMV0
DUNTK7318BMV0
PWB MOTHER UNIT
PWB CRT UNIT
PWB CENTRAL SPEAKER UNIT
PWB DINAMIC FOCUS UNIT
PWB FRONTAL POWER SWITCH UNIT
PWB FRONTAL A/V SIGNAL
-AT
AH
AU
AN
--
-BE
AV
BF
AZ
--
PICTURE TUBE
!
!
PWB-A
PWB-B
PWB-C
PWB-D
PWB-E
PWB-F
PWB-A
!
!
!
S
S
S
S
S
S
MOTHER UNIT
TH 0201
RTUNH0139BMZZ
TUNER
TUNER CTT5020E THOMSON
S AP
BA
IC 050
IC 0201
IC 0202
IC 0203
IC 0301
IC 0302
IC 0304
IC 0305
IC 0401
IC 0502
IC 0503
IC 0701
IC 0702
IC 0703
IC 0704
IC 0705
IC 0706
IC 0707
IC 0708
IC 0801
IC 1001
IC 1002
IC 1003
IC 1004
IC 1005
IC 2401
IC 2402
RH-IX1786BMZZ
RH-IX1671BMZZ
RH-IX1556BMZZ
RH-IX0037CEZZ
VHITDA7480/-1
VHITDA7480/-1
VHIM5218L//-1
RH-IX1789BMZZ
RH-IX1602BMZZ
VHIBA4558F/-1
RH-IX1556BMZZ
VHIPST529C2-1
RH-IX1646BMZZ
RH-FX0106BMZZ
RH-FX0106BMZZ
RH-FX0106BMZZ
RH-IX1674BMZZ
RH-IX1704BMZZ
RH-FX0111BMZZ
RH-IX1688BMN2
RH-IX1686BMZZ
RH-IX1711BMZZ
RH-IX1603BMZZ
RH-IX1603BMZZ
VHIPST529C2-1
RH-IX1709BMZZ
RH-IX1811BMZZ
INTEGRATED CIRCUITS
C.I. TDA 7480L THOMSON
IC TDA4470-MFL TEMIC SMD
IC BA10393 S0P8 SMD ROHM
IC UPC574J 33V NEC
IC TDA7480 THOMSON
IC TDA7480 THOMSON
IC M5218L
CI MSP3410D-PP-C5 MICRONA
IC HEF4053 SMD
IC BA4558F-E2 ROHM OP-AMP
IC BA10393 S0P8 SMD ROHM
IC PST529C2 MITSUMI
IC ST6203B SMD SGS-THOMSON
OPTOCOUPLER M0C8106SR2V-M
IC KA431AZ SAMSUNG
IC L4978 THOMSON
OPTOCOUPLER TLP165J TOSHIBA
IC VDP 3120C2 MICRONAS
IC ST10R272L THOMSON
EPROM OTP 4 MB THOMSON
NVM X24645S8 XICOR SMD
NVM X24645S8 XICOR SMD
IC PST529C2 MITSUMI
IC SDA5275-3MTXT NIVEL2,5
IC DRAM MSM514400D-60TS-K OKI
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AD
AF
AC
AF
AF
AF
AA
AS
AA
AA
AC
AD
AF
AC
AC
AC
AA
AD
AB
AU
AK
AL
AS
AS
AD
AT
AG
AL
AQ
AD
AD
AK
AK
AD
BD
AD
AC
AD
AD
AL
AD
AD
AD
AD
AK
AE
BF
AW
AX
AV
AV
AD
BD
AS
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
VS2SA1037KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SA1037KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
TRT BC807 SMD
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT BC807 SMD
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
S
S
S
S
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
DESCRIPTION
*
SN CODE
EX CODE
0405
0406
0408
0501
0502
0503
0505
0506
0507
0601
0602
0603
0606
0607
0608
0701
0702
0703
0708
0709
0710
0711
0712
0714
0715
0717
0801
0802
1001
1002
1003
1004
1005
1006
1007
2401
VS2SA1037KQ-1
VS2SA1037KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
RH-TX0201BMZZ
RH-TX0172BMZZ
VS2SC2412KQ-1
RH-TX0151BMZZ
RH-TX0203BMZZ
RH-TX0144BMZZ
RH-TX0192BMZZ
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
RH-TX0198BMZZ
RH-TX0182BMZZ
RH-TX0151BMZZ
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
RH-TX0106BMZZ
VS2SC2412KQ-1
VS2SA1037KQ-1
RH-TX0215BMZZ
VS2SC2412KQ-1
VS2SA1037KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SA1037KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
TRT BC807 SMD
TRT BC807 SMD
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT KSA928A SAMGUNG
IRFR010TM SAMSUNG N
TRT 2SC2412 ROHM
TRT 2SD2391Q SMD ROHM
TRT 2SB852 ROHM
TRT BUH 515 THOMSON
TRT KSC2500 SAMSUNG
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT S5F10N80A SAMSUNG
TRT 2PD602AR PHILIPS
TRT 2SD2391Q SMD ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT BC547
TRT 2SC2412 ROHM
TRT BC807 SMD
MOSFET 2SK2715 ROHM
TRT 2SC2412 ROHM
TRT BC807 SMD
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT BC807 SMD
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AD
AA
AC
AA
AH
AB
AA
AA
AA
AA
AM
AA
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AC
AE
AA
AD
AB
AK
AC
AA
AA
AA
AA
AU
AB
AD
AA
AA
AA
AB
AA
AA
AE
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
0203
0204
0205
0206
0301
0302
0303
0304
0305
0401
0402
0403
0404
0405
0406
0407
0408
0409
0410
0411
0412
0413
0414
0415
0416
0417
0419
0420
0421
0422
0502
0503
0504
0506
0507
0508
0509
0510
0515
0601
RH-DX0551BMZZ
RH-DX0548BMZZ
RH-DX0551BMZZ
RH-DX0045BMZZ
RH-DX0551BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-EX0546BMZZ
RH-DX0551BMZZ
RH-EX0584BMZZ
RH-DX0551BMZZ
RH-EX0547BMZZ
RH-EX0547BMZZ
RH-EX0547BMZZ
RH-DX0551BMZZ
RH-EX0546BMZZ
RH-EX0544BMZZ
RH-EX0554BMZZ
RH-DX0551BMZZ
RH-DX0551BMZZ
RH-DX0551BMZZ
RH-DX0551BMZZ
RH-EX0554BMZZ
RH-DX0551BMZZ
RH-DX0551BMZZ
RH-DX0505BMZZ
RH-EX0544BMZZ
RH-DX0551BMZZ
DIODE LL4148 TFK SMD
DIODE VARICAP BBY40
DIODE 1N4148
ZENER DIODE TZMC7V5 TFK SMD
ZENER DIODE TZMB6V2 TFK SMD 2%
ZENER DIODE TZMC12 TFK SMD
DIODE 1N4935
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AE
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AE
AA
AA
DIODES
TRANSISTORS
0201
0208
0209
0210
0302
0303
0304
0305
0306
0403
0404
PARTS
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
31
70GF-63E
PARTS
DESCRIPTION
0603
0604
0608
0609
0610
0611
0613
0615
0617
0618
0621
0623
0701
0702
0703
0704
0706
0707
0708
0710
0711
0712
0713
0714
0715
0716
0718
0719
0720
0721
0722
0724
0725
0726
0727
0728
0729
0730
0731
0732
0733
0734
0735
0801
0802
1003
1004
1005
1006
1007
1008
1009
1011
2401
RH-DX0299BMZZ
RH-DX0302BMZZ
RH-DX0505BMZZ
RH-DX0505BMZZ
RH-DX0503BMZZ
RH-DX0505BMZZ
RH-DX0506BMZZ
RH-DX0551BMZZ
RH-EX0561BMZZ
RH-EX0544BMZZ
RH-DX0506BMZZ
RH-EX0425BMZZ
RH-DX0555BMZZ
RH-DX0555BMZZ
RH-DX0555BMZZ
RH-DX0555BMZZ
RH-DX0551BMZZ
RH-DX0502BMZZ
RH-DX0502BMZZ
RH-EX0545BMZZ
RH-DX0539BMZZ
RH-EX0419BMZZ
RH-DX0551BMZZ
RH-DX0605BMZZ
RH-DX0551BMZZ
RH-EX0411BMZZ
RH-DX0589BMZZ
RH-DX0589BMZZ
RH-DX0587BMZZ
RH-EX0550BMZZ
RH-DX0504BMZZ
RH-EX0538BMZZ
RH-DX0551BMZZ
RH-EX0554BMZZ
RH-DX0551BMZZ
RH-EX0544BMZZ
RH-EX0568BMZZ
RH-DX0551BMZZ
RH-DX0502BMZZ
RH-EX0556BMZZ
RH-DX0551BMZZ
RH-DX0502BMZZ
RH-EX0875BMZZ
RH-EX0549BMZZ
RH-EX0549BMZZ
RH-DX0606BMZZ
RH-EX0545BMZZ
RH-EX0545BMZZ
RH-EX0546BMZZ
RH-EX0546BMZZ
RH-EX0546BMZZ
RH-DX0551BMZZ
RH-EX0545BMZZ
RH-EX0539BMZZ
DIODE BY 228-20
S
DIODO RGP30MT FAGOR (GLASS PASSIVS
DIODE 1N4935
S
DIODE 1N4935
S
DIODE 1N4933
S
DIODE 1N4935
S
DIODE 1N4936
S
S
S
S
DIODE 1N4936
S
ZENER DIODE BZX79C27V
S
DIODE RF2005 FAGOR
S
DIODE RF2005 FAGOR
S
DIODE RF2005 FAGOR
S
DIODE RF2005 FAGOR
S
S
DIODE 1N4005
S
DIODE 1N4005
S
S
DIODE BYT52M TFK
S
ZENER DIODE BZX79C15V 0,4W
S
S
DIODE MBR340RL MOTOROLA
S
S
ZENER DIODE BZX79C6V8
S
DIODE MBR3100RL
S
DIODE MBR3100RL
S
DIODE MR826 PREFORM C6.3
S
S
DIODE 1N4934
S
S
S
S
S
S
S
S
DIODE 1N4005
S
ZENER DIODO TZMC15 TFK SMD
S
S
DIODE 1N4005
S
DIODE BZW04-145=170V FAGOR
S
S
S
DIODE BAS85 PHILIPS
S
S
S
S
S
S
S
S
S
POR0701
X 0301
X 0801
X 1002
X 2401
RMPTP0001BMZZ
RCRSB0203BMZZ
RCRSB0219BMZZ
RCRSB0200BMZZ
RCRSB0214BMZZ
PTC B59250-C1080-B70
CRYSTAL 18,432 MHZ
CRYSTAL 20.25 HMZ
CRYSTAL 17,734 MHZ
CRYSTAL 20.48 MHZ SEL
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
VP-DF120K0000
VP-NM150KR63N
VP-CF6R8K0000
RCILP0229BMZZ
RCILP0229BMZZ
VP-DF100K0000
VP-CF3R3K0000
VP-CF3R3K0000
VP-DF3R3K0000
VP-CF3R3K0000
VP-CF3R3K0000
RCILP0278BMZZ
RCILP0278BMZZ
RCILP0271BMZZ
VP-CF3R3K0000
PEAK COIL 12UH 10%
COIL 15UH SMD
PEAK COIL 6.8UH 10%
COIL SMD 610NH LQN1HR61J
COIL SMD 610NH LQN1HR61J
PEAK COIL 10UH 10%
PEAK COIL 3.3UH 10%
PEAK COIL 3.3UH 10%
PEAK COIL 3,3UH 10%
PEAK COIL 3.3UH 10%
PEAK COIL 3.3UH 10%
COIL A823LY-680K TOKO
COIL BC-400/K DIEMEN
PEAK COIL 3.3UH 10%
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
*
SN CODE
EX CODE
AC
AA
AB
AB
AB
AB
AB
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AB
AB
AA
AA
AA
AA
AA
AA
AA
AC
AC
AH
AA
AB
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AE
AC
AE
AE
AB
AE
AB
AA
AA
AA
AB
AA
AB
AB
AB
AB
AA
AA
AA
AA
AC
AB
AA
AE
AA
AA
AF
AF
AP
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AD
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
S
S
S
S
S
AA
AD
AG
AD
AD
AD
AG
AH
AG
AH
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AB
AA
AA
AA
AA
AB
AB
AB
AB
AB
AA
AA
AD
AB
AA
AC
AA
AD
AD
AA
AB
AB
AB
AB
AB
AD
AD
AG
AB
DESCRIPTION
*
SN CODE
EX CODE
VP-CF3R3K0000
VP-NM3R3MR19N
RCILP0262BMZZ
RCILP0294BMZZ
RCILZ0720BMZZ
RCILP0237BMZZ
RCILF0108BMZZ
RCILP0285BMZZ
VP-CF3R3K0000
VP-CF3R3K0000
VP-DF3R3K0000
VP-DF100K0000
VP-CF1R2K0000
PEAK COIL 3.3UH 10%
COIL 3,3UH SMD
COIL HR18008.00 DIEMEN
COIL 900uH HR-15017-00
LYN COIL HR-13044
COIL AR621LY-151K=R TOKO
COIL 472839.00 THOMSON
COIL PCV1620-500K DIONIX
PEAK COIL 3.3UH 10%
PEAK COIL 3.3UH 10%
PEAK COIL 3,3UH 10%
PEAK COIL 10UH 10%
PEAK COIL 1.2UH 10%
S
S
S
S
S
S
S
S
S
S
S
S
S
AB
AA
AD
AC
AD
AC
AF
AB
AB
AB
AB
AA
AA
AB
AD
AG
AH
AL
AD
AL
AF
AB
AB
AB
AA
AB
CF 0202
CF 0701
SF 0201
SF 0202
SF 0203
RFILC0023CEZZ
RFILC0121GEZZ
RFILC0278BMZZ
RFILC0286BMZZ
RFILC0289BMZZ
SOUND FILTER (TAPED)
FILTER CST8.00MTW MURATA
SAW FILTER K3953M SIEMENS
FILTER K9356M SIEMENS
SAW FILTER L9354M SIEMENS
S
S
S
S
S
AA
AC
AK
AC
AC
AD
AD
AM
AG
AK
T 0601
T 0701
RTRNF2073BMZZ
RTRNZ0578BMZZ
FBT HR-8168-00 FOR PHILIPS 32" FLAT CRS AQ
CHOPPER TG-0601A DIEMEN
S AF
BB
AT
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
VCKYTV1HB104K
VCEAGA1HW225M
RC-FZ4474BMNJ
VCEAGA1HW225M
VCKYTV1HF103Z
VCKYTV1HF223Z
VCEAGA1CW107M
VCEAGA1HW106M
VRS-TV1JD000J
VRS-TV1JD000J
VCKYTV1HF104Z
VCEAGA1AW477M
VCCCTV1HH270J
VCCCTV1HH221J
VCEAGA1CW107M
VCEAGA1CW106M
VCEAGA1CW106M
VCCCTV1HH220J
VCCCTV1HH220J
VCKYTV1HB333K
VCKYTV1HF104Z
VCKYTV1HF104Z
VCKYTV1HB103K
VCKYTV1HB103K
VCCWPA2HL8R2C
VCEAGA1CW226M
VCCCTV1HH220J
VCEAGA1CW106M
VCEAGA1CW106M
VCKYTV1HB102K
VCKYTV1HB102K
VCEAGA1AW337M
VCKYTV1HF104Z
VCEAGA1CW106M
VCEAGA1CW106M
VCEAGA1HW335M
VCKYTV1HF104Z
VCKYTV1EF334Z
VCKYTV1EF334Z
VCKYTV1HB102K
VCKYTV1HB102K
VCKYTV1HF104Z
RC-FZ4334BMNJ
RC-FZ4334BMNJ
RC-FZ4334BMNJ
VCEAGA1CW106M
VCKYTV1HF104Z
VCKYTV1HF104Z
VCCCPA1HH470J
VCCCTV1HH470J
VCKYTV1HF104Z
VCEAGA1AW337M
CERAM C 100NF 50V 2125SMD
S
ELEC C 2,2UF 20% 50V
S
POL FILM C 470nF 50V 5% ECQ-V PANASOS
S
S
S
ELEC C 100UF 20% 16V
S
ELEC C 10UF 20% 50V
S
2125 0 OHM 5% 1/10W SMD
S
2125 0 OHM 5% 1/10W SMD
S
S
S
CERAM C 27PF 50V 2125SMD
S
S
S
ELEC C 10UF 20% 16V
S
ELEC C 10UF 20% 16V
S
S
S
S
S
S
S
S
C 8,2PF 0,25 N1500 500V
S
ELEC C 22UF 20% 16V
S
S
ELEC C 10UF 20% 16V
S
ELEC C 10UF 20% 16V
S
S
S
S
S
ELEC C 10UF 20% 16V
S
ELEC C 10UF 20% 16V
S
S
S
S
S
S
S
S
ELEC C 10UF 20% 16V
S
S
S
CERAM C 47PF 5% 50V
S
S
S
S
CERAMIC FILTERS
TRANSFORMERS
!
!
CAPACITORS
PACKAGED CIRCUITS
COILS
0201
0202
0203
0204
0205
0301
0315
0316
0318
0350
0351
0352
0353
0501
0502
PARTS
L 0503
L 0601
L 0603
L 0604
L 0605
L 0606
L 0701
L 0705
L 0801
L 0803
L 2401
L 2402
LA 0609
32
0203
0204
0205
0206
0207
0208
0209
0211
0212
0213
0214
0215
0216
0217
0218
0219
0220
0221
0222
0223
0224
0225
0226
0227
0228
0229
0230
0305
0306
0309
0310
0311
0312
0313
0314
0315
0316
0317
0318
0319
0320
0321
0322
0324
0325
0326
0327
0328
0329
0330
0331
0332
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AC
AB
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AB
AA
AA
AA
AB
AB
AB
AA
AA
AA
AA
AA
AA
AA
70GF-63E
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
0333
0334
0335
0336
0337
0338
0339
0340
0341
0342
0343
0350
0351
0352
0353
0354
0356
0357
0358
0359
0360
0361
0362
0363
0364
0365
0366
0367
0368
0369
0370
0371
0372
0373
0374
0375
0376
0377
0378
0379
0380
0401
0403
0404
0405
0408
0409
0410
0411
0412
0413
0414
0415
0416
0417
0418
0419
0420
0421
0422
0427
0430
0431
0432
0434
0435
0436
0437
0438
0443
0447
0451
0501
0502
0503
0504
0505
0506
PARTS
DESCRIPTION
VCCCTV1HH470J
VCCCTV1HH5R0C
VCCCTV1HH5R0C
VCCCTV1HH471J
VCCCTV1HH471J
VCKYTV1HF104Z
VCKYTV1HF104Z
VCKYTV1EF224Z
RC-FZ4224BMNJ
VCEAGA1HW106M
VCEAGA1HW106M
VCKYTV1HF104Z
VCEAGA1EW227M
RC-FZ4104BMNJ
RC-FZ4104BMNJ
VCCCTV1HH101J
RC-FZ4153BMNJ
VCKYTV1HB102K
RC-FZ4104BMNJ
VCKYTV1HB472K
VCCCTV1HH561J
RC-FZ4474BMNJ
VCEAGA1HW225M
VCEAGA1EW227M
VCKYTV1HF104Z
VCEAGA1EW227M
VCKYTV1HF104Z
VCKYTV1HF104Z
RC-FZ4104BMNJ
VCCCTV1HH101J
RC-FZ4153BMNJ
VCKYTV1HB102K
VCEAGA1HW225M
RC-FZ4104BMNJ
VCKYTV1HB472K
VCCCTV1HH561J
RC-FZ4474BMNJ
VCEAGA1HW106M
VCEAGA1EW227M
VCKYTV1HF104Z
VCKYTV1HF473Z
VCCCTV1HH101J
VCCCTV1HH221J
VCCCTV1HH101J
VCCCTV1HH221J
VCKYTV1HF103Z
VCCCTV1HH101J
VCCCTV1HH391J
VCCCTV1HH101J
VCCCTV1HH101J
VCCCTV1HH101J
VCCCTV1HH391J
RC-FZ4684BMNJ
VCCCTV1HH101J
VCCCTV1HH101J
VCCCTV1HH391J
VCCCTV1HH391J
VCCCTV1HH101J
VCCCTV1HH101J
VCEAGA1AW476M
VRS-TV1JD000J
RC-FZ4334BMNJ
RC-FZ4334BMNJ
VCKYTV1CF105Z
VCKYTV1EF224Z
VRS-TV1JD000J
VRS-TV1JD000J
VCEAGA1HW476M
VCCCTV1HH101J
VCCCTV1HH101J
VCCCTV1HH680J
VCKYTV1HB103K
VCEAGA1EW477M
VCKYTV1HF104Z
VCCCTV1HH101J
RC-FZ4684BMNJ
VCKYTV1HF104Z
VCKYTV1HF104Z
S
S
S
S
S
S
S
S
ELEC C 10UF 20% 50V
S
ELEC C 10UF 20% 50V
S
S
S
S
POL FILM C 15nF 50V 5% ECQ-B PANASOS
S
CERAM C 4,7NF 50V 2125SMD
S
S
S
S
S
S
S
S
S
S
S
S
S
ELEC C 10UF 20% 50V
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
ELEC C 47UF 20% 10V
S
2125 0 OHM 5% 1/10W SMD
S
CERAM C 1UF 16V 2125SMD
S
S
2125 0 OHM 5% 1/10W SMD
S
2125 0 OHM 5% 1/10W SMD
S
ELEC C 47UF 20% 50V
S
S
S
S
S
S
S
S
S
S
*
SN CODE
EX CODE
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AC
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AC
AA
AA
AA
AA
AA
AA
AA
AA
AB
AB
AB
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AC
AA
AA
!
!
!
33
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
0507
0508
0509
0510
0511
0512
0514
0515
0516
0518
0520
0521
0522
0524
0525
0526
0527
0528
0530
0531
0532
0534
0536
0537
0601
0606
0607
0610
0611
0613
0615
0616
0617
0619
0620
0632
0642
0643
0644
0645
0651
0701
0702
0703
0704
0705
0706
0707
0710
0711
0712
0713
0714
0715
0716
0717
0718
0719
0720
0721
0722
0723
0724
0725
0728
0730
0731
0732
0733
0735
0737
0738
0739
0740
0741
0742
0743
0746
0770
PARTS
DESCRIPTION
VCKYTV1HB472K
VCCCTV1HH561J
VCEAGA1EW227M
VCKYTV1HF104Z
VCEAGA1HW225M
VCKYTV1EF224Z
RC-FZ4393BMNJ
VCCCTV1HH681J
VCCCTV1HH271J
VCCCTV1HH100D
VCEAGA1VW477M
VCKYTV1HB102K
VCKYTV1HF104Z
RC-FZ4104BMNJ
VRS-TV1JD562J
VCEAGA1HW106M
VCKYTV1HF104Z
VCEAGA1JW106M
VCKYTV1HF103Z
VCKYTV1HB103K
VCCCTV1HH101J
VCKYTV1HB102K
VCEAGA1AW476M
VCKYTV1HB472K
RC-FZ0171BMZZ
VCKYTV1HB104K
VCEAGA1AW337M
RC-FZ0186BMZZ
RC-FZ6684BMNJ
RC-FZ6564BMNJ
VCEAGA1EW477M
VCEAGA1VW477M
VCKYTV1HF104Z
VCEA4A2CN225M
VCEA4A2CN225M
VCEAGA1EW477M
RC-FZ4683BMNJ
VCKYTV1HF103Z
VCEAGA1CW227M
VCKYTV1EF224Z
RC-KZ0073CEZZ
RC-FZ0070BMZZ
RC-FZ0173BMZZ
RC-KZ0165BMZZ
RC-KZ0165BMZZ
RC-EZ0141BMZZ
VCEAGA1CW226M
VCEAGA1CW107M
RC-FZ0156BMZZ
RC-KZ0036CEZZ
VCCCTV1HH101J
RC-FZ4683BMNJ
RC-FZ4823BMNJ
VCCCTV1HH331J
VCKYTV1HB332K
VCKYTV1HB153K
VCEAGA1EW108M
VCEAGA1EW108M
RC-EZ0258CEZZ
RC-EZ0132BMZZ
VCKYTV1HB104K
VCEAGA1AW228M
VCEAGA1CW227M
VCKYTV1HB472K
VCKYTV1HF104Z
VCKYTV1HF103Z
VCKYTV1HF103Z
VCKYTV1HF103Z
VCKYTV1HF103Z
VCKYTV1HB272K
VCKYTV1CF105Z
VCCCTV1HH560J
VCEAGA1CW227M
VCKYTV1HF223Z
VCKYTV1HF104Z
VCKYTV1HB683K
VCKYTV1HF104Z
RC-FZ0070BMZZ
RC-KZ0106GEZZ
S
S
S
S
S
S
POL FILM C 39NF 50V 5% ECQ-B PANASOS
S
S
S
S
S
S
2125 5,6KOHM 5% 1/10W SMD
S
ELEC C 10UF 20% 50V
S
S
ELEC C 10UF 20% 63V
S
S
S
S
S
ELEC C 47UF 20% 10V
S
S
C MKP 15NF 1700V PHILIPS
S
S
S
C 22NF 630V 222237514223 PHILIPS
S
PP FILM C 680NF 5% 250V
S
PP FILM C 560NF 5% 250V
S
S
S
S
C UVZ2C2R2MEH1TA NICHICON
S
C UVZ2C2R2MEH1TA NICHICON
S
S
S
S
S
CERAM C 2,2NF 2KV
S
PLAST C MET 0,1uF 250V B81121-C-B125 S
POL C 47NF 400V PHIL.365
S
CERAM C DE0905-979E332ZAC250
S
CERAM C DE0905-979E332ZAC250
S
ELEC C 68UF 450V
S
ELEC C 22UF 20% 16V
S
S
C B32529-B6473K SIEMENS
S
CERAM C 330PF 2KV
S
S
S
S
S
ELEC C 1000UF 20% 25V
S
ELEC C 1000UF 20% 25V
S
ELEC C 100MF 200V
S
C UVX1V471MPA1CA NICHICON
S
S
ELEC C 2200UF 20% 10V
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
PLAST C MET 0,1uF 250V B81121-C-B125 S
CERAM C DE1410 E332M-KX
S
*
SN CODE
EX CODE
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AD
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AD
AD
AN
AA
AA
-AA
AA
AD
AA
AA
AA
AA
AA
AA
AA
AD
AD
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AD
AB
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AE
AA
AA
AD
AE
AF
AB
AC
AA
AB
AB
AB
AB
AA
AA
AA
AD
AD
AZ
AB
AB
-AA
AA
AE
AB
AA
AB
AA
AA
AA
AA
AD
AD
AK
AC
AA
AC
AA
AA
AA
AA
AA
AA
AA
AB
AB
AA
AA
AA
AA
AA
AA
AD
AC
70GF-63E
PARTS
DESCRIPTION
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
0801
0802
0803
0804
0807
0808
0809
0811
0812
0813
0814
0815
0816
0817
0818
0819
0820
0821
0822
0823
0824
0825
1001
1002
1005
1014
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1030
1032
1033
1034
2401
2402
2403
2404
2405
2406
2407
2408
VCKYTV1HF104Z
VCEAGA1HW106M
VCKYTV1HF104Z
VCEAGA1HW335M
VCKYTV1EF224Z
VCKYTV1EF224Z
VCKYTV1HB102K
VCKYTV1HF104Z
VCEAGA1HW226M
VCCCTV1HH3R3C
VCCCTV1HH6R8D
VCEAGA1HW226M
VCKYTV1HF104Z
VCKYTV1HB104K
VCEAGA1CW107M
VCKYTV1HB102K
RC-FZ4684BMNJ
RC-FZ4684BMNJ
RC-FZ4684BMNJ
VCCCTV1HH821J
VCKYTV1HF103Z
VCEAGA1CW106M
VCEAGA0JW477M
VCKYTV1HF104Z
VCKYTV1HF104Z
VCKYTV1HF104Z
VCKYTV1HB104K
VCKYTV1HF104Z
VCCCTV1HH470J
VCCCTV1HH680J
VCKYTV1HF104Z
VCKYTV1HF104Z
VCKYTV1HF153Z
VCKYTV1HF153Z
VCKYTV1HF153Z
VCKYTV1HF103Z
VCEAGA1AW477M
VCKYTV1HF104Z
VCCCTV1HH331J
VCEAGA1AW476M
VCKYTV1HF683Z
VCCCTV1HH100D
VCCCTV1HH220J
VCCCTV1HH220J
VCKYTV1HF104Z
VCKYTV1HF104Z
VCKYTV1EF224Z
VCKYTV1HF104Z
VCKYTV1EF224Z
VCKYTV1HF104Z
S
ELEC C 10UF 20% 50V
S
S
S
S
S
S
S
ELEC C 22UF 20% 50V
S
CERAM C 3,3PF 50V 2125SMD
S
CERAM C 6,8PF 50V 2125SMD
S
ELEC C 22UF 20% 50V
S
S
S
S
S
S
S
ELEC C 10UF 20% 16V
S
ELEC C 470UF 20% 6,3V
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
ELEC C 47UF 20% 10V
S
S
S
S
S
S
S
S
S
S
S
*
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
0203
0204
0205
0208
0209
0210
0211
0215
0216
0217
0219
0220
0226
0229
0230
0231
0232
0233
0234
0235
0236
0237
0238
0239
0240
0241
0242
VRS-TV1JD102J
VRS-TV1JD102J
VRS-TV1JD391J
VRS-TV1JD102J
VRS-TV1JD332J
VRS-TV1JD152J
VRS-TV1JD102J
VRS-TV1JD103J
VRS-TV1JD151J
VRS-TV1JD102J
VRS-TV1JD473J
VRS-TV1JD473J
VRS-TV1JD000J
VRD-RA2HD822J
VRD-RA2HD822J
VRD-RA2HD822J
VRD-RA2BE561J
VRD-RA2BE561J
VRD-RA2BE101J
VRS-TV1JD153J
VRS-TV1JD562J
VRS-TV1JD221J
VRS-TV1JD221J
VRS-TV1JD103J
VRS-TV1JD224J
VRS-TV1JD104J
VRS-TV1JD104J
SN CODE
EX CODE
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AC
AC
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
RESISTORS
2125 1KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 390 OHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 3.3KOHM 5% 1/10W SMD
2125 1.5KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 150 OHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 47KOHM 5% 1/10W SMD
2125 47KOHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
RES 8,2KOHM 5% 1/2W
RES 8,2KOHM 5% 1/2W
RES 8,2KOHM 5% 1/2W
RES 560 OHM 5% 1/8W
RES 560 OHM 5% 1/8W
RES 100 OHM 5% 1/8W
2125 15KOHM 5% 1/10W SMD
2125 5,6KOHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 220KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
34
0243
0244
0245
0246
0247
0248
0249
0251
0252
0253
0254
0255
0256
0257
0258
0259
0301
0302
0303
0304
0306
0307
0308
0309
0310
0311
0312
0313
0314
0315
0316
0317
0318
0319
0320
0321
0322
0323
0350
0351
0352
0353
0354
0355
0356
0357
0358
0359
0360
0361
0362
0363
0372
0373
0374
0375
0376
0401
0402
0403
0404
0405
0406
0408
0409
0410
0412
0413
0414
0415
0416
0418
0419
0420
0421
0422
0423
0424
0425
PARTS
DESCRIPTION
*
SN CODE
EX CODE
VRS-TV1JD104J
VRS-TV1JD333J
VRS-TV1JD152J
VRS-TV1JD224J
VRS-TV1JD102J
VRS-TV1JD102J
VRS-TV1JD824J
VRS-TV1JD683J
VRS-TV1JD183J
VRS-TV1JD102J
VRS-TV1JD123J
VRS-TV1JD101J
VRS-TV1JD223J
VRS-TV1JD221J
VRS-TQ2BD220J
VRS-TV1JD472J
VRS-TV1JD104J
VRS-TV1JD104J
VRS-TV1JD101J
VRS-TV1JD101J
VRD-RA2BE101J
VRD-RA2BE101J
VRS-TV1JD101J
VRS-TV1JD223J
VRS-TV1JD102J
VRS-TV1JD104J
VRS-TV1JD223J
VRS-TV1JD102J
VRS-TV1JD104J
VRD-RA2BE101J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD104J
VRS-TV1JD101J
VRS-TV1JD101J
VRS-TV1JD104J
VRS-TV1JD104J
VRS-TV1JD104J
VRS-TV1JD103J
VRS-TV1JD273J
VRS-TV1JD123J
VRS-TV1JD151J
VRS-TV1JD103J
VRS-TV1JD273J
VRS-TV1JD103J
VRS-TV1JD151J
VRS-TV1JD104J
VRD-RA2BE104J
VRS-TV1JD103J
VRS-TV1JD103J
VRS-TV1JD472J
VRS-TV1JD472J
VRS-TV1JD103J
VRS-TV1JD103J
VRS-TV1JD473J
VRS-TV1JD473J
VRS-TV1JD472J
VRS-TV1JD750J
VRS-TV1JD750J
VRS-TV1JD101J
VRS-TV1JD101J
VRS-TV1JD101J
VRS-TV1JD101J
VRD-RA2EE750J
VRS-TV1JD750J
VRS-TV1JD223F
VRS-TV1JD101J
VRS-TV1JD101J
VRS-TV1JD101J
VRS-TV1JD101J
VRS-TV1JD223F
VRD-RA2HD680J
VRD-RA2EE750J
VRD-RA2BE102J
VRS-TV1JD151J
VRS-TV1JD151J
VRS-TV1JD151J
VRD-RA2BE750J
VRD-RA2EE750J
2125 100KOHM 5% 1/10W SMD
2125 33KOHM 5% 1/10W SMD
2125 1.5KOHM 5% 1/10W SMD
2125 220KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 820KOHM 5% 1/10W SMD
2125 68KOHM 5% 1/10W SMD
2125 18KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 12KOHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 22KOHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
OX RE 22 OHM 5% 1/8W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
RES 100 OHM 5% 1/8W
RES 100 OHM 5% 1/8W
2125 100 OHM 5% 1/10W SMD
2125 22KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 22KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
RES 100 OHM 5% 1/8W
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 27KOHM 5% 1/10W SMD
2125 12KOHM 5% 1/10W SMD
2125 150 OHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 27KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 150 OHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
RES 100KOHM 5% 1/8W
2125 10KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 47KOHM 5% 1/10W SMD
2125 47KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 75 OHM 5% 1/10W SMD
2125 75 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
RES 75 OHM 5% 1/4W
2125 75 OHM 5% 1/10W SMD
2125 22KOHM 1% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 22KOHM 1% 1/10W SMD
RES 68 OHM 5% 1/2W
RES 75 OHM 5% 1/4W
RES 1KOHM 5% 1/8W
2125 150 OHM 5% 1/10W SMD
2125 150 OHM 5% 1/10W SMD
2125 150 OHM 5% 1/10W SMD
RES 75 OHM 5% 1/8W
RES 75 OHM 5% 1/4W
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
70GF-63E
!
!
!
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
0426
0427
0428
0429
0430
0431
0432
0433
0434
0435
0436
0437
0445
0447
0448
0450
0451
0452
0453
0454
0455
0456
0458
0459
0460
0461
0462
0463
0464
0465
0466
0467
0468
0501
0502
0503
0504
0505
0506
0507
0508
0509
0510
0511
0512
0513
0514
0515
0516
0517
0518
0519
0521
0522
0524
0525
0526
0527
0528
0530
0532
0533
0535
0537
0538
0539
0540
0541
0542
0544
0545
0547
0548
0549
0550
0552
0553
0554
0555
PARTS
DESCRIPTION
*
SN CODE
EX CODE
VRD-RA2BE750J
VRS-TV1JD820J
VRS-TV1JD101J
VRS-TV1JD101J
VRS-TV1JD101J
VRS-TV1JD101J
VRS-TV1JD104J
VRS-TV1JD104J
VRS-TV1JD102J
VRS-TV1JD102J
RR-XZ0112BMZZ
VRS-TV1JD471J
VRS-TV1JD104J
VRS-TV1JD221J
VRS-TV1JD221J
VRS-TV1JD220J
VRD-RA2HD121J
VRS-TV1JD223F
VRS-TV1JD183F
VRS-TV1JD331J
VRD-RA2BE103J
VRS-TV1JD153J
VRS-TV1JD102J
VRS-TV1JD102J
VRS-TV1JD183F
VRS-TV1JD104J
VRS-TV1JD183F
VRS-TV1JD101J
VRD-RA2BE221J
VRS-TV1JD103J
VRS-TV1JD221J
VRS-TQ2BD333J
VRS-TV1JD000J
VRD-RA2HD101J
VRS-TV1JD332J
VRD-RA2BE102J
VRS-TV1JD393J
VRS-TV1JD222J
VRS-TQ2BD121J
VRS-TV1JD822J
VRD-RA2BE681J
VRS-TV1JD393J
VRS-TV1JD822J
VRS-TV1JD151J
VRS-TV1JD332J
VRS-TV1JD224J
VRS-TV1JD271J
VRS-TV1JD122J
VRS-TV1JD102J
VRS-TV1JD153J
VRN-VV3DB1R2J
VRD-RA2HD104J
VRS-TV1JD123J
VRS-TV1JD222J
VRS-TV1JD820J
VRS-TV1JD563J
VRD-RA2BE472J
VRS-TV1JD102J
VRS-TV1JD104J
RR-XZ0212BMZZ
VRS-TV1JD822J
VRD-RA2EE821J
VRS-TV1JD682J
VRS-TV1JD822J
VRS-TV1JD273J
VRS-TV1JD332J
VRS-TV1JD472J
VRD-RA2BE333J
VRS-TV1JD822J
VRS-TV1JD102J
VRS-TV1JD104J
VRS-TV1JD392J
VRS-TV1JD562J
VRS-TV1JD273J
VRD-RA2BE123J
VRS-TV1JD000J
RR-XZ0100BMZZ
VRS-TV1JD561J
VRS-TV1JD824J
RES 75 OHM 5% 1/8W
2125 82 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
FUS RES 10R TAP 5% 1/3W
2125 470 OHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
2125 22 OHM 5% 1/10W SMD
RES 120 OHM 5% 1/2W
2125 22KOHM 1% 1/10W SMD
2125 18KOHM 1% 1/10W SMD
2125 330 OHM 5% 1/10W SMD
RES 10KOHM 5% 1/8W
2125 15KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 18KOHM 1% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 18KOHM 1% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
RES 220 OHM 5% 1/8W
2125 10KOHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
OX RE 33KOHM 5% 1/8W SMD
2125 0 OHM 5% 1/10W SMD
RES 100 OHM 5% 1/2W
2125 3.3KOHM 5% 1/10W SMD
RES 1KOHM 5% 1/8W
2125 39KOHM 5% 1/10W SMD
2125 2,2KOHM 5% 1/10W SMD
2125 8,2KOHM 5% 1/10W SMD
RES 680 OHM 5% 1/8W
2125 39KOHM 5% 1/10W SMD
2125 8,2KOHM 5% 1/10W SMD
2125 150 OHM 5% 1/10W SMD
2125 3.3KOHM 5% 1/10W SMD
2125 220KOHM 5% 1/10W SMD
2125 270 OHM 5% 1/10W SMD
2125 1,2KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 15KOHM 5% 1/10W SMD
MET FILM R 1,2 OHM 5% 2W
RES 100KOHM 5% 1/2W
2125 12KOHM 5% 1/10W SMD
2125 2,2KOHM 5% 1/10W SMD
2125 82 OHM 5% 1/10W SMD
2125 56KOHM 5% 1/10W SMD
RES 4,7KOHM 5% 1/8W
2125 1KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 8,2KOHM 5% 1/10W SMD
RES 820 OHM 5% 1/4W
2125 6.8KOHM 5% 1/10W SMD
2125 8,2KOHM 5% 1/10W SMD
2125 27KOHM 5% 1/10W SMD
2125 3.3KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
RES 33KOHM 5% 1/8W
2125 8,2KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 3.9KOHM 5% 1/10W SMD
2125 5,6KOHM 5% 1/10W SMD
2125 27KOHM 5% 1/10W SMD
RES 12KOHM 5% 1/8W
2125 0 OHM 5% 1/10W SMD
FUS RES 1R0 TAP 5% 1/3W
2125 560 OHM 5% 1/10W SMD
2125 820KOHM 5% 1/10W SMD
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
!
!
!
!
!
!
!
!
35
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
0556
0558
0601
0603
0605
0607
0608
0610
0612
0613
0614
0615
0616
0617
0618
0619
0620
0622
0623
0624
0625
0626
0627
0628
0642
0643
0644
0646
0647
0650
0703
0706
0707
0708
0711
0712
0713
0714
0715
0716
0717
0718
0719
0720
0721
0722
0723
0724
0727
0728
0730
0733
0735
0736
0737
0738
0739
0740
0741
0742
0743
0744
0745
0746
0747
0748
0750
0751
0754
0755
0758
0762
0763
0765
0766
0767
0768
0769
0770
PARTS
DESCRIPTION
*
SN CODE
EX CODE
VRS-TV1JD103J
VRS-TV1JD000J
VRS-TV1JD392J
VRD-RA2BE331J
VRS-TV1JD471J
VRS-TV1JD123J
VRD-RA2EE102J
RR-XZ0206BMZZ
RR-XZ0116BMZZ
VRS-LU3LB332J
VRD-RA2HD103J
VRS-TV1JD561J
VRN-VV3AB2R7J
RR-XZ0216BMZZ
VRD-RA2BE102J
VRD-RA2HD561J
VRD-RA2BE102J
VRS-TV1JD103J
VRN-VV3DB1R0J
VRN-LU3DB5R6J
VRS-TQ2BD181J
VRS-TV1JD472J
VRS-TQ2BD181J
VRD-RA2EE102J
VRS-TV1JD471J
RR-XZ0200BMZZ
VRS-TV1JD221J
VRS-TV1JD564J
VRS-TV1JD153J
VRD-RA2BE562J
VRD-RA2HD154J
VRS-TV1JD203J
VRS-TV1JD912J
VRS-TV1JD102J
VRS-TV1JD182J
VRS-TV1JD561J
VRC-MA2HG564J
VRC-MA2HG564J
VRW-KS3HC473J
VRN-VV3ABR27J
VRS-TV1JD223J
VRS-TQ2BD180J
VRS-TV1JD221J
VRS-TV1JD103J
VRD-RA2HD154J
VRS-TV1JD330J
VRS-VV3AB271J
VRS-TQ2BD271J
VRD-RA2HD181J
VRD-RA2HD181J
VRS-VV3AB101J
VRS-TV1JD473J
VRS-TV1JD474J
VRS-TV1JD474J
VRS-TV1JD184J
VRS-TV1JD473J
VRS-TV1JD473J
VRS-TV1JD473J
VRC-UA2HG825K
VRC-UA2HG825K
VRS-TQ2BD473F
VRS-TQ2BD473F
VRS-TV1JD182F
VRS-TV1JD183J
VRS-TV1JD272J
VRS-TV1JD472J
VRS-TV1JD105J
VRS-TV1JD102J
VRS-TV1JD2R7J
VRS-TV1JD391J
VRS-TV1JD101J
VRS-TQ2BD221J
RR-XZ0224BMZZ
VRS-TQ2BD101J
VRS-TQ2BD101J
VRS-TV1JD103J
VRS-TQ2BD221J
VRS-TV1JD821J
RR-XZ0229BMZZ
2125 10KOHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 3.9KOHM 5% 1/10W SMD
RES 330 OHM 5% 1/8W
2125 470 OHM 5% 1/10W SMD
2125 12KOHM 5% 1/10W SMD
RES 1KOHM 5% 1/4W
SET MET OX R 3,3KOHM 5% 3W LW
RES 10KOHM 5% 1/2W
2125 560 OHM 5% 1/10W SMD
MET FILM R 2.7 OHM 5% 1W
RES 1KOHM 5% 1/8W
RES 560 OHM 5% 1/2W
RES 1KOHM 5% 1/8W
2125 10KOHM 5% 1/10W SMD
MET FILM R 1 OHM 5% 2W
SET MET FILM 5,6 OHM 5% 2W LW
2125 4.7KOHM 5% 1/10W SMD
RES 1KOHM 5% 1/4W
2125 470 OHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
2125 560KOHM 5% 1/10W SMD
2125 15KOHM 5% 1/10W SMD
RES 5,6KOHM 5% 1/8W
RES 150KOHM 5% 1/2W
2125 20KOHM 5% 1/10W SMD
2125 9.1KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 1,8KOHM 5% 1/10W SMD
2125 560 OHM 5% 1/10W SMD
SOLID R 560KOHM 5% 1/2W
SOLID R 560KOHM 5% 1/2W
WOUND RES 47KOHM 5% 5W
MET FILM R .27 OHM 5% 1W
2125 22KOHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
RES 150KOHM 5% 1/2W
2125 33 OHM 5% 1/10W SMD
MET OX RES 270 OHM 5% 1W
RES 180 OHM 5% 1/2W
RES 180 OHM 5% 1/2W
2125 47KOHM 5% 1/10W SMD
2125 470KOHM 5% 1/10W SMD
2125 470KOHM 5% 1/10W SMD
2125 180KOHM 5% 1/10W SMD
2125 47KOHM 5% 1/10W SMD
2125 47KOHM 5% 1/10W SMD
2125 47KOHM 5% 1/10W SMD
SOLID R 8,2MOHM 10% 1/2W
SOLID R 8,2MOHM 10% 1/2W
OX RE 47KOHM 1% 1/8W
OX RE 47KOHM 1% 1/8W
2125 1,8KOHM 1% 1/10W SMD
2125 18KOHM 5% 1/10W SMD
2125 2,7KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 1MOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 2,7 OHM 5% 1/10W SMD
2125 390 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
OX RE 100 0HM 5% 1/8W SMD
OX RE 100 0HM 5% 1/8W SMD
2125 10KOHM 5% 1/10W SMD
2125 820 OHM 5% 1/10W SMD
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AB
AB
AA
AA
AA
AB
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AE
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
70GF-63E
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
0771
0774
0775
0776
0777
0787
0788
0789
0790
0791
0792
0801
0803
0804
0805
0806
0807
0808
0809
0810
0811
0812
1001
1002
1003
1004
1005
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026
1027
1028
1029
1030
1031
1032
1033
1035
1036
1037
1040
1041
1042
1043
1044
1045
1046
1047
1048
1049
1051
1052
1053
1054
1055
1056
1057
1058
1059
1060
1064
2401
2402
2403
2404
2405
2406
2407
2408
2409
2410
2411
PARTS
DESCRIPTION
*
SN CODE
EX CODE
VRS-VV3AB474J
VRS-TQ2BD474J
VRS-TQ2BD474J
VRS-TV1JD823J
VRS-TV1JD470J
VRS-TV1JD473J
VRS-TV1JD183J
VRS-TV1JD183J
VRD-RA2BE183J
VRD-RA2BE183J
VRD-RA2BE682J
VRS-TV1JD103J
VRS-TV1JD122J
VRS-TV1JD271J
VRS-TV1JD222J
VRS-TV1JD102J
VRS-TV1JD333J
VRS-TV1JD103J
VRS-TV1JD103J
VRS-TV1JD103J
VRS-TV1JD103J
VRS-TV1JD222J
VRS-TV1JD332J
VRS-TV1JD332J
VRD-RA2BE332J
VRS-TV1JD332J
VRS-TV1JD472J
VRS-TV1JD332J
VRD-RA2BE101J
VRD-RA2BE332J
VRD-RA2BE332J
VRS-TV1JD472J
VRD-RA2BE101J
VRS-TV1JD221J
VRS-TV1JD822J
VRS-TV1JD822J
VRS-TV1JD221J
VRD-RA2BE103J
VRS-TV1JD102J
VRS-TV1JD472J
VRS-TV1JD472J
VRS-TV1JD472J
VRS-TV1JD273J
VRS-TV1JD103J
VRS-TV1JD472J
VRD-RA2BE472J
VRS-TV1JD472J
VRS-TV1JD101J
VRS-TV1JD472J
VRS-TV1JD822J
VRS-TV1JD822J
VRS-TV1JD103J
VRS-TV1JD822J
VRS-TV1JD182J
VRD-RA2BE103J
VRS-TV1JD821J
VRS-TV1JD103J
VRS-TV1JD223J
VRS-TV1JD472J
VRS-TV1JD104J
VRS-TV1JD104J
VRD-RA2BE473J
VRS-TV1JD000J
VRS-TV1JD102J
VRD-RA2BE101J
VRD-RA2BE101J
VRS-TV1JD123J
VRD-RA2BE101J
VRS-TV1JD471J
VRS-TV1JD472J
VRS-TV1JD152J
VRS-TV1JD560J
VRS-TV1JD104J
VRS-TV1JD222J
VRS-TV1JD222J
VRS-TV1JD332J
VRS-TV1JD000J
VRS-TV1JD101J
VRS-TV1JD101J
MET OX RES 470KOHM 5% 1W
2125 82KOHM 5% 1/10W SMD
2125 47 OHM 5% 1/10W SMD
2125 47KOHM 5% 1/10W SMD
2125 18KOHM 5% 1/10W SMD
2125 18KOHM 5% 1/10W SMD
RES 18KOHM 5% 1/8W
RES 18KOHM 5% 1/8W
RES 6,8KOHM 5% 1/8W
2125 10KOHM 5% 1/10W SMD
2125 1,2KOHM 5% 1/10W SMD
2125 270 OHM 5% 1/10W SMD
2125 2,2KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 33KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 2,2KOHM 5% 1/10W SMD
2125 3.3KOHM 5% 1/10W SMD
2125 3.3KOHM 5% 1/10W SMD
RES 3,3KOHM 5% 1/8W
2125 3.3KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 3.3KOHM 5% 1/10W SMD
RES 100 OHM 5% 1/8W
RES 3,3KOHM 5% 1/8W
RES 3,3KOHM 5% 1/8W
2125 4.7KOHM 5% 1/10W SMD
RES 100 OHM 5% 1/8W
2125 220 OHM 5% 1/10W SMD
2125 8,2KOHM 5% 1/10W SMD
2125 8,2KOHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
RES 10KOHM 5% 1/8W
2125 1KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 27KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
RES 4,7KOHM 5% 1/8W
2125 4.7KOHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 8,2KOHM 5% 1/10W SMD
2125 8,2KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 8,2KOHM 5% 1/10W SMD
2125 1,8KOHM 5% 1/10W SMD
RES 10KOHM 5% 1/8W
2125 820 OHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 22KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
RES 47KOHM 5% 1/8W
2125 0 OHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
RES 100 OHM 5% 1/8W
RES 100 OHM 5% 1/8W
2125 12KOHM 5% 1/10W SMD
RES 100 OHM 5% 1/8W
2125 470 OHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 1.5KOHM 5% 1/10W SMD
2125 56 OHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 2,2KOHM 5% 1/10W SMD
2125 2,2KOHM 5% 1/10W SMD
2125 3.3KOHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
PARTS
DESCRIPTION
*
R 2412
RA 0611
VRS-TV1JD101J
VRS-VV3DB102J
2125 100 OHM 5% 1/10W SMD
MET OX RES 1KOHM 5% 2W
S AA
S AA
F 0601
F 0602
FB 0301
FB 0302
FB 0303
FB 0501
FB 0701
FB 0702
FB 0703
FB 0705
FB 0801
FB 0802
FB 1001
FB 1002
(AA)
(EW)
(F)
(F1)
(F2)
(G2)
(H)
(HV)
(K)
(MAT)
(MO)
(OPC)
(PW)
(RC)
(RT)
(ST)
(SV)
(SW1)
(SW2)
(AA)
(CC)
(CN1)
(CN2)
(EW)
(F)
(FV)
(G)
(H)
(HD)
(K)
(MO)
(OP)
(RC)
(RT)
(SB)
(SP)
(SS)
(ST)
(ST)
(SV)
(SW1)
(SW2)
IC 1002
J 0002
J 0039
J 0062
J 0065
J 0098
J 0126
J 0132
J 0152
J 0218
J 0219
J 0220
J 0231
J 0240
J 0248
J 0279
J 0281
J 0283
QFS-J2521CEZZ
QFS-J2521CEZZ
RBLN-0037CEZZ
RBLN-0037CEZZ
RBLN-0037CEZZ
RBLN-0020CEZZ
RBLN-0037CEZZ
RBLN-0037CEZZ
RBLN-0037CEZZ
RBLN-0020CEZZ
VP-NM3R3MR19N
RCORF0003GEZZ
VRS-TQ2BD000J
RBLN-0037CEZZ
QCNW-2820BMZZ
QCNW-2855BMZZ
QCNW-2828BMZZ
QCNW-2866BMZZ
QCNW-2866BMZZ
QCNW-2830BMZZ
QCNW-2783BMZZ
QCNW-2819BMZZ
QCNW-2831BMZZ
QCNW-2857BMZZ
QCNW-2796BMZZ
QCNW-2838BMZZ
QCNW-2868BMZZ
QCNW-2795BMZZ
QCNW-2799BMZZ
QCNW-2838BMZZ
QCNW-2797BMZZ
QCNW-2795BMZZ
QCNW-2795BMZZ
QCNCM0672FCZZ
QPLGN0241CEZZ
QSOCZ2109BMZZ
QSOCZ2107BMZZ
QPLGN0241CEZZ
QPLGN0505CEZZ
QPLGN0241CEZZ
QPLGN0207CEZZ
QPLGN0541CEZZ
QPLGN0341CEZZ
QPLGN0841CEZZ
QPLGN0441CEZZ
QPLGN0341CEZZ
QPLGN0341CEZZ
QPLGN0241CEZZ
QSOCN0685CEZZ
QPLGN0441CEZZ
QPLGN0341CEZZ
QCNW-2795BMZZ
QPLGN0341CEZZ
QPLGN0341CEZZ
QPLGN0341CEZZ
QPLGN0341CEZZ
QSOCZ0115SC32
VRS-TV1JD000J
VP-DF3R3K0000
VP-DF3R3K0000
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
QFS-J1023CEZZ
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRD-RA2BE392J
VRS-TV1JD000J
VRD-RA2HD121J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
FUSE 2,5A/125V LITTELFUSE
S
FUSE 2,5A/125V LITTELFUSE
S
BALUN FBA04HA90088-00 T/Y
S
S
S
BALUNE
S
S
S
S
BALUNE
S
COIL 3,3UH SMD
S
SMDFERRIT HF50ACB322513
S
3216 0 OHM 5% 1/8W SMD
S
S
VOLTAGE SUPPLY 220V
S
WIRE 2 WAYS 43CM DOUBLE INSULATIO S
WIRE (F) 4 WAYS
S
HIGHT VOLTAGE FOCUS WIRE
S
HIGHT VOLTAGE FOCUS WIRE
S
WIRE 13040000-0 MARBEL
S
WIRE (KA) 5 WAYS
S
WIRE 20020000-0 MARBEL
S
WIRE (K)
S
MAT WIRE HR-16521 TO FLYBACK HR-816S
WIRE 3 WAYS (MO)
S
WIRE 2 WAYS PROTECTED
S
POWER SUPPLIER WIRE PFC PWA
S
WIRE 3 WAYS
S
WIRE 2 WAYS (RT)
S
WIRE 2 WAYS PROTECTED
S
WIRE 3 WAYS
S
WIRE 3 WAYS
S
WIRE 3 WAYS
S
CONN B2P3-VH JST
S
PLUG
S
TWIN SCART JR21A13 CONECT
S
SOCKET AV
S
PLUG
S
PLUG
S
PLUG
S
PLUG
S
PLUG
S
PLUG
S
PLUG
S
PLUG 4PIN
S
PLUG
S
PLUG
S
PLUG
S
SOCKET
S
PLUG 4PIN
S
PLUG
S
WIRE 3 WAYS
S
PLUG
S
PLUG
S
PLUG
S
PLUG
S
SOCKET IC 32 PIN
S
2125 0 OHM 5% 1/10W SMD
S
PEAK COIL 3,3UH 10%
S
PEAK COIL 3,3UH 10%
S
2125 0 OHM 5% 1/10W SMD
S
2125 0 OHM 5% 1/10W SMD
S
2125 0 OHM 5% 1/10W SMD
S
2125 0 OHM 5% 1/10W SMD
S
FUSE 492001 T1 LITTELFUSE
S
2125 0 OHM 5% 1/10W SMD
S
2125 0 OHM 5% 1/10W SMD
S
2125 0 OHM 5% 1/10W SMD
S
RES 3,9KOHM 5% 1/8W
S
2125 0 OHM 5% 1/10W SMD
S
RES 120 OHM 5% 1/2W
S
2125 0 OHM 5% 1/10W SMD
S
2125 0 OHM 5% 1/10W SMD
S
2125 0 OHM 5% 1/10W SMD
S
SN CODE
EX CODE
AA
AA
MISCELLANEOUS PARTS
!
!
!
!
!
36
AC
AC
AB
AB
AB
AA
AB
AB
AB
AA
AA
AA
AA
AB
AA
AA
AB
AA
AA
AA
AB
AA
AD
AC
AA
AA
-AA
AA
AA
AA
AA
AA
AA
AA
AG
AF
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AD
AD
AB
AB
AB
AB
AB
AB
AB
AB
AD
AC
AA
AB
AE
AE
AF
AC
AC
AC
AF
AC
AM
AK
AE
AE
-AD
AE
AE
AD
AD
AD
AB
AA
AK
AE
AA
AB
AA
AA
AA
AA
AB
AA
AA
AA
AA
AC
AA
AA
AD
AA
AA
AA
AA
AB
AA
AB
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
70GF-63E
J 0286
J 0289
J 0294
J 0302
J 0310
J 0313
J 0324
J 0325
J 0332
J 0335
J 0336
J 0338
J 0339
J 0341
J 0342
J 0701
JF 0003
JF 0015
JF 0016
JF 0020
JF 0021
JF 0022
JF 0038
JF 0052
JF 1005
JF 1006
JF 1007
JL 0012
JL 0015
T 0702
PARTS
DESCRIPTION
*
SN CODE
EX CODE
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VCKYTV1HB104K
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
QCNW-2803BMZZ
QCNW-2736BMZZ
VHDBTW34F//-1
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
COAXIAL WIRE 1 WAY
WIRE 1 WAY
DIODE BT134W-500 PHILIPS
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AD
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AD
AF
AE
S AA
S AF
AC
AN
PWB-B
CRT UNIT
INTEGRATED CIRCUITS
IC1601
IC 1801
VHIBA4558F/-1
RH-IX1416BMZZ
IC TEA 5101A
Q 0901
VS2SC2412KQ-1
TRT 2SC2412 ROHM
S AA
AA
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
0902
0903
0904
0905
0906
0907
0908
0909
0912
1603
1604
5405
5406
5407
5408
5410
5411
5412
VS2SC2412KQ-1
VS2SA1037KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SA1037KQ-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SA1037KQ-1
RH-TX0218BMZZ
VS2SC2412KQ-1
VS2SA1037KQ-1
VS2SC2412KQ-1
VS2SA1037KQ-1
VS2SA1837//-1
VS2SC4793//-1
VS2SC2412KQ-1
VS2SC2412KQ-1
VS2SA1037KQ-1
TRT 2SC2412 ROHM
TRT BC807 SMD
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT BC807 SMD
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT BC807 SMD
TRT BC337-40 PHILIPS
TRT 2SC2412 ROHM
TRT BC807 SMD
TRT 2SC2412 ROHM
TRT BC807 SMD
TRT A1837 TOSHIBA
TRT C4793 TOSHIBA
TRT 2SC2412 ROHM
TRT 2SC2412 ROHM
TRT BC807 SMD
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AE
AE
AA
AA
AA
D
D
D
D
D
D
D
D
D
D
1607
1804
1805
1809
5403
5404
5405
5410
5411
5412
RH-EX0537BMZZ
RH-DX0505BMZZ
RH-EX0554BMZZ
RH-DX0501BMZZ
RH-DX0551BMZZ
RH-DX0501BMZZ
RH-DX0501BMZZ
RH-DX0551BMZZ
RH-DX0501BMZZ
RH-DX0501BMZZ
DIODE 1N4935
DIODE 1N4004
DIODE 1N4004
DIODE 1N4004
DIODE 1N4004
DIODE 1N4004
S
S
S
S
S
S
S
S
S
S
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AA
AE
AA
AA
AA
AA
AA
AA
AA
AA
L 1604
VP-DF470K0000
PEAK COIL 47UH 10%
S AB
AB
C
C
C
C
C
VCEAGA1CW106M
VCEAGA1CW106M
VCKYTV1HF104Z
VCKYTV1HB103K
VCEAGA1EW227M
ELEC C 10UF 20% 16V
ELEC C 10UF 20% 16V
S
S
S
S
S
AA
AA
AA
AA
AA
DIODES
COILS
CAPACITORS
AA
AA
AA
AA
AA
DESCRIPTION
1613
1801
1802
1803
1804
1805
1806
1807
1808
1809
1810
1811
1812
1813
1814
1815
1820
1821
1822
1824
1825
1830
1831
5405
5408
5409
5410
5411
5412
5413
5414
5415
5417
VCEAGA1EW227M
VCKYTV1HF104Z
VCCCTV1HH150J
VCCCTV1HH150J
VCCCTV1HH150J
VCKYTV1HF224Z
VCKYTV1HB103K
VCEAGA1CW108M
VCKYTV1HB102K
VCKYTV1HB102K
VCKYTV1HB102K
VCEAGA2EW106M
VCEAGA2EW105M
VCKYTV1HB103K
VCKYPB3DE472Z
VCKYTV1HF104Z
VCCCTV1HH220J
VCCCTV1HH220J
VCCCTV1HH220J
VCKYPA2HB472K
RC-KZ0029CEZZ
VCKYTV1HB103K
VCFYAA2EA333K
RC-FZ4224BMNJ
VCKYPA2HB472K
VCKYTV1HB472K
VCKYTV1HB103K
VCKYTV1HB103K
VCEAGA1CW107M
VCEAGA1CW107M
VCEAGA2CW226M
VCEAGA2CW226M
RC-FZ4222BMNJ
S
S
S
S
S
S
S
ELEC C 1000UF 20% 16V
S
S
S
S
S
ELEC C 1UF 20% 250V
S
S
C DE1110-1E472Z2K MURATA
S
S
S
S
S
CERAM C 4,7NF 10% 500V
S
CERAM C 10NF 80,20% 250V
S
S
POL FILM C 33NF 10% 250V
S
CERAM C 4,7NF 10% 500V
S
S
S
S
S
S
S
S
POL FILM C 2,2nF 50V 5% ECQ-B PANASOS
*
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
1615
1616
1617
1618
1619
1620
1621
1622
1623
1624
1801
1803
1804
1805
1806
1807
1808
1809
1810
1811
1812
1813
1814
1815
1816
1817
1818
1819
1820
1821
1822
1823
1824
1825
1830
1831
1832
1833
1834
1835
1836
1837
1839
1840
VRS-TV1JD105J
VRS-TV1JD333J
VRS-TV1JD222J
VRS-TV1JD104J
VRS-TV1JD473J
VRS-TV1JD103J
VRS-VV3AB101J
VRS-TV1JD223J
VRS-VV3AB101J
VRS-TV1JD101J
VRS-TV1JD221J
VRS-TV1JD750J
VRS-TV1JD101J
VRS-TV1JD102J
VRS-TV1JD221J
VRS-TV1JD391J
VRS-TV1JD750J
VRS-TV1JD101J
VRS-TV1JD102J
VRS-TV1JD221J
VRS-TV1JD391J
VRS-TV1JD750J
VRS-TV1JD101J
VRS-TV1JD102J
VRS-TV1JD221J
VRS-TV1JD122J
VRS-TV1JD122J
VRS-TV1JD122J
VRD-RA2HD823J
VRD-RA2HD823J
VRD-RA2HD823J
VRS-TV1JD222J
VRS-TV1JD222J
VRS-TV1JD222J
VRS-TV1JD472J
VRS-TV1JD102J
VRC-MA2HG681J
VRS-TV1JD102J
VRC-MA2HG681J
VRS-TV1JD102J
VRC-MA2HG681J
VRS-TV1JD225J
VRS-TV1JD100J
VRS-TV1JD822J
SN CODE
EX CODE
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AC
AA
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AC
AA
AA
AA
AC
AB
AA
AC
AA
AA
AA
AA
AB
AC
AA
AE
AB
AB
AA
AA
AA
AA
AA
AC
AC
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AB
AA
AB
AA
AA
AA
RESISTORS
TRANSISTORS
1608
1609
1610
1611
1612
PARTS
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
37
2125 1MOHM 5% 1/10W SMD
2125 33KOHM 5% 1/10W SMD
2125 2,2KOHM 5% 1/10W SMD
2125 100KOHM 5% 1/10W SMD
2125 47KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 22KOHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
2125 75 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
2125 390 OHM 5% 1/10W SMD
2125 75 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
2125 390 OHM 5% 1/10W SMD
2125 75 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 220 OHM 5% 1/10W SMD
2125 1,2KOHM 5% 1/10W SMD
2125 1,2KOHM 5% 1/10W SMD
2125 1,2KOHM 5% 1/10W SMD
RES 82KOHM 5% 1/2W
RES 82KOHM 5% 1/2W
RES 82KOHM 5% 1/2W
2125 2,2KOHM 5% 1/10W SMD
2125 2,2KOHM 5% 1/10W SMD
2125 2,2KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
SOLID R 680 OHM 5% 1/2W
2125 1KOHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 2,2MOHM 5% 1/10W SMD
2125 10 OHM 5% 1/10W SMD
2125 8,2KOHM 5% 1/10W SMD
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
70GF-63E
PARTS
DESCRIPTION
*
SN CODE
EX CODE
1841
1843
5412
5413
5414
5415
5416
5417
5418
5419
5420
5421
5422
5423
5425
5426
5428
5431
5432
5433
5434
5435
VRD-RA2BE220J
VRS-TV1JD220J
VRS-TV1JD470J
VRS-TV1JD220J
VRS-TV1JD220J
VRS-TV1JD122J
VRS-TV1JD683J
VRS-TV1JD123J
VRS-TV1JD683J
VRS-TV1JD122J
VRD-RA2EE560J
VRD-RA2EE560J
VRD-RA2EE2R7J
VRD-RA2EE2R7J
VRS-VV3AB471J
VRS-VV3DB221J
VRD-RA2EE101J
VRS-TV1JD391J
VRS-TV1JD330J
VRS-TV1JD101J
VRS-TV1JD102J
VRS-TV1JD331J
RES 22 OHM 5% 1/8W
2125 22 OHM 5% 1/10W SMD
2125 47 OHM 5% 1/10W SMD
2125 22 OHM 5% 1/10W SMD
2125 22 OHM 5% 1/10W SMD
2125 1,2KOHM 5% 1/10W SMD
2125 68KOHM 5% 1/10W SMD
2125 12KOHM 5% 1/10W SMD
2125 68KOHM 5% 1/10W SMD
2125 1,2KOHM 5% 1/10W SMD
RES 56 OHM 5% 1/4W
RES 56 OHM 5% 1/4W
RES 2,7 OHM 5% 1/4W
RES 2,7 OHM 5% 1/4W
MET FILM R 220 OHM 5% 2W
RES 100 OHM 5% 1/4W
2125 390 OHM 5% 1/10W SMD
2125 33 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
2125 1KOHM 5% 1/10W SMD
2125 330 OHM 5% 1/10W SMD
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
AA
R
R
R
R
R
R
R
J 0004
J 0005
J 0071
J 0072
J 0074
J 0075
J 0076
J 0077
J 0079
SC 1801
(B)
(H)
(K)
(MO)
(PU)
(Q)
(RT)
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRD-RA2BE102J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
VRS-TV1JD000J
QSOCV0936CEZZ
QPLGN0341CEZZ
QPLGN0541CEZZ
QPLGN0841CEZZ
QPLGN0441CEZZ
QPLGN0341CEZZ
QPLGN0341CEZZ
QPLGN0241CEZZ
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
RES 1KOHM 5% 1/8W
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
CRT SOCKET
PLUG
PLUG
PLUG
PLUG 4PIN
PLUG
PLUG
PLUG
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AA
AA
AF
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AM
AA
AA
AB
AA
AA
AA
AA
IC 1300
IC 1302
VHIBA4558F/-1
VHITDA7480/-1
IC TDA7480 THOMSON
S AA
S AF
AC
AK
Q 1301
Q 1701
VS2SC2412KQ-1
RH-TX0231BMZZ
TRT 2SC2412 ROHM
TRT 2SK2662 TOSHIBA
S AA
S AB
AA
AG
D 1303
D 1304
RH-EX0411BMZZ
RH-EX0411BMZZ
S AA
S AA
AA
AA
L 1301
L 1302
L 1303
RCILP0278BMZZ
VP-CF3R3K0000
VP-CF3R3K0000
PEAK COIL 3.3UH 10%
PEAK COIL 3.3UH 10%
S AA
S AB
S AB
AD
AB
AB
C
C
C
C
C
C
C
C
C
C
C
C
C
C
RC-FZ4334BMNJ
VCKYTV1HB102K
VCKYTV1HF104Z
VCEAGA1HW225M
VCEAGA1EW227M
VCKYTV1HF104Z
VCKYTV1HB472K
RC-FZ4104BMNJ
VCEAGA1EW227M
VCKYTV1HF104Z
VCCCTV1HH101J
VCCCTV1HH561J
RC-FZ4474BMNJ
RC-FZ4104BMNJ
S
S
S
S
S
S
S
S
S
S
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
EX CODE
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
QPLGN0685CEZZ
QPLGN0241CEZZ
QPLGN0341CEZZ
VRS-TV1JD000J
VRS-TV1JD000J
PLUG
PLUG
PLUG
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
S
S
S
S
S
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
DINAMIC FOCUS UNIT
IC 1701
RH-IX1801BMZZ
IC L6561D ST
S --
--
Q 1601
RH-TX0224BMZZ
TRT TIPC32 THOMSON
S AA
AE
D
D
D
D
1601
1701
1702
1703
RH-EX0427BMZZ
RH-DX0551BMZZ
RH-EX0558BMZZ
RH-DX0618BMZZ
ZENER DIODE BZX79C33V
DIODE BYV28 VISHAY
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AE
R
R
R
R
R
R
R
R
R
R
R
R
R
R
R
1601
1701
1702
1703
1704
1705
1706
1708
1709
1710
1711
1712
1713
1714
1715
VRD-RA2HD181J
VRS-TQ2BD154J
VRS-TQ2BD154J
VRS-TQ2BD154J
VRS-TQ2BD564J
VRS-TQ2BD564J
VRS-TQ2BD564J
VRS-TV1JD683J
VRD-RA2BE100J
VRN-VV3DBR47J
VRS-TV1JD103J
VRS-TV1JD622F
VRS-TQ2BD334F
VRS-TQ2BD334F
VRS-TQ2BD334F
RES 180 OHM 5% 1/2W
RE OX 560KOHM 5% 1/8W SMD
2125 68KOHM 5% 1/10W SMD
RES 10 OHM 5% 1/8W
MET FILM R .47 OHM 5% 2W
2125 10KOHM 5% 1/10W SMD
2125 6.2KOHM 1% 1/10W SMD
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AA
------AA
AA
-AA
-AA
AA
AA
AA
------AA
AA
-AA
-AA
AA
AA
T 1602
T 1701
RTRNZ0575BMZZ
RTRNZ0583BMZZ
CHOPPER DINAMIC FOCUS DIEMEN
CHOPPER PFC
S AG
S AD
AS
AM
C
C
C
C
C
C
C
C
C
RC-KZ0052CEZZ
RC-KZ0052CEZZ
RC-FZ0186BMZZ
RC-FZ4103BMNJ
VCEAGA1EW226M
RC-KZ0035CEZZ
VCKYTV1CF105Z
VCKYTV1HB103K
RC-FZ0186BMZZ
CERAM C 1000PF 2KV MURATA
S
CERAM C 1000PF 2KV MURATA
S
C 22NF 630V 222237514223 PHILIPS
S
ELEC C 22UF 20% 25V
S
CERAM C 220PF 2KV
S
S
S
C 22NF 630V 222237514223 PHILIPS
S
QPLGN0241CEZZ
QPLGN0505CEZZ
QPLGN0505CEZZ
RVR-Z0001BMZZ
PLUG
PLUG
PLUG
VAR-RESISTOR POT 8222 419 34301
DIODES
RESISTORS
TRANSFORMERS
!
CAPACITORS
COILS
CAPACITORS
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AB
AA
AA
AA
AA
AA
AA
AA
AA
AC
AA
S AA
S AA
S AA
1601
1603
1701
1702
1703
1704
1705
1706
1707
AA
AA
AA
AA
AA
AA
AA
AA
AA
AC
AC
AD
AA
AA
AC
AB
AA
AD
AA
AA
AA
AR
AA
AB
AB
BC
S AC
S AC
AC
AC
S
S
S
S
S
AA
AA
AA
AA
AA
MISCELLANEOUS PARTS
(EW)
(F)
(FF)
!
PWB-E
S
S
S
S
FRONTAL POWER SWITCH UNIT
DIODES
D 6751
D 6752
RH-PX0105BMZZ
RH-PX0105BMZZ
R
R
R
R
R
VRD-RA2HD124J
VRD-RA2HD124J
VRS-TV1JD101J
VRS-TV1JD101J
VRD-RA2BE332J
LED SPB-25MVW ROHM
LED SPB-25MVW ROHM
RESISTORS
RESISTORS
2125 12KOHM 5% 1/10W SMD
2125 12KOHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
SN CODE
TRANSISTORS
DIODES
VRS-TV1JD123J
VRS-TV1JD123J
VRS-TV1JD000J
*
S
S
S
S
S
S
S
INTEGRATED CIRCUITS
TRANSISTORS
R 1301
R 1302
R 1304
DESCRIPTION
2125 15KOHM 5% 1/10W SMD
2125 10KOHM 5% 1/10W SMD
2125 27KOHM 5% 1/10W SMD
2125 47KOHM 5% 1/10W SMD
2125 4.7KOHM 5% 1/10W SMD
2125 12KOHM 5% 1/10W SMD
2125 150 OHM 5% 1/10W SMD
PWB-D
INTEGRATED CIRCUITS
1302
1303
1304
1305
1306
1307
1308
1309
1310
1311
1312
1313
1314
1315
PARTS
VRS-TV1JD153J
VRS-TV1JD103J
VRS-TV1JD273J
VRS-TV1JD473J
VRS-TV1JD472J
VRS-TV1JD123J
VRS-TV1JD151J
MISCELLANEOUS PARTS
(SB)
(SF)
(VS)
JF 0001
JF 0002
MISCELLANEOUS PARTS
!
1307
1308
1309
1310
1311
1312
1313
AA
AA
AA
38
6701
6702
6738
6739
6751
RES 120KOHM 5% 1/2W
RES 120KOHM 5% 1/2W
2125 100 OHM 5% 1/10W SMD
2125 100 OHM 5% 1/10W SMD
RES 3,3KOHM 5% 1/8W
AA
AA
AA
AA
AA
70GF-63E
PARTS
DESCRIPTION
C 6715
VCKYTV1CF105Z
F 6701
LP 6701
M 6701
S 6701
S 6702
S 6703
S 6704
S 6705
QFS-C3226CEZZ
RLAMP0001BMZZ
RRMCU0203BMZZ
QSW-P0600BMZZ
QSW-K0079GEZZ
QSW-K0079GEZZ
QSW-K0079GEZZ
QSW-K0079GEZZ
QFSHD1001BMZZ
QFSHD1002BMZZ
QPLGN0207CEZZ
QPLGN0304CEZZ
QPLGN0341CEZZ
QPLGN0341CEZZ
QPLGN0341CEZZ
QPLGN0341CEZZ
QPLGN0341CEZZ
FUSE T3.15AH 250V
NEON TYPE 4/30HB NEOTRONIC
R/C RECEIVER TS0P1738 TFK
SWITCH S40 3110432713 GDE
TACTILE SWITCH
TACTILE SWITCH
TACTILE SWITCH
TACTILE SWITCH
FUSE HOLD.EYF52BC=PANASON
FUSE HOLD.EYF52BC=PANASON
PLUG
PLUG
PLUG
PLUG
PLUG
PLUG
PLUG
*
SN CODE
2
EX CODE
CAPACITORS
S AA
AB
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
S
AC
AB
AD
AF
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AE
AC
AG
AL
AA
AA
AA
AA
AA
AA
AA
AB
AA
AA
AA
AA
AA
S AB
S AB
AB
AB
S
S
S
S
S
S
S
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
MISCELLANEOUS PARTS
!
!
(A)
(M)
(OPC)
(RC)
(ST)
(SW1)
(SW2)
PWB-F
1
1.1 1.4 1.6
1.3 1.2
FRONTAL A/V UNIT
COILS
L 0317
L 0318
VP-DF3R3K0000
VP-DF3R3K0000
PEAK COIL 3,3UH 10%
PEAK COIL 3,3UH 10%
C
C
C
C
R
R
R
0336
0337
0428
0429
0316
0317
0449
VCKYTV1HF103Z
VCKYTV1HF103Z
VCKYTV1HB102K
VCKYTV1HB102K
VRS-TV1JD391J
VRS-TV1JD391J
VRD-RA2EE750J
2125 390 OHM 5% 1/10W SMD
2125 390 OHM 5% 1/10W SMD
RES 75 OHM 5% 1/4W
(CC)
(CC)
(FV)
(FV)
(HD)
(HD)
(SS)
(SS)
JF 0001
JF 0003
J 0401
CN4
QCNW-2801BMZZ
QPLGN0241CEZZ
QCNW-2825BMZZ
QPLGN0241CEZZ
QCNW-2849BMZZ
QPLGN0341CEZZ
QCNW-2792BMZZ
QPLGN0341CEZZ
VRS-TV1JD000J
VRS-TV1JD000J
QJAKZ0015CEZZ
QJAKJ0047CEZZ
WIRE 2 WAYS (CC)
PLUG
WIRE (FV) 2 WAYS
PLUG
WIRE 3 WAYS HD
PLUG
WIRE 3 WAYS (SS)
PLUG
2125 0 OHM 5% 1/10W SMD
2125 0 OHM 5% 1/10W SMD
JACK
EARPHONE JACK HSJ0998-72
S
S
S
S
S
S
S
S
S
S
S
S
AB
AA
AB
AA
AA
AA
AB
AA
AA
AA
AH
AA
AF
AA
AF
AA
AE
AA
AE
AA
AA
AA
AM
AG
QACCZ2100BMSA
RRMCG1073BMSA
VSP1206PB437A
TINS-6858BMN0
LCHSM1011BMZZ
RCORF2064SCZZ
QCNW-2851BMZZ
QCNW-2853BMZZ
QCNW-2856BMZZ
RCILG0422CEZZ
AC CORD
S
R/C FLAT 50HZ MODEL HOSHIDEN
S
SPEAKER 7 OHM 12W DAIWA
S
OWNERS MANUAL 70GF63E
S
CHASSIS FRAME
S
FERRIT TRA31
S
DEFLECTION WIRE CRT 322 FLAT PHILIP S
SVM WIRE CRT 32" FLAT PHILIPS
S
SUPPLY WIRE CRT 32" FLAT 50Hz PHILIP S
ROTATATION COIL 28-32" KURODA
S
AH
-AE
-AD
AC
AC
AA
AA
AE
AR
-AP
-AL
AE
AH
AE
AE
AN
CCABA1308BMV0
GDORF1059BMSA
PKAI-1083BM00
HINDP5118BMSA
HBDGB3141CESA
HDECQ0062BMSA
HDECQ0063BMSA
JBTN-1075BMSA
JBTN-1076BMSA
GCABB1115BMKA
CABINET SET 70GF63E
DOOR
DOOR RATCH
INDICATOR
SHARP BADGE
LED DECORATION
R/C DECORATION
UP/DOW BUTTON
POWER BUTTON
REAR CABINET 70GF67E
BB
AA
AC
AA
AB
AA
AA
AA
AA
AT
BR
AE
AF
AE
AG
AC
AC
AD
AC
BE
CAPACITORS
MISCELLANEOUS PARTS
MISCELLANEOUS PARTS
!
(K1)
(FF)
(PU)
(Q)
CABINET PARTS
!
1
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
2
S
S
S
S
S
S
S
S
S
S
39
1.8
1.7 1.5
37GQ-20FP
RECYCLED PAPER
PRINTED BY:
22
ON:

70GF-63E Service Manual 00 Version

Transcription

Documents pareils

(D01Z-06 sans repère.xls)

Spare Parts Catalogue Catalogue de pièces de
