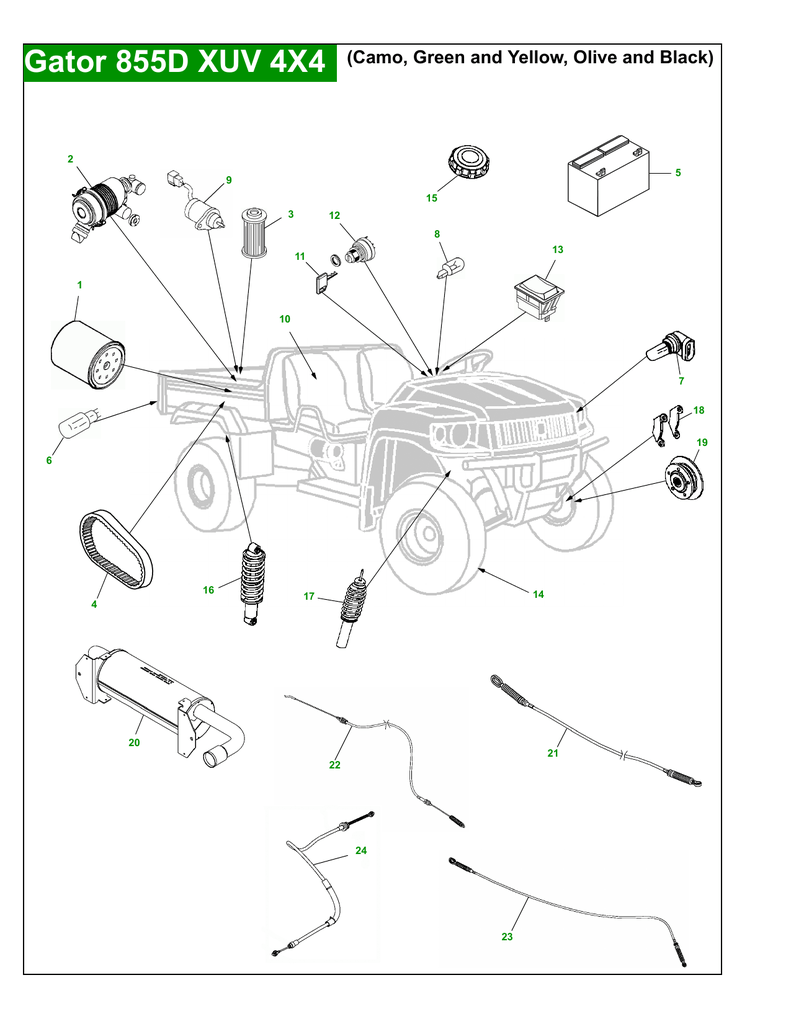

Gator 855D XUV 4X4
(Camo, Green and Yellow, Olive and Black)
2
5
9
15
3
12
8
13
11
1
10
7
18
19
6
16
4
14
17
20
21
22
24
2325
part
no.
key
1
2
description
key
M806418...........OIL FILTER
M113621...........AIR FILTER ELEMENT - PRIMARY
M123378...........AIR FILTER ELEMENT - SECONDARY
M801101...........FUEL FILTER ELEMENT
M158189...........BELT - DRIVE
MIU800679 .......BELT - FAN
TY25881 ...........BATTERY
R133302 ...........BULB - DUAL FILAMENT
R133301 ...........BULB - SINGLE FILAMENT
57M10180.........BULB - FRONT AMBER
R136239 ...........BULB - HEADLIGHT
AR62407...........BULB - INSTRUMENT PANEL
M806808...........FUEL SHUTOFF SOLENOID
AM138194 ........SEAT - YELLOW
AM138195 ........SEAT - BLACK
AM131841 ........KEY
TCA15075 ........IGNITION SWITCH
VGA10925 ........ROCKER SWITCH - HEADLIGHT
M158356...........TIRE - FRONT (26X9-12)
M158357...........TIRE - REAR (26X11-12)
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
part
no.
description
M158358 .......... TIRE - FRONT (25X9 -12) (ALL PURPOSE)
M158359 .......... TIRE - REAR (25X11-12) (ALL PURPOSE)
M159741 .......... TIRE - REAR (27X9-14)
M159742 .......... TIRE - REAR (27X11-14)
VGA10892........ FILLER CAP
AM137814 ........ SHOCK - REAR
AM140234 ........ SHOCK - PERFORMANCE - REAR
AM137815 ........ SHOCK - FRONT
AM140232 ........ SHOCK - PERFORMANCE - LEFT FRONT
AM140233 ........ SHOCK - PERFORMANCE - RIGHT FRONT
AM140607 ........ BRAKE KIT - FRONT - INCLUDES 4 PADS
AM141182 ........ BRAKE KIT - REAR - INCLUDES 4 PADS
M158242 .......... ROTOR
AM140802 ........ MUFFLER
M811809........... GASKET
AM136236 ........ CABLE - THROTTLE
AM141669 ........ CABLE - DIFFERENTIAL LOCK
AM141668 ........ CABLE - DIFFERENTIAL INTERLOCK
AM141665 ........ CABLE - PARK BRAKE
“
Parts Needed in First 250 hours of Operation
Qty
2
1
3
Part No
M806418
TY22061
TY6341
Item
Capacity
Interval In Hours
Engine Oil Filter
2 1/2 gal JD Plus 50 15W40 Engine Oil
Multi Purpose SD Polyurea Grease (14 oz)
2.3 qt
50/200
50/200
As Needed
"As Needed" Parts
Qty
1
1
1
1
1
1
1
1
Part Number
Item
M113621
M123378
M801101
M158189
MIU800679
AM131841
VGA10892
TY26183
Air Filter - Primary
Air Filter - Secondary
Fuel Filter
Belt - Drive (4WD)
Belt - Fan
Key
Filler Cap
Grease Gun
