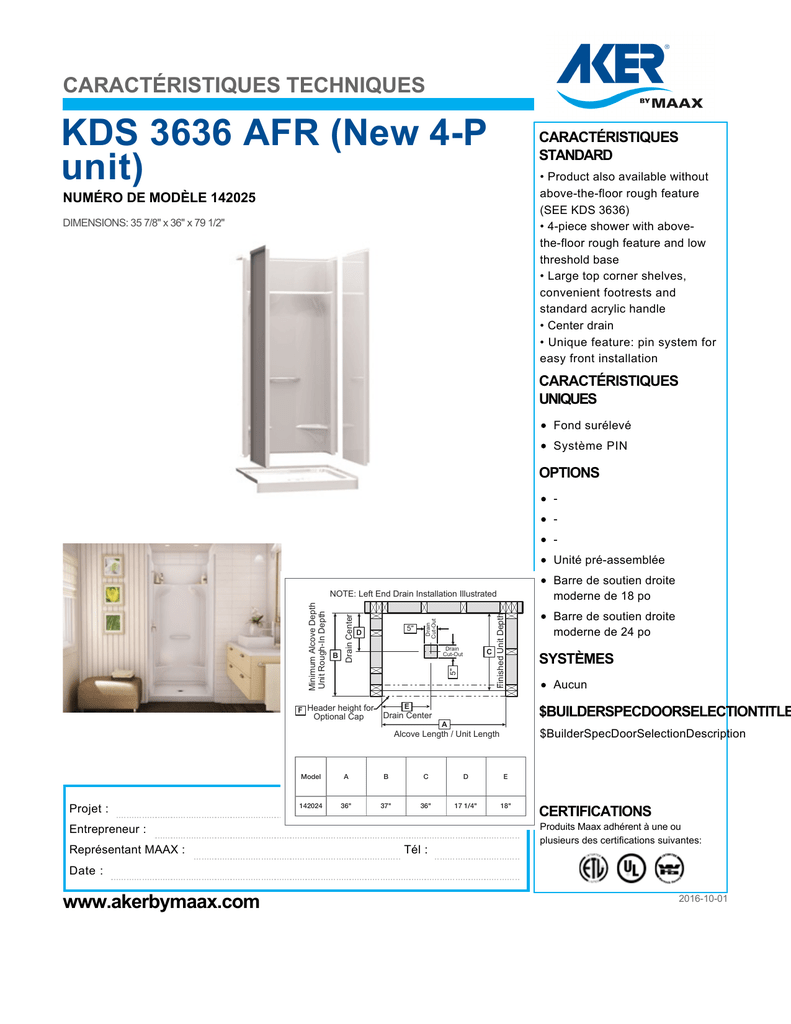

KDS 3636 AFR (New 4-P unit)

CARACTÉRISTIQUES TECHNIQUES
KDS 3636 AFR (New 4-P
unit)
CARACTÉRISTIQUES
STANDARD
• Product also available without
above-the-floor rough feature
(SEE KDS 3636)
• 4-piece shower with abovethe-floor rough feature and low
threshold base
• Large top corner shelves,
convenient footrests and
standard acrylic handle
• Center drain
• Unique feature: pin system for
easy front installation
NUMÉRO DE MODÈLE 142025
DIMENSIONS: 35 7/8" x 36" x 79 1/2"
CARACTÉRISTIQUES
UNIQUES
Fond surélevé
Système PIN
OPTIONS
Unité pré-assemblée
Barre de soutien droite
moderne de 18 po
Drain
Cut-Out
C
F Header height for
Optional Cap
Finished Unit Depth
Drain
Cut-Out
5"
D
5"
B
Drain Center
Minimum Alcove Depth
Unit Rough-In Depth
NOTE: Left End Drain Installation Illustrated
E
Drain Center
Représentant MAAX :
A
B
C
D
E
142024
36"
37"
36"
17 1/4"
18"
Tél :
Aucun
$BuilderSpecDoorSelectionDescription
Model
Entrepreneur :
SYSTÈMES
$BUILDERSPECDOORSELECTIONTITLE
A
Alcove Length / Unit Length
Projet :
Barre de soutien droite
moderne de 24 po
CERTIFICATIONS
Produits Maax adhérent à une ou
plusieurs des certifications suivantes:
Date :
www.akerbymaax.com
2016-10-01
CARACTÉRISTIQUES TECHNIQUES
KDS 3636 AFR (New 4-P
unit)
NUMÉRO DE MODÈLE 142025
DESSINS TECHNIQUES
REINFORCEMENT BACKING
35 7/8"
17 1/4"
36"
37"
4 7/8"
24 3/8"
OPTION 20198 SHOWN
OPTION 20197 SYMMETRICAL
18"
22"
37"
17 1/8"
11 5/8"
1"
1"
DOOR OPENING
1"
1"
12 3/4"
72 5/8" MAX DOOR HEIGHT
3"
NOT ABOVE-THE-FLOOR
4 3/8"
3/4"
3 3/8"
ABOVE-THE-FLOOR
6 7/8"
8 3/8"AFR
OPTION 20199
7 7/8"
22"
4 1/4"
GRAB BARS
OPTION 20203
AFR
18 7/8"
15 3/8"
12 1/4"
30"
62 5/8"
77"
80 1/2" AFR
1"
4 7/8"
37"
3 1/2"
32 1/2"
70"
STANDARD
OPTION 20204
23"
18"
All dimensions are approximate. Structure measurements
must be verified against the unit to ensure proper fit.
24"
29"
31 3/8"
34 3/8"
36"
18"
23"
OPTION
20203-20204
5 1/2"
2016-10-01
