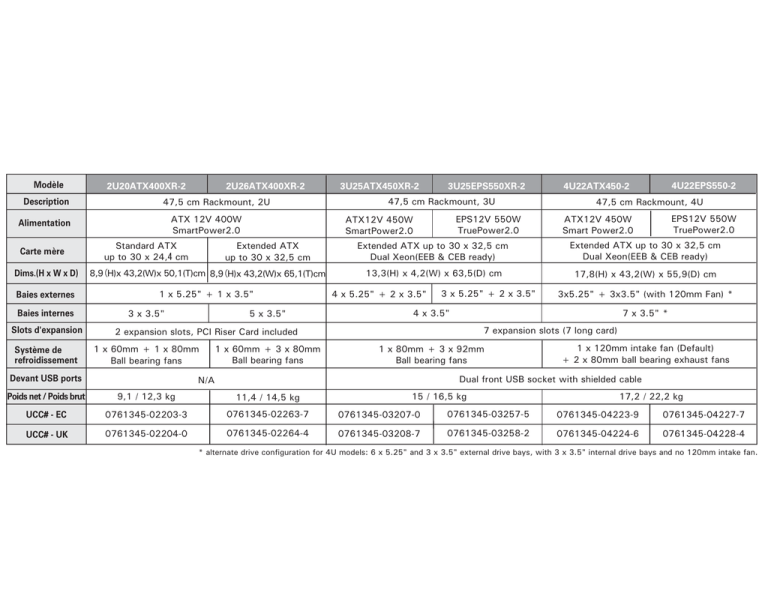

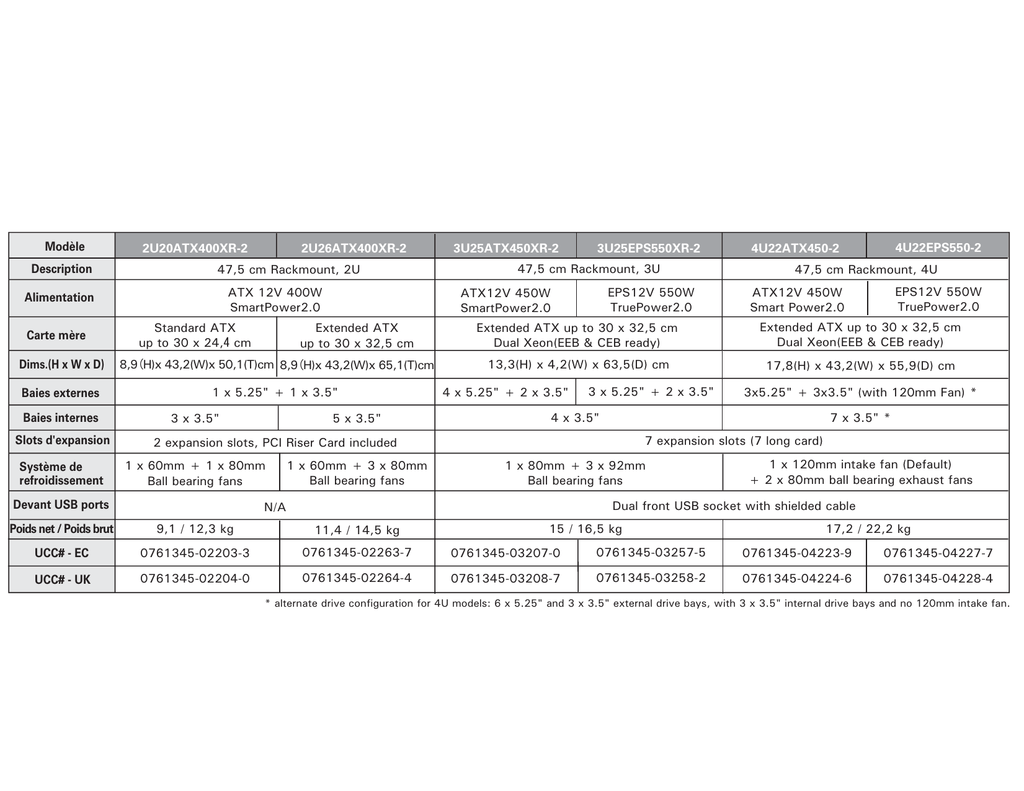

Modèle Description Alimentation Carte mère Dims.(H x W x D)

Modèle Description Alimentation Carte mère Dims.(H x W x D)

Modèle
Description
47,5 cm Rackmount, 2U
ATX 12V 400W
SmartPower2.0
Alimentation
Carte mère
2U26ATX400XR-2
2U20ATX400XR-2
Standard ATX
up to 30 x 24, cm
Extended ATX
up to 30 x 32,5 cm
8,9
H)x 43,2(W)x 50,1(T)cm 8,9
H)x 43,2(W)x 65,1(T)cm
Baies externes
1 x 5.25" + 1 x 3.5"
Slots d'expansion
Système de
refroidissement
5 x 3.5"
3 x 3.5"
3U25EPS550XR-2
47,5 cm Rackmount, 3U
EPS12V 550W
TruePower2.0
ATX12V 450W
SmartPower2.0
Dims.(H x W x D)
Baies internes
3U25ATX450XR-2
Devant USB ports
1 x 60mm + 3 x 80mm
Ball bearing fans
47,5 cm Rackmount, 4U
EPS12V 550W
TruePower2.0
ATX12V 450W
Smart Power2.0
Extended ATX up to 30 x 32,5 cm
Dual Xeon(EEB & CEB ready)
Extended ATX up to 30 x 32,5 cm
Dual Xeon(EEB & CEB ready)
13,3(H) x 4,2(W) x 63,5(D) cm
17,8(H) x 43,2(W) x 55,9(D) cm
4 x 5.25" + 2 x 3.5"
3 x 5.25" + 2 x 3.5"
3x5.25" + 3x3.5" (with 120mm Fan) *
4 x 3.5"
7 x 3.5" *
7 expansion slots (7 long card)
2 expansion slots, PCI Riser Card included
1 x 60mm + 1 x 80mm
Ball bearing fans
4U22EPS550-2
4U22ATX450-2
1 x 80mm + 3 x 92mm
Ball bearing fans
1 x 120mm intake fan (Default)
+ 2 x 80mm ball bearing exhaust fans
Dual front USB socket with shielded cable
N/A
Poids net / Poids brut
9,1 / 12,3 kg
11,4 / 14,5 kg
UCC# - EC
0761345-02203-3
0761345-02263-7
0761345-03207-0
0761345-03257-5
0761345-04223-9
0761345-04227-7
UCC# - UK
0761345-02204-0
0761345-02264-4
0761345-03208-7
0761345-03258-2
0761345-04224-6
0761345-04228-4
15 / 16,5 kg
17,2 / 22,2 kg
* alternate drive configuration for 4U models: 6 x 5.25" and 3 x 3.5" external drive bays, with 3 x 3.5" internal drive bays and no 120mm intake fan.
