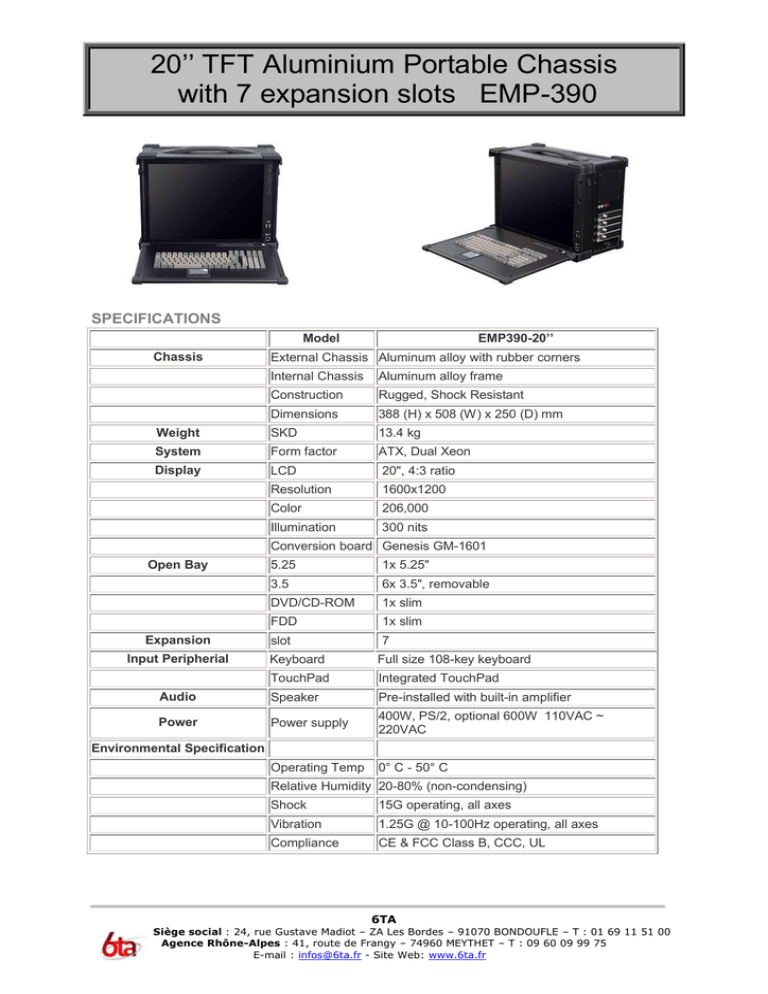

20`` TFT Aluminium Portable Chassis with 7 expansion slots

20`` TFT Aluminium Portable Chassis with 7 expansion slots

20’’ TFT Aluminium Portable Chassis
with 7 expansion slots EMP-390
SPECIFICATIONS
Model
Chassis
EMP390-20’’
External Chassis Aluminum alloy with rubber corners
Internal Chassis
Aluminum alloy frame
Construction
Rugged, Shock Resistant
Dimensions
388 (H) x 508 (W) x 250 (D) mm
Weight
SKD
13.4 kg
System
Form factor
ATX, Dual Xeon
Display
LCD
20", 4:3 ratio
Resolution
1600x1200
Color
206,000
Illumination
300 nits
Conversion board Genesis GM-1601
Open Bay
Expansion
Input Peripherial
5.25
1x 5.25"
3.5
6x 3.5", removable
DVD/CD-ROM
1x slim
FDD
1x slim
slot
7
Keyboard
Full size 108-key keyboard
TouchPad
Integrated TouchPad
Audio
Speaker
Pre-installed with built-in amplifier
Power
Power supply
400W, PS/2, optional 600W 110VAC ~
220VAC
Operating Temp
0° C - 50° C
Environmental Specification
Relative Humidity 20-80% (non-condensing)
Shock
15G operating, all axes
Vibration
1.25G @ 10-100Hz operating, all axes
Compliance
CE & FCC Class B, CCC, UL
6TA
